Powertrain Control Module (Gas) Connector End View (C1)

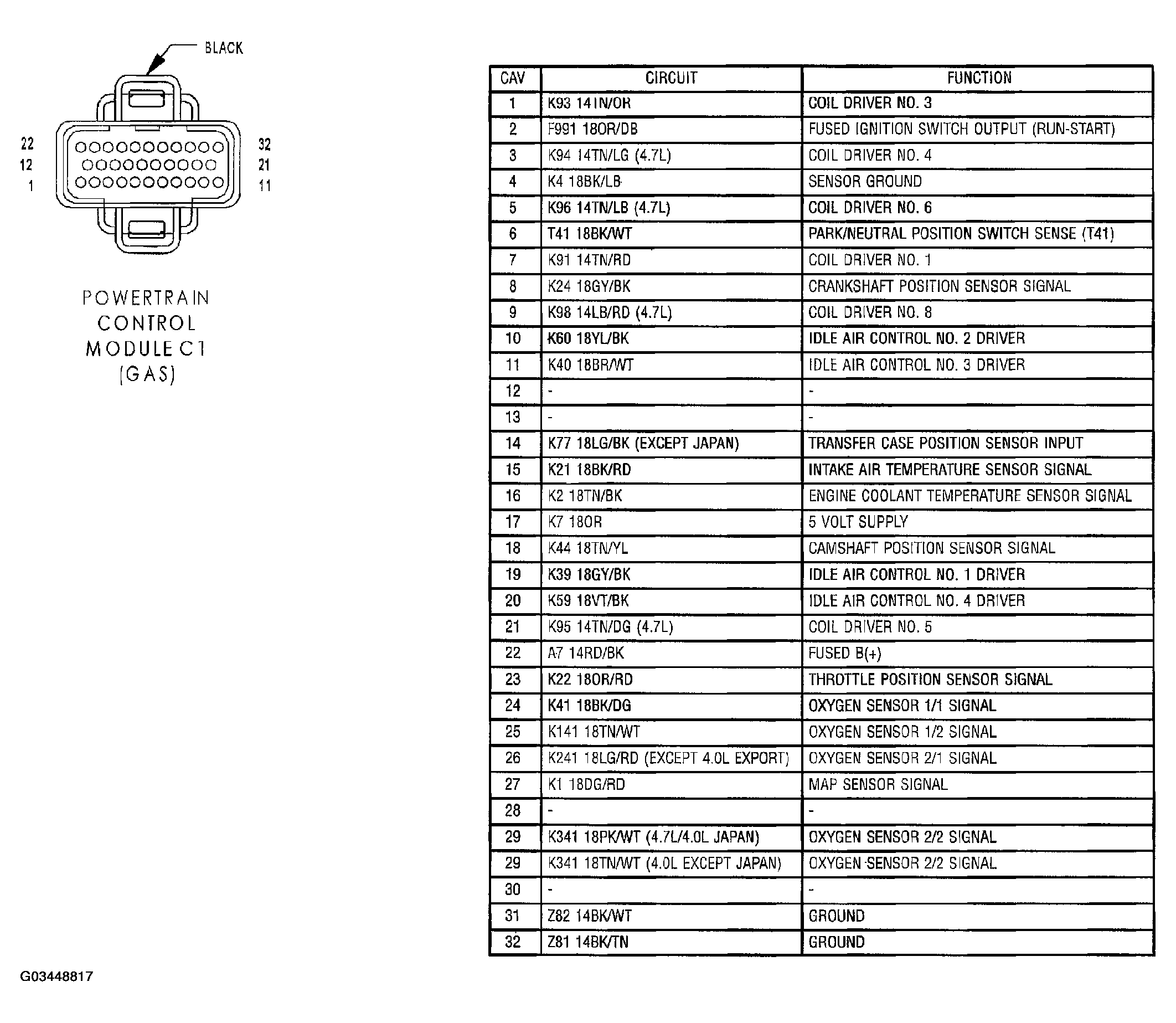

Fig 1: Powertrain Control Module (Gas) Connector End View (C1)
G03448817Courtesy of CHRYSLER GROUP, LLC
