Powertrain Control Module (Gas) Connector End View (C2)

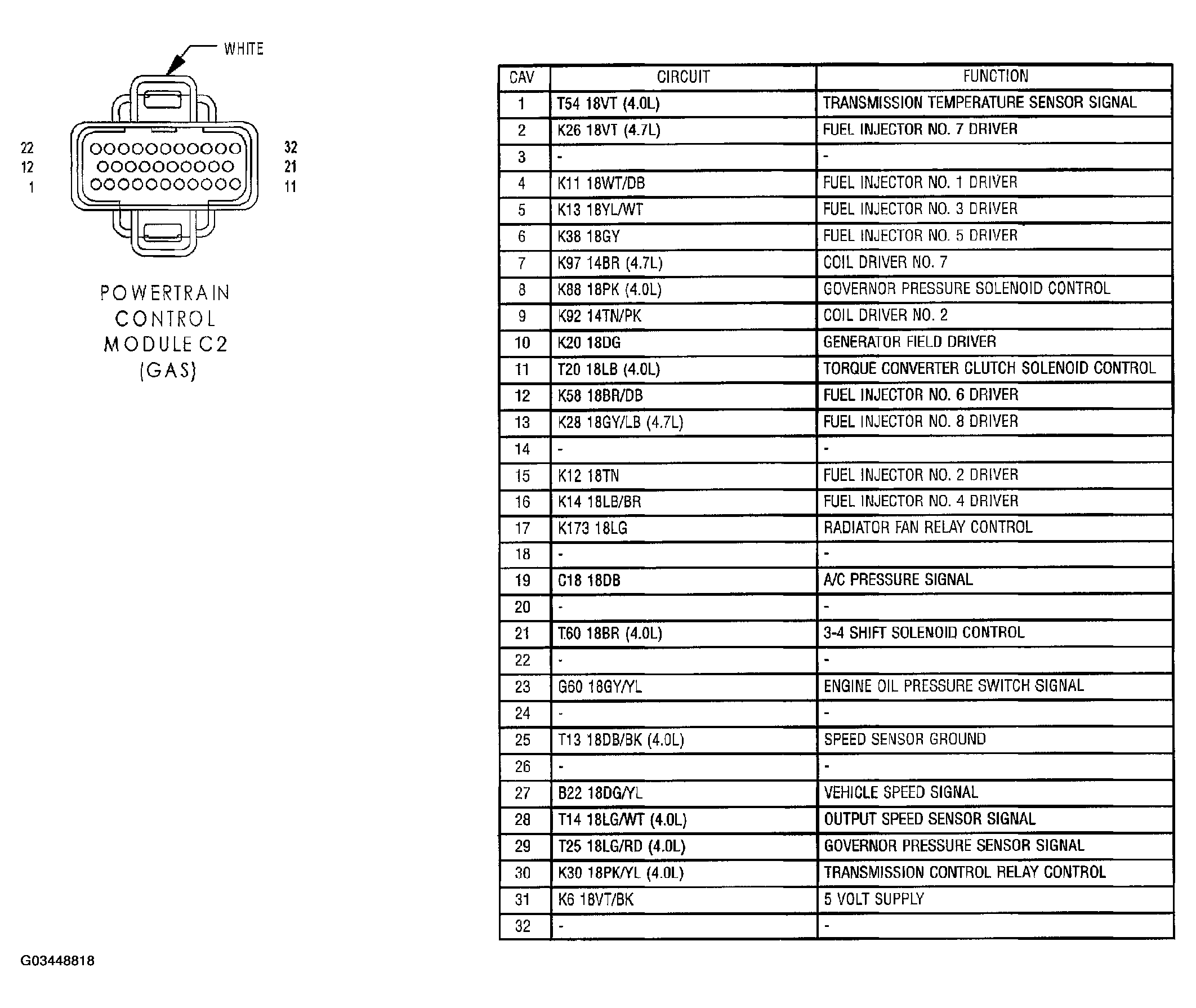

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)
G03448818Courtesy of CHRYSLER GROUP, LLC
