Diagnosis And Testing: Notes

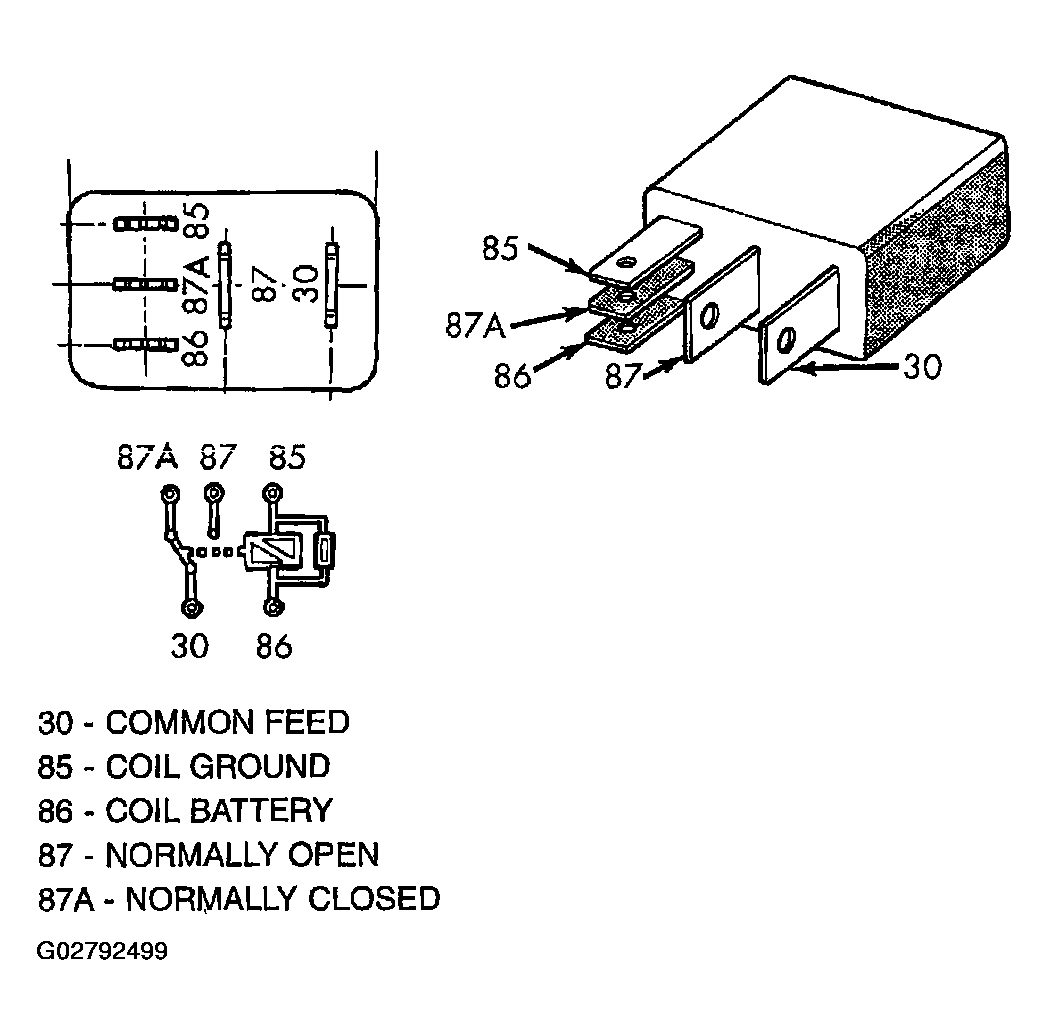

The starter relay (Fig 1 ) is located in the Power Distribution Center (PDC), in the engine compartment. Refer to the fuse and relay layout label affixed to the underside of the PDC cover for starter relay identification and location. For complete circuit diagrams, refer to SYSTEM WIRING DIAGRAMS .
