TCM Harness CONNECTOR END VIEW (4.7L

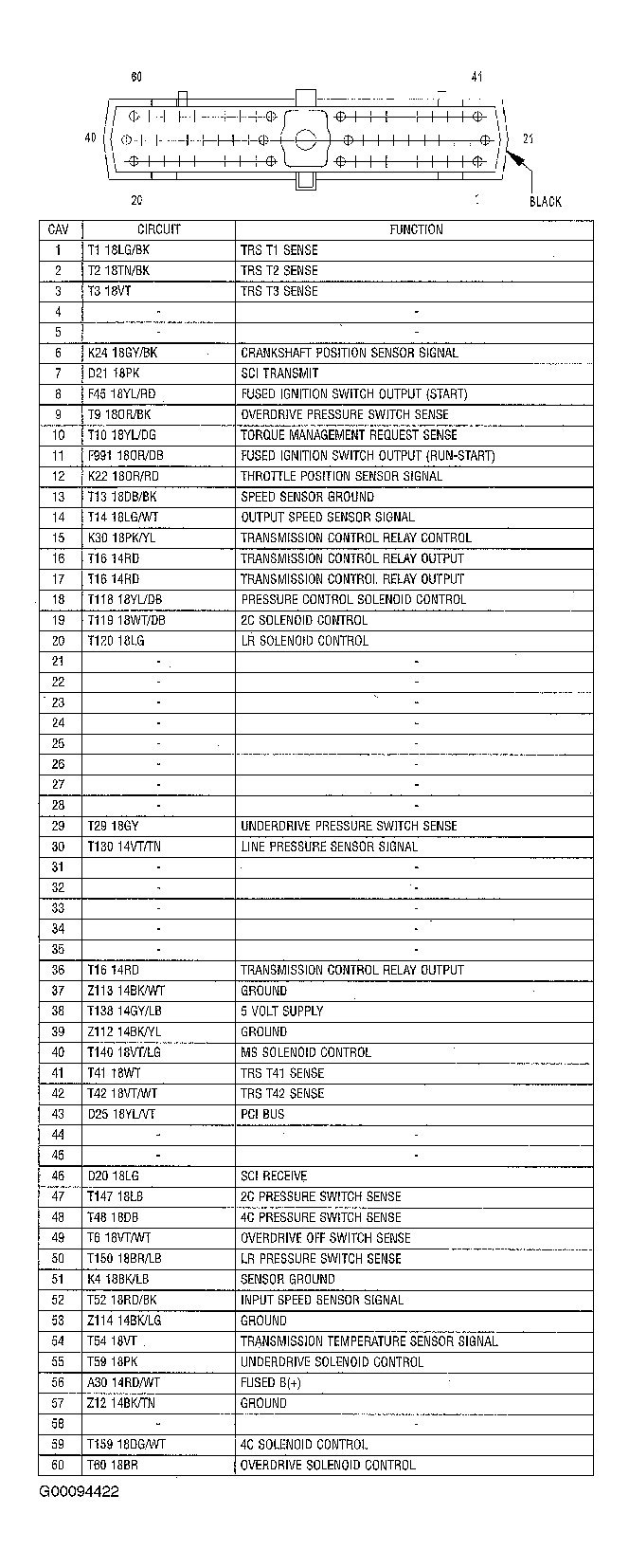

Fig 1: Identifying TCM Harness Connector (4.7L)
G00094422Courtesy of DAIMLERCHRYSLER CORPORATION
