Jeep
›
2002
›
Liberty Limited, 4WD, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
Pcm Harness Connector End View
Pcm Harness Connector End View

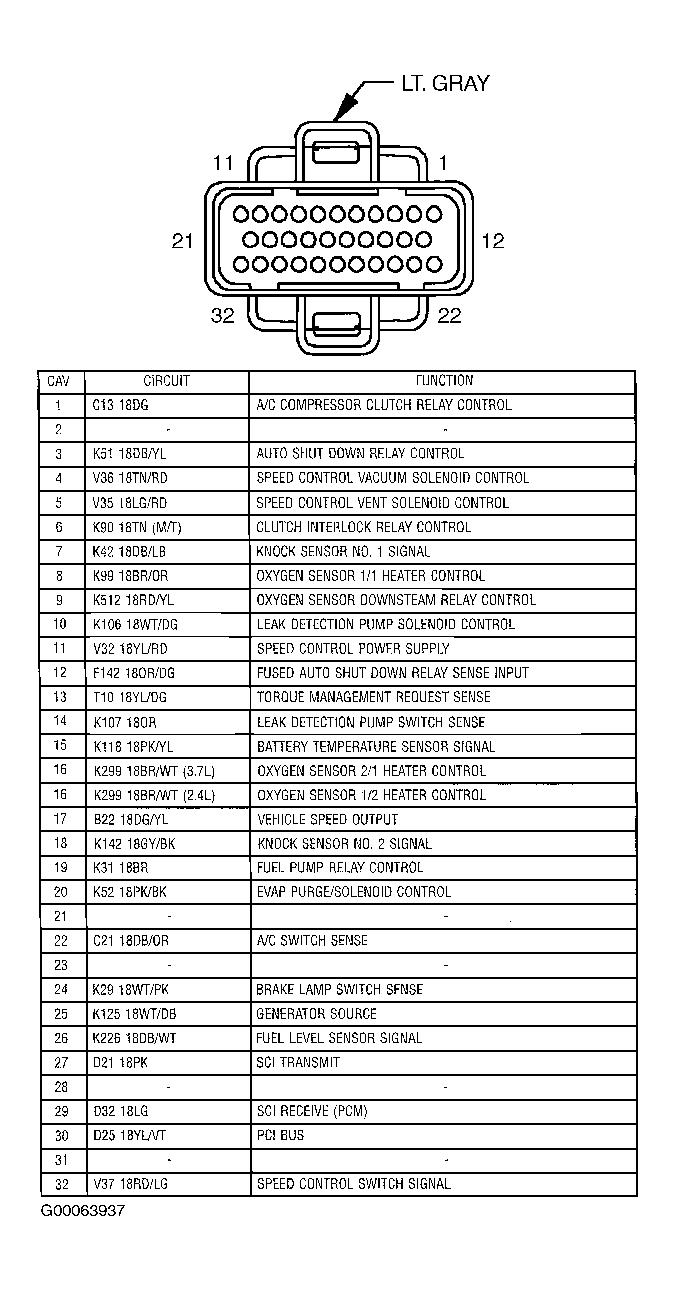

Fig 1: Identifying PCM C1 Harness Connector (2.4L)
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Identifying PCM C1 Harness Connector (3.7L)
Courtesy of DAIMLERCHRYSLER CORPORATION

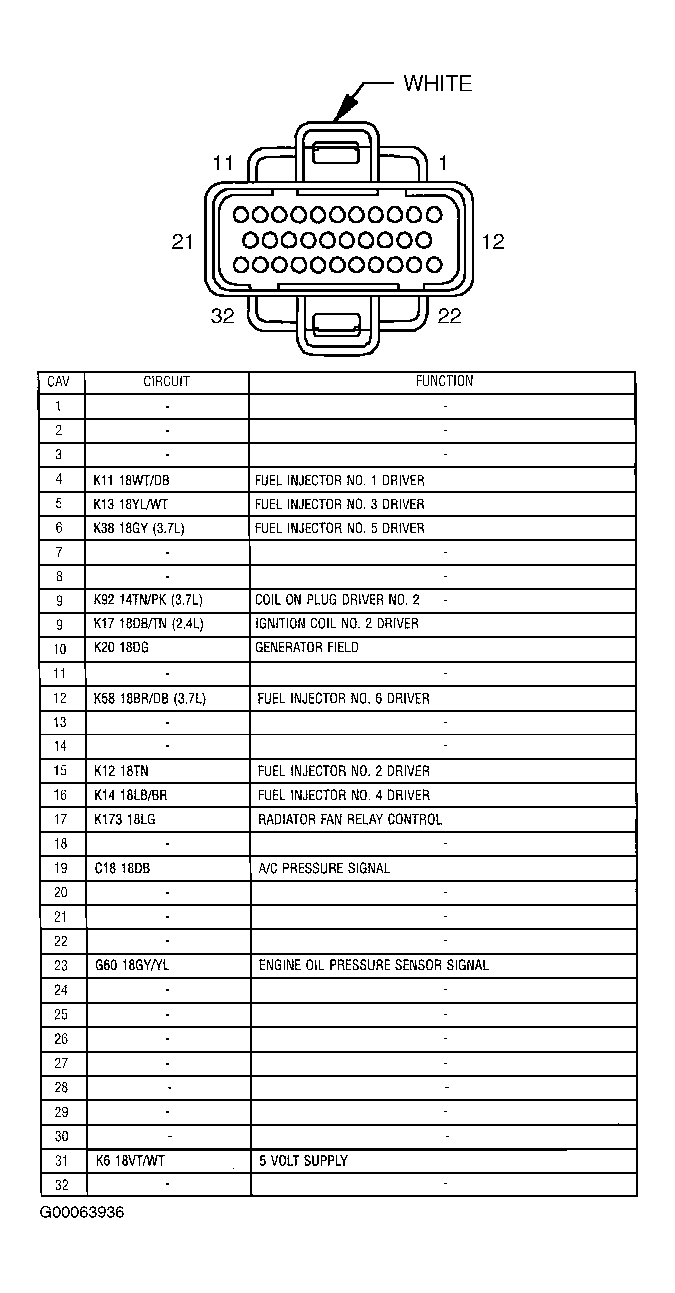

Fig 3: Identifying PCM C2 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Identifying PCM C3 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
