Junction Block Body Control Module - JB Connector End View

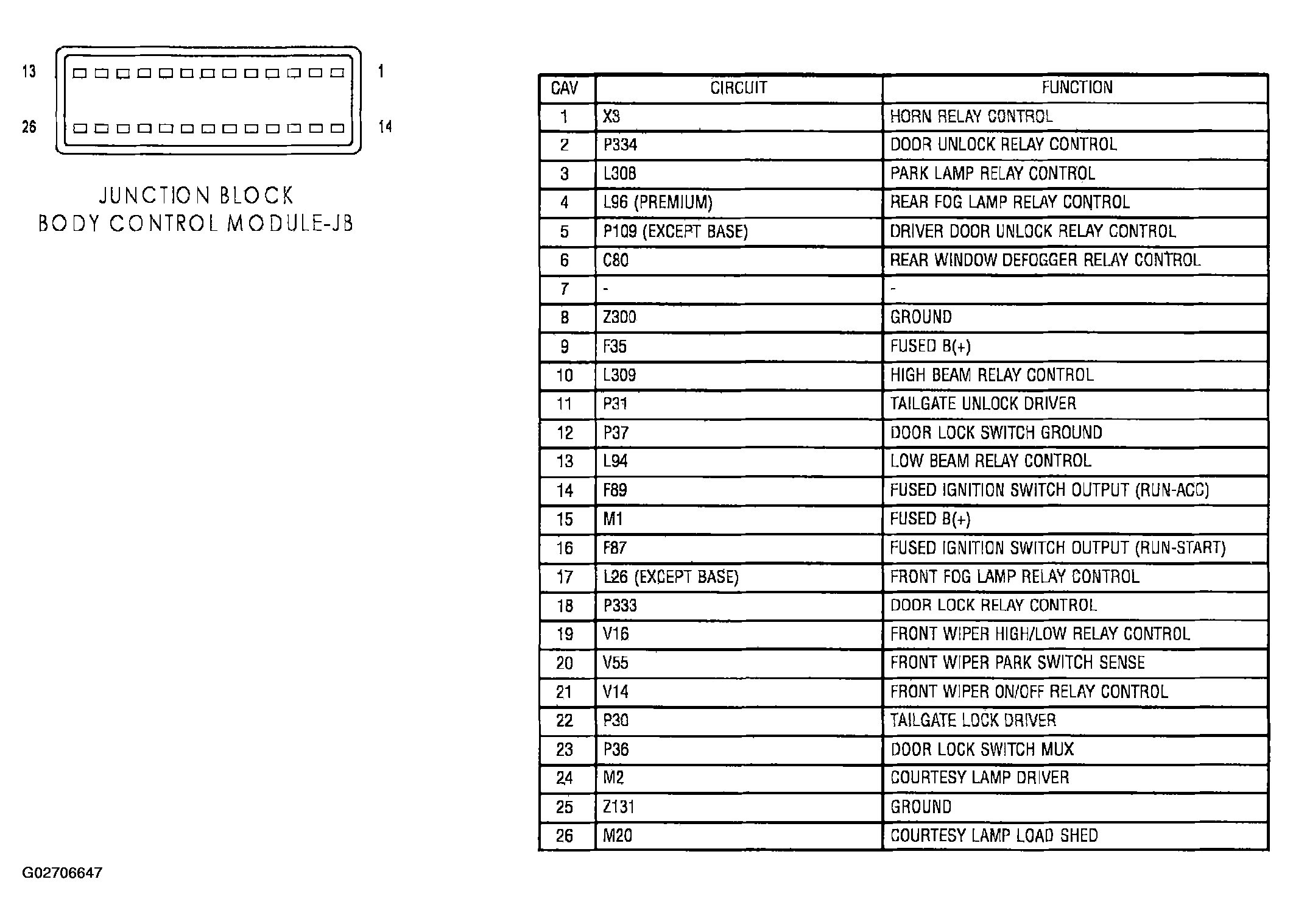

Fig 1: Junction Block Body Control Module - JB Connector End View
G02706647Courtesy of CHRYSLER GROUP, LLC
