Powertrain Control Module C3 Connector End View
Powertrain Control Module C3 Connector End View

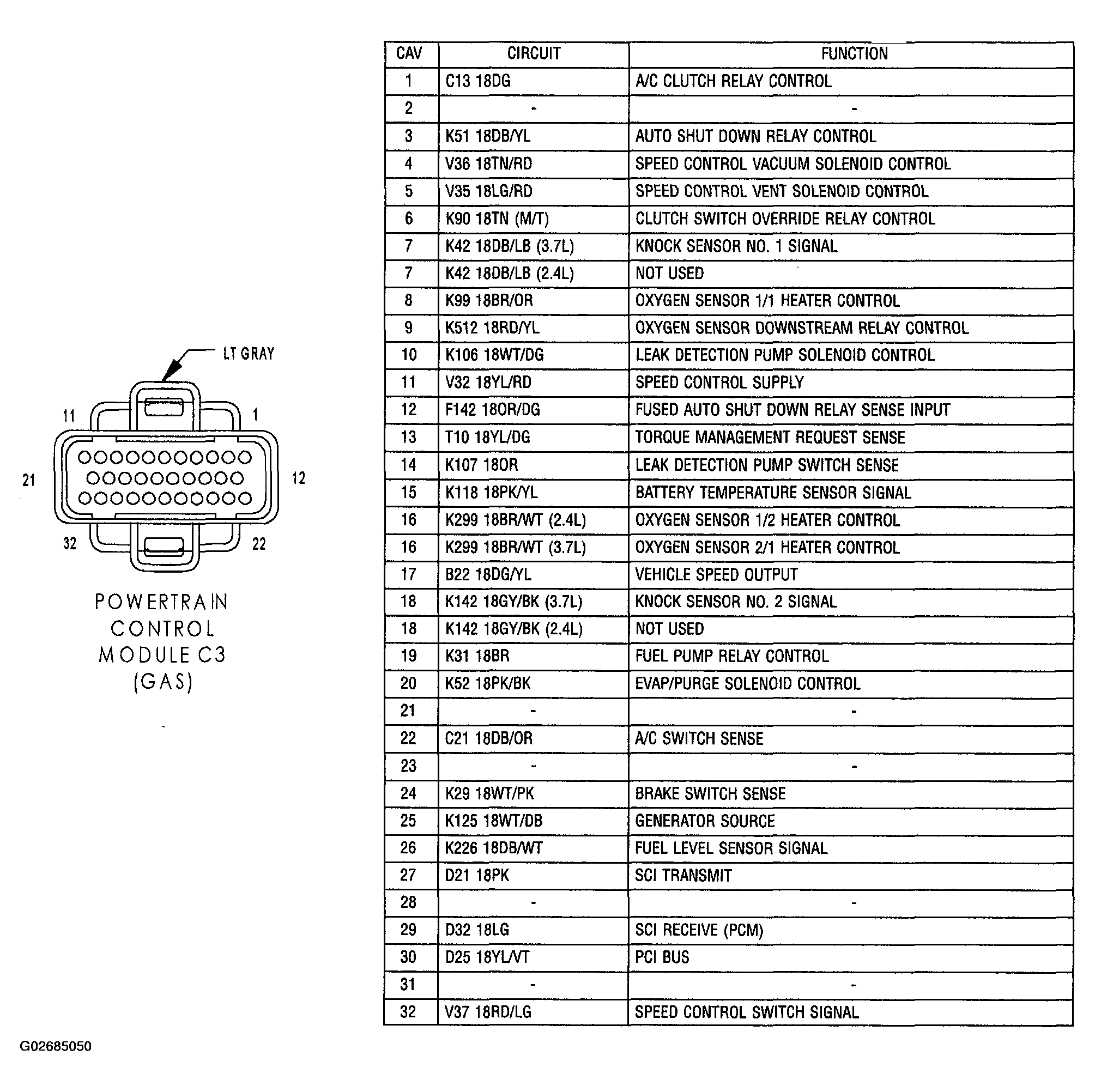

Fig 1: Powertrain Control Module C3 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
