Counter Balance Shaft Timing: Notes

  1. Ensure that the engine is at TDC with both camshaft sprocket marks are in the 12 o'clock position. See Fig 1.
  2. Look down the left cylinder gear chain cavity. The timing dot on the counter balance shaft drive gear should be in the 6 o'clock position. See Fig 2.

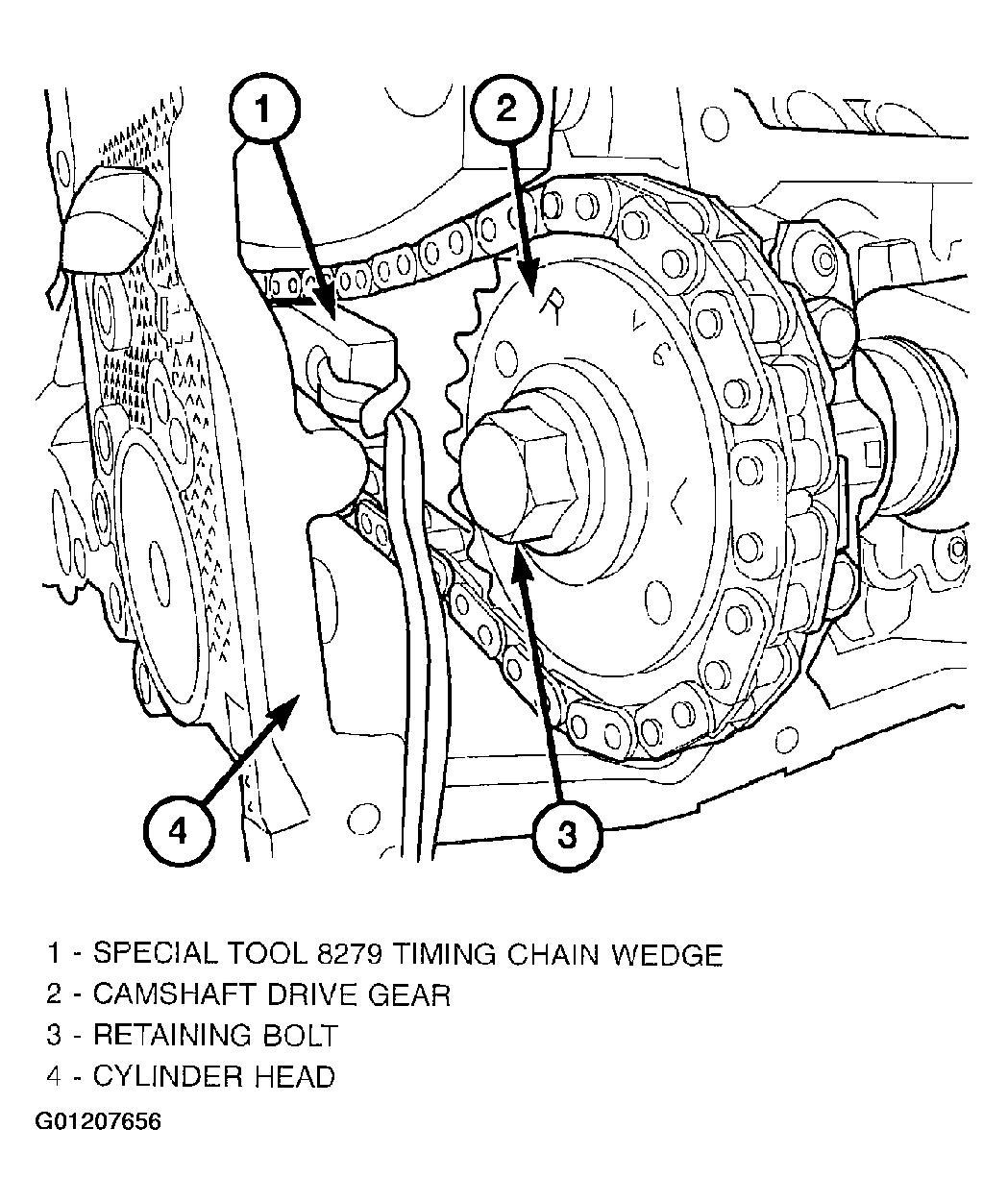

    Fig 1: Removing & Installing Camshaft Drive Gear
    G01207656Courtesy of DAIMLERCHRYSLER CORP.

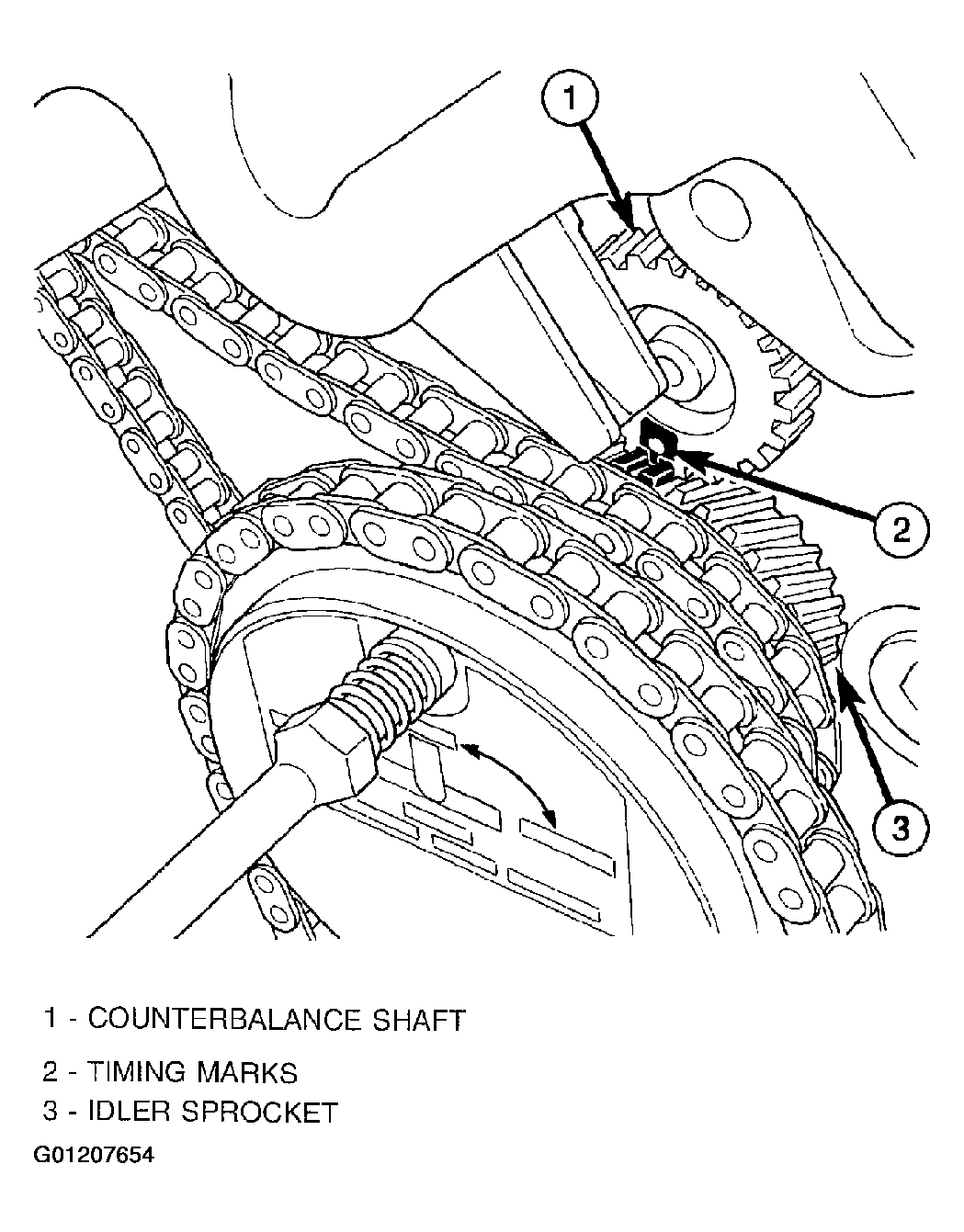

    Fig 2: Identifying Counterbalance Shaft Alignment Marks
    G01207654Courtesy of DAIMLERCHRYSLER CORP.
