Power Door Lock/Unlock Switch

1. Remove the switch to be tested. See POWER DOOR LOCK/UNLOCK SWITCH  in REMOVAL & INSTALLATION.
2. Using an ohmmeter, test switch for resistance values. See Fig 1.
3. If test results are not obtained, replace the switch.

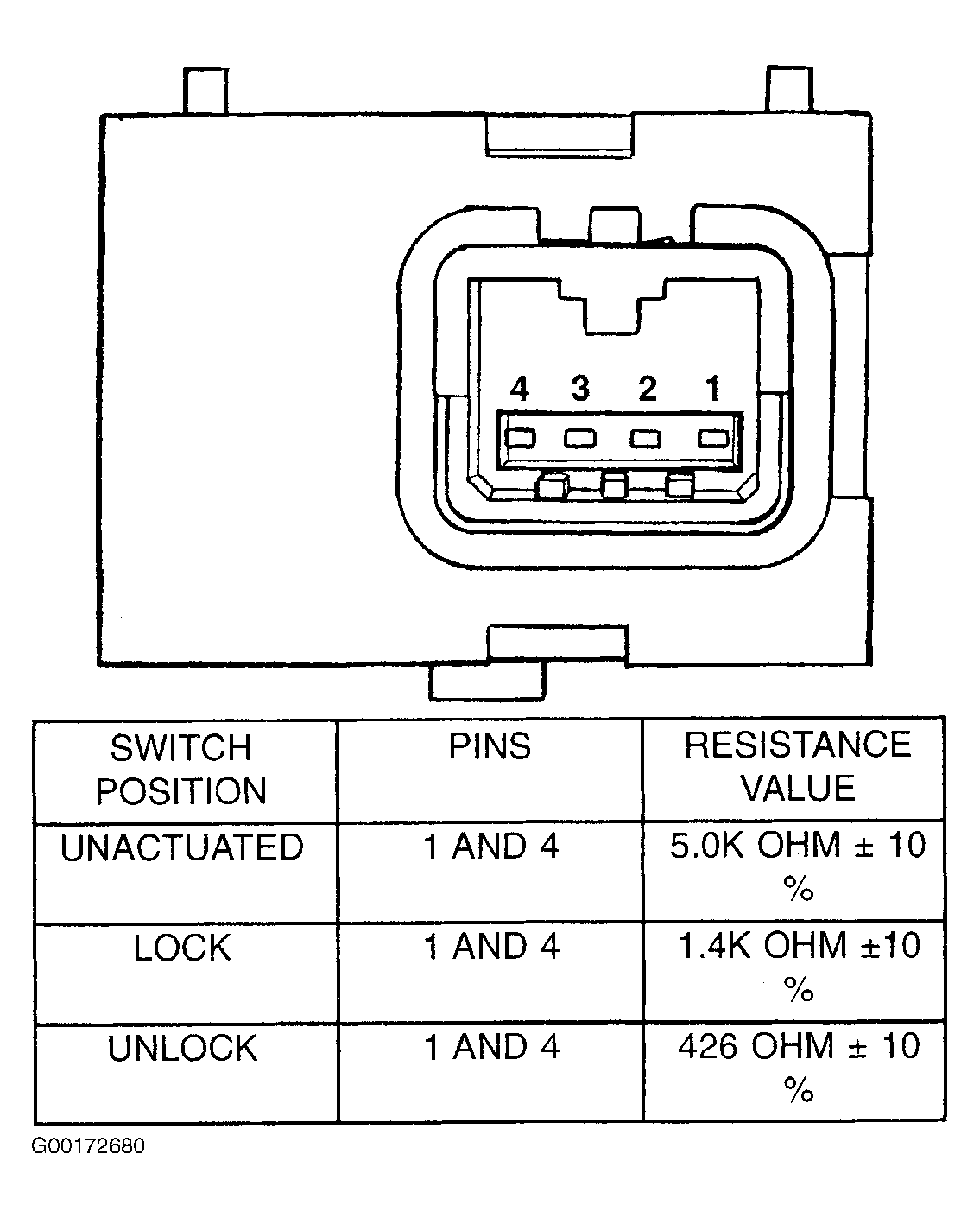

Fig 1: Testing Door Lock Switch

Courtesy of CHRYSLER CORP.
