Power Mirror Motor

If the power mirror switch is receiving proper current and ground and mirrors do not operate, proceed with power mirror motor test.

1. Remove front door trim panel to gain access to power mirror wire connector. See DOOR TRIM PANEL  in REMOVAL & INSTALLATION.
2. Disconnect wire harness connector to power mirror switch. See Fig 1 .
3. Using 2 jumper wires:
   • Connect one to a 12-volt source
   • Connect the other to a good body ground
   • Refer to the Mirror Motor Test Chart for proper wire connections at the switch connector. See Fig 2 .
4. If specified results are not obtained, check for open or shorted circuit on mirror pigtail. Replace mirror assembly as necessary.

Fig 1: Identifying Power Mirror Switch Wire Harness Connector Terminals

Courtesy of CHRYSLER CORP.

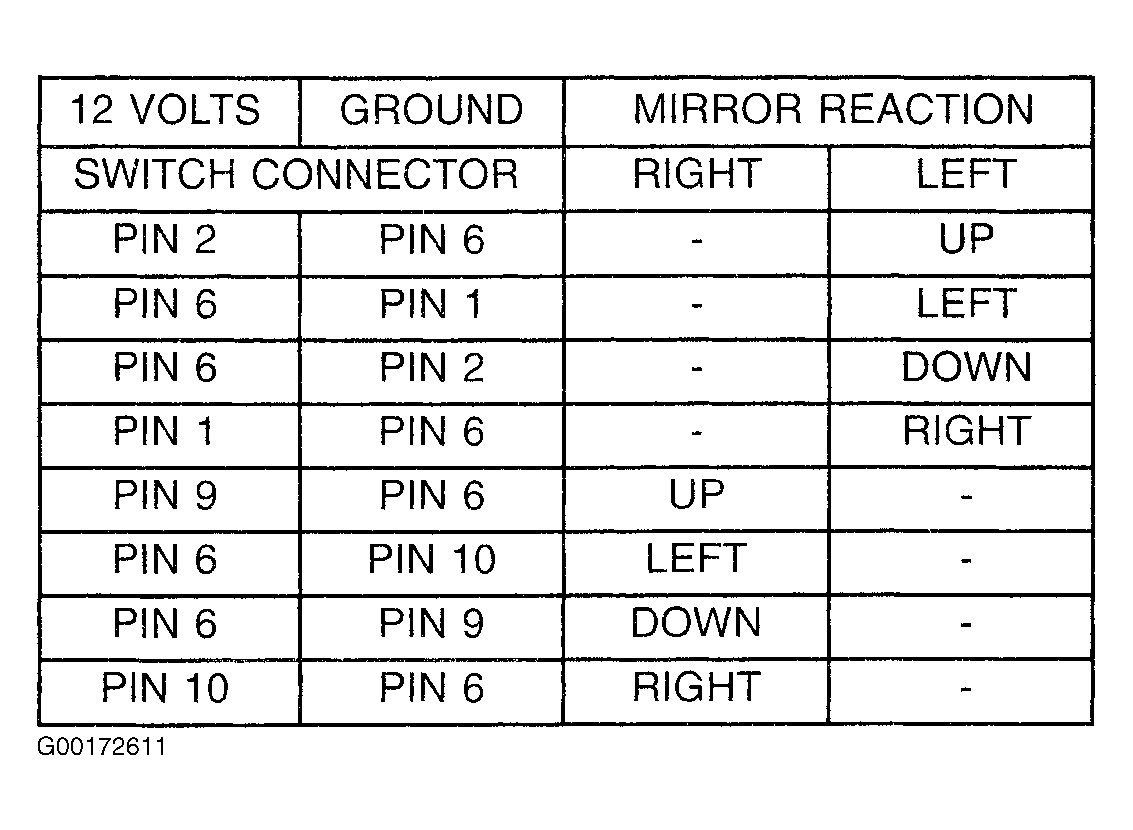

Fig 2: Mirror Motor Test Chart

Courtesy of CHRYSLER CORP.
