Power Mirror Switch

  1. Remove the power mirror switch. See POWER MIRROR SWITCH  in REMOVAL & INSTALLATION.
  2. Disconnect wiring harness connector from switch.
  3. Using a ohmmeter, test for continuity between the terminals of the switch. See Fig 1 .
  4. If specified results are not obtained, replace the switch. See Fig 2 .
Fig 1: Identifying Power Mirror Switch Terminals
G00172612Courtesy of CHRYSLER CORP.

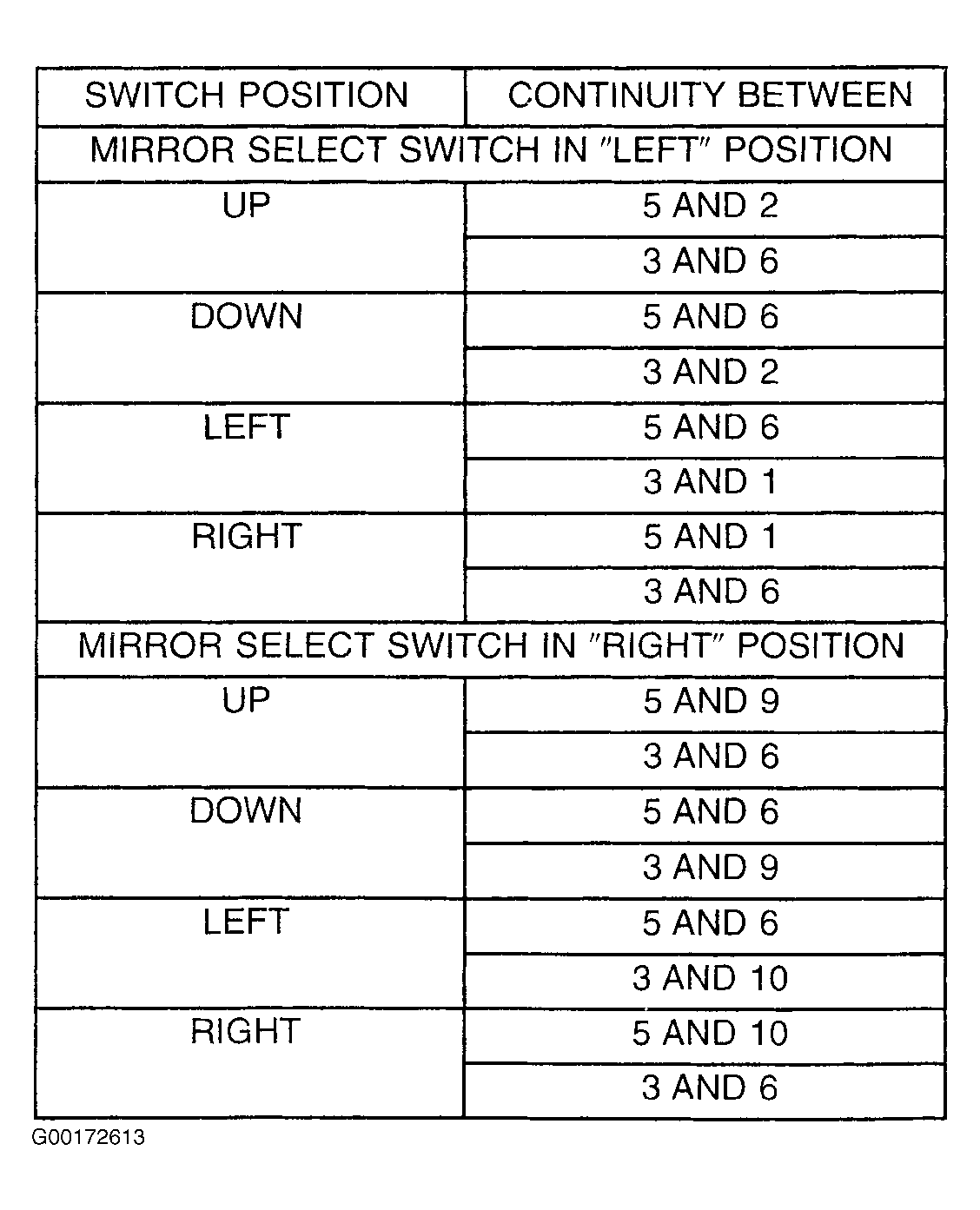

Fig 2: Power Mirror Switch Test
G00172613Courtesy of CHRYSLER CORP.
