Heated Seat Module

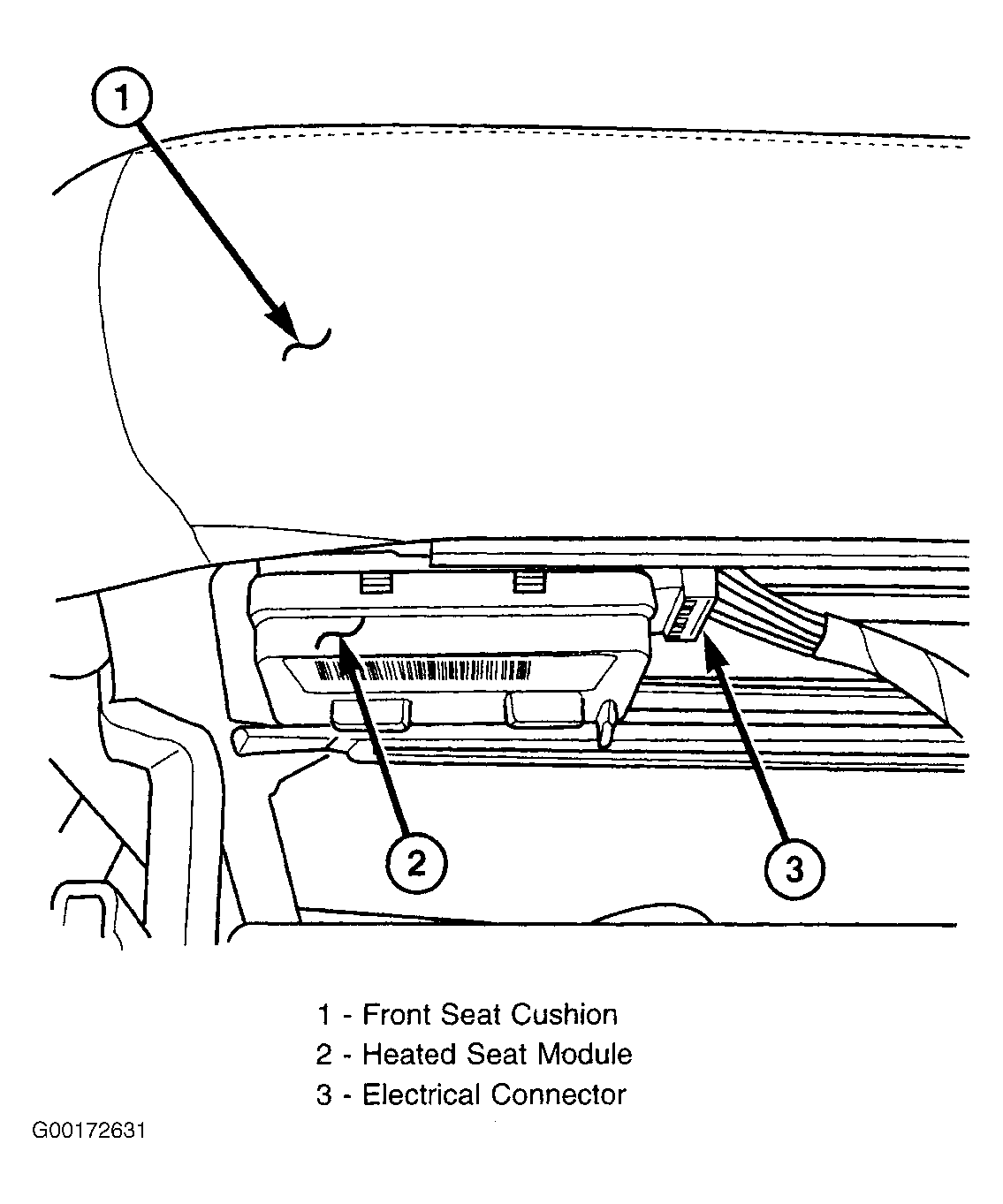

- Working under the front seat cushion, remove the heated seat module from its mounting bracket by gently prying the module off of the 2 mounting pushpins. See Fig 1 .
- Disconnect the seat wire harness connector from the connector receptacle on the side of the heated seat module.
- Remove the heated seat module from the vehicle.
- To install, reverse removal procedure.
