Compass Mini Trip Computer (Premium) Connector End View
Compass Mini Trip Computer (Premium) Connector End View

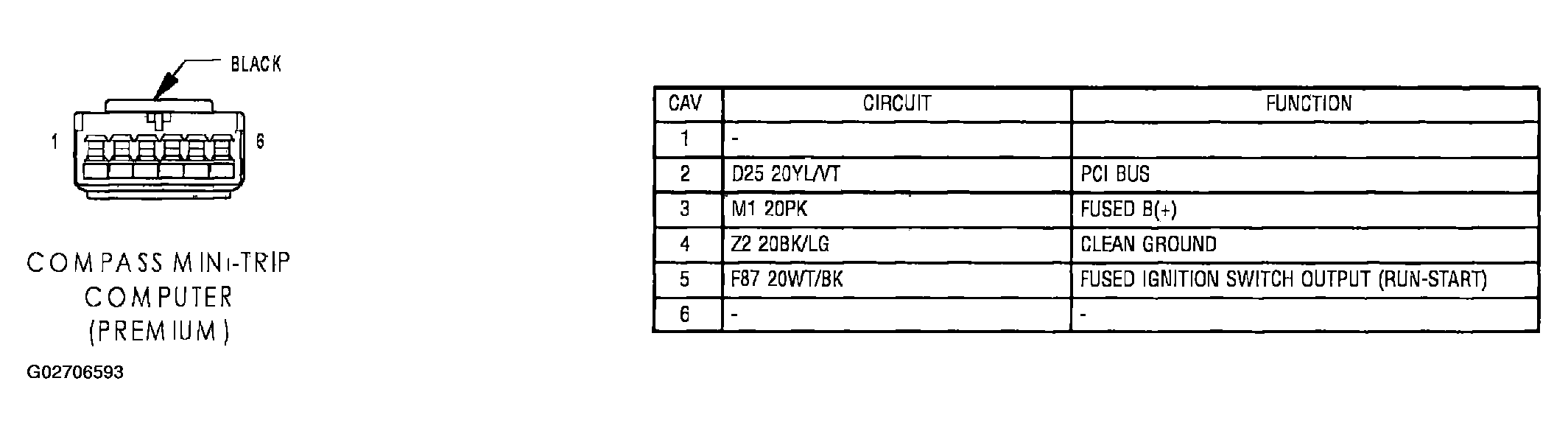

Fig 1: Compass Mini Trip Computer (Premium) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
