Manifold Absolute Pressure Sensor Connector End View
Manifold Absolute Pressure Sensor Connector End View

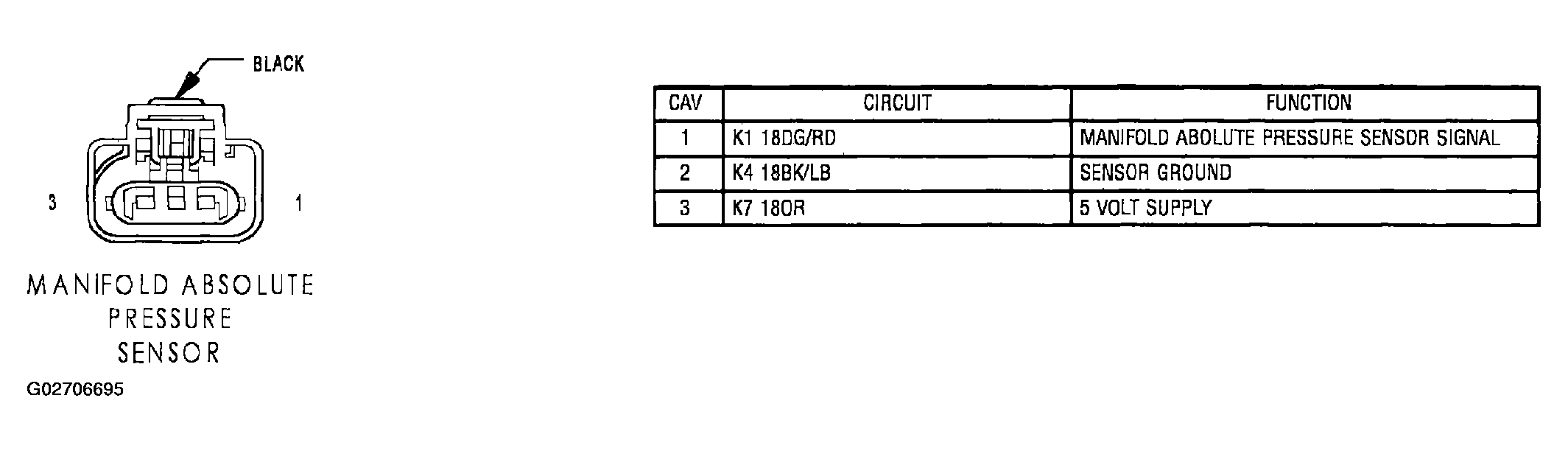

Fig 1: Manifold Absolute Pressure Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
