Red Brake Warning Indicator Switch Connector End View
Red Brake Warning Indicator Switch Connector End View

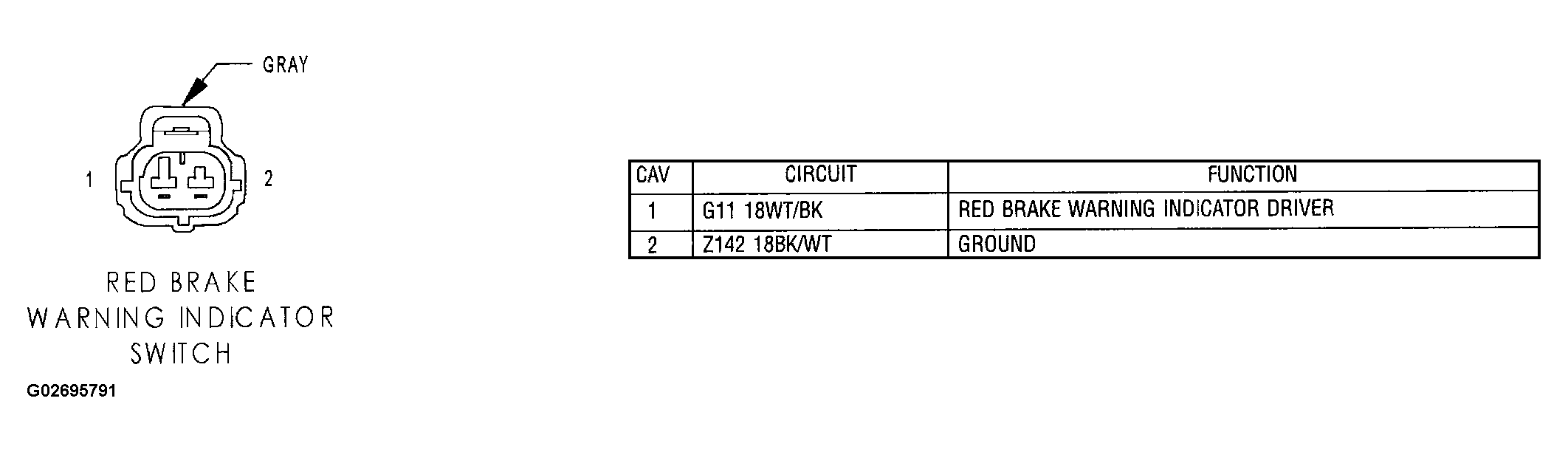

Fig 1: Red Brake Warning Indicator Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
