Remote Keyless Entry Module (Except Base) Connector End View
Remote Keyless Entry Module (Except Base) Connector End View

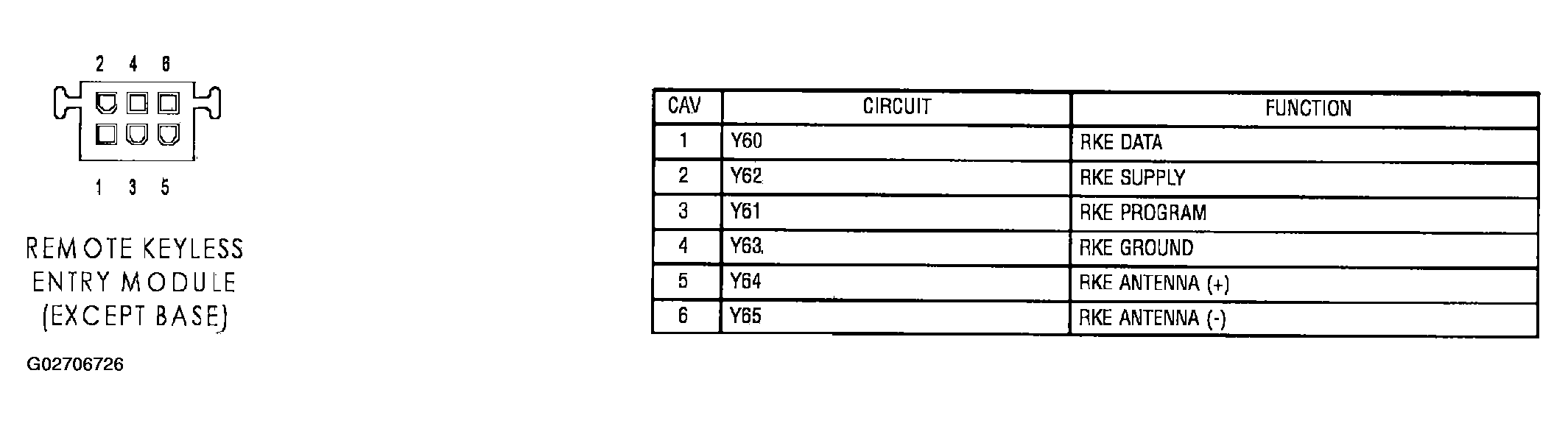

Fig 1: Remote Keyless Entry Module (Except Base) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
