Airbag Control Module (ORC) C1 Connector End View
Airbag Control Module (ORC) C1 Connector End View

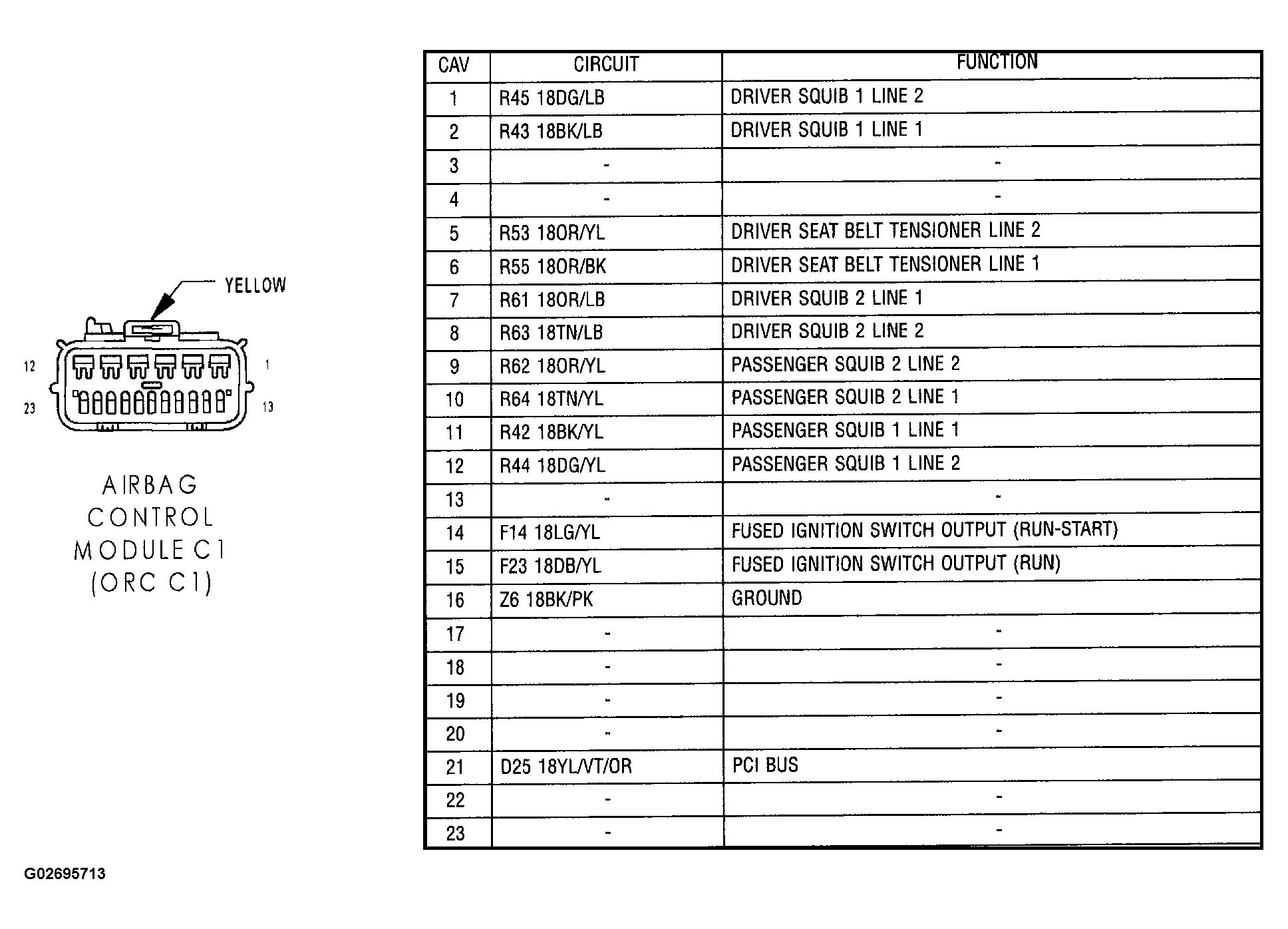

Fig 1: Airbag Control Module (ORC) C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
