Junction Block C2 Connector End View

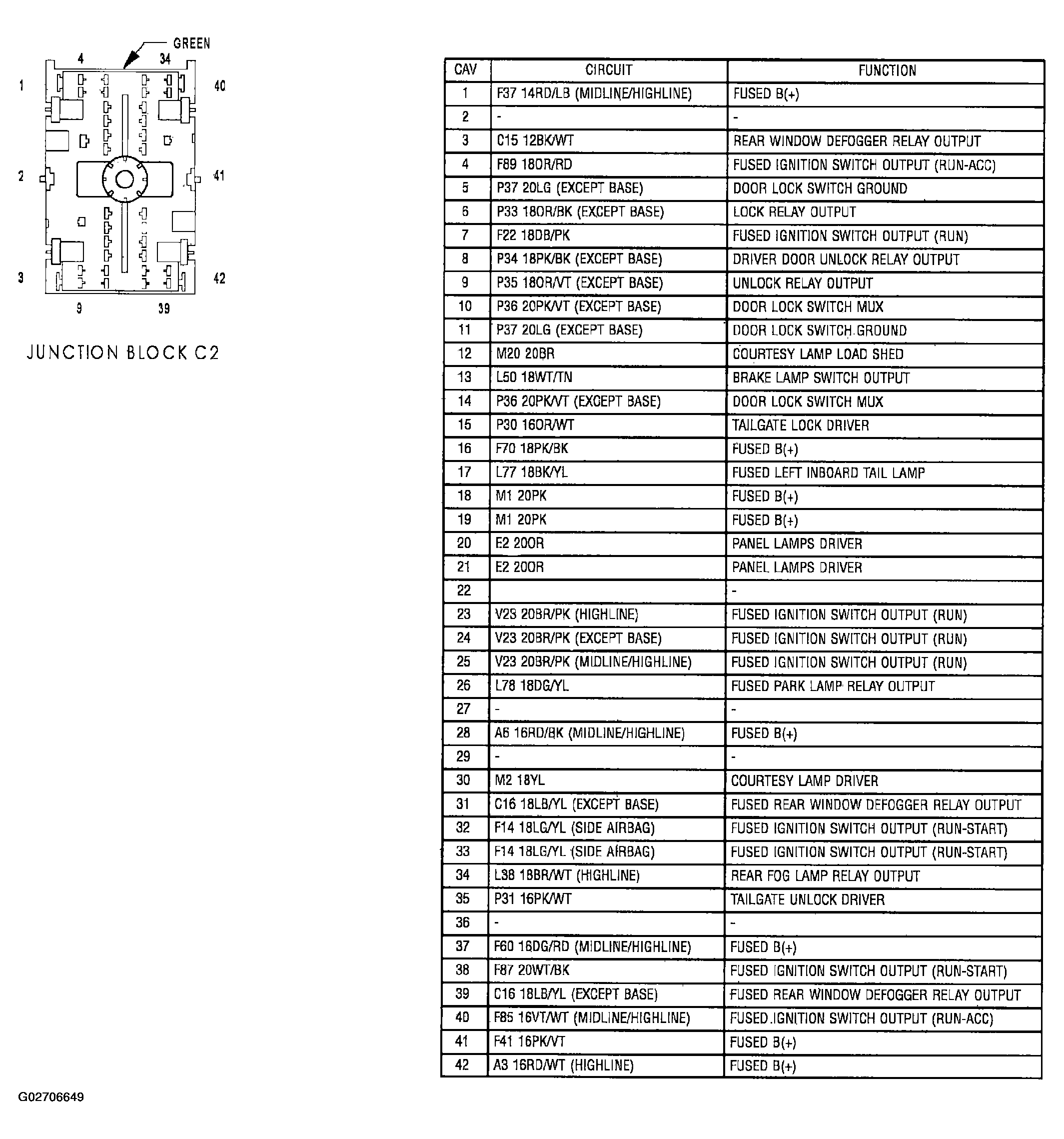

Fig 1: Junction Block C2 Connector End View
G02706649Courtesy of CHRYSLER GROUP, LLC
