Multifunction Switch C1 Connector End View

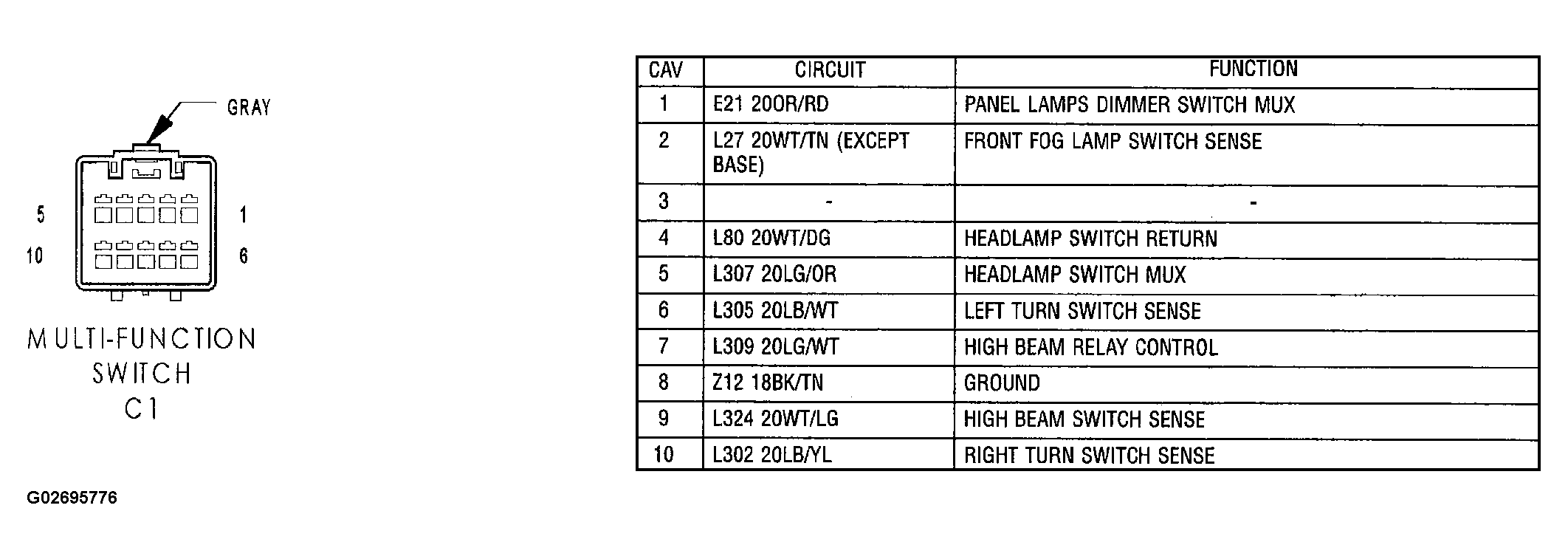

Fig 1: Multifunction Switch C1 Connector End View
G02695776Courtesy of CHRYSLER GROUP, LLC
