Multifunction Switch C2 Connector End View
Multifunction Switch C2 Connector End View

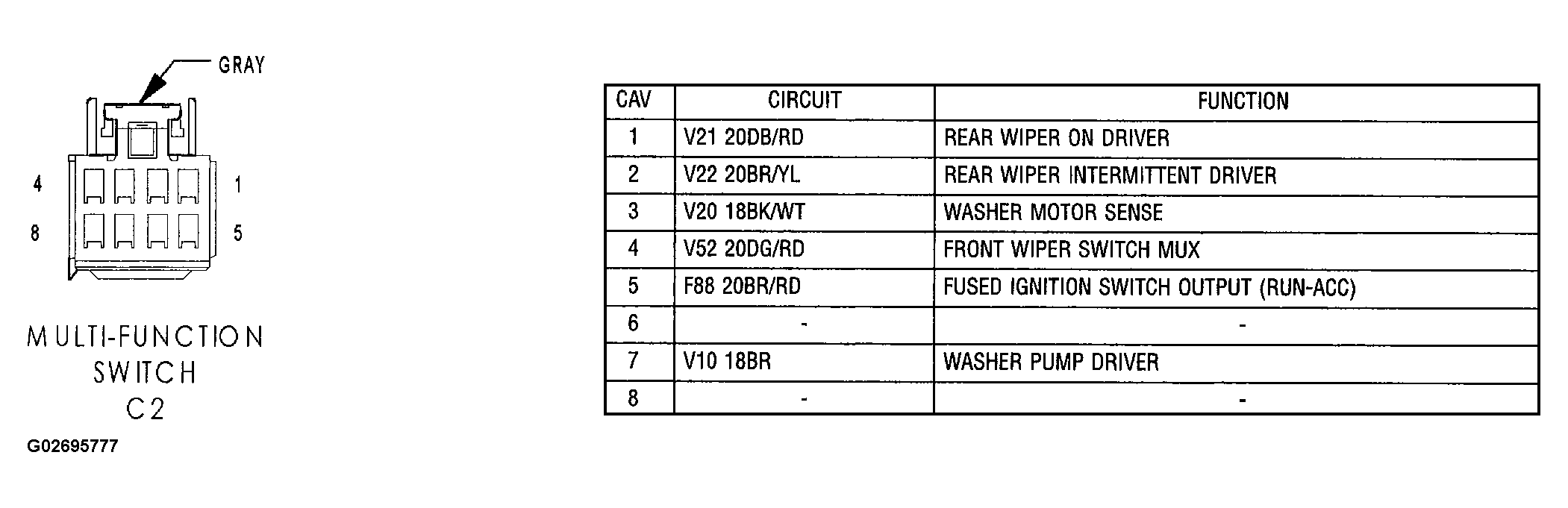

Fig 1: Multifunction Switch C2 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
