O2 Sensor Locations (3.7L)

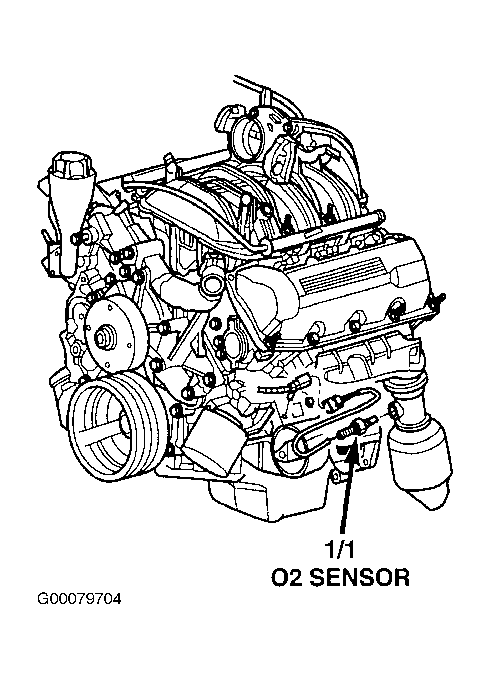

Fig 1: Locating 1/1 O2 Sensor (3.7L)

G00079704

Courtesy of DAIMLERCHRYSLER CORPORATION

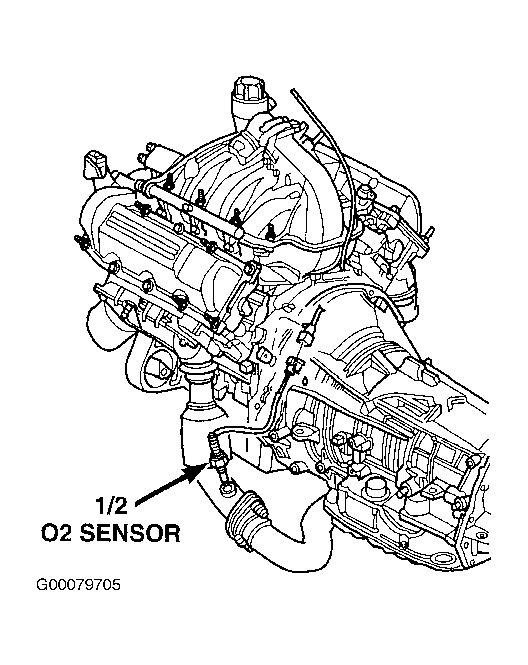

Fig 2: Locating 1/2 O2 Sensor (3.7L)

G00079705

Courtesy of DAIMLERCHRYSLER CORPORATION

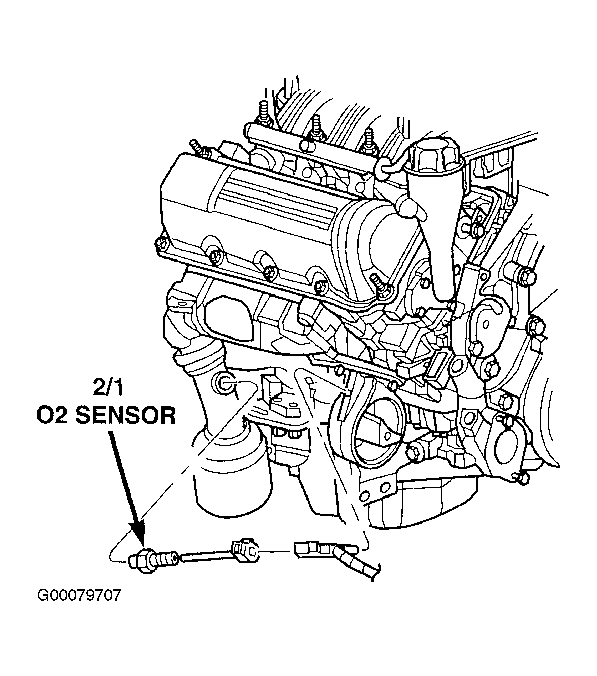

Fig 3: Locating 2/1 O2 Sensor (3.7L)

G00079707

Courtesy of DAIMLERCHRYSLER CORPORATION

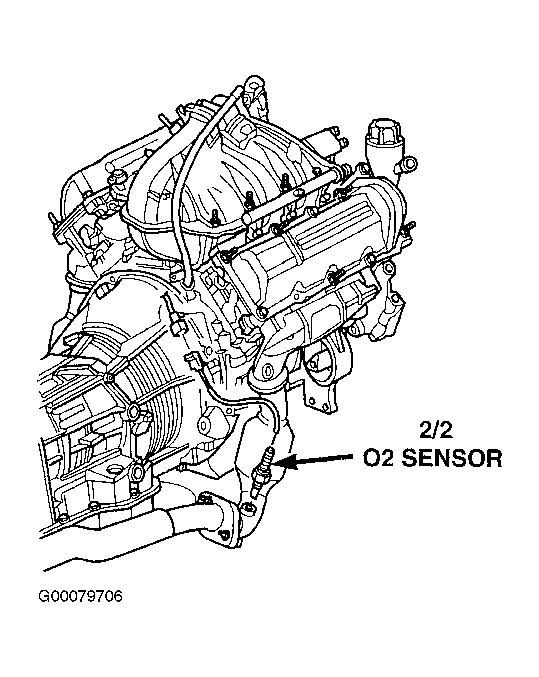

Fig 4: Locating 2/2 O2 Sensor (3.7L)

G00079706

Courtesy of DAIMLERCHRYSLER CORPORATION
