Jeep
›
2002
›
Liberty Renegade, 2.4 1
›
Repair and Diagnosis
›
Transmission
›
Clutch
›
Torque Specifications
Torque Specifications

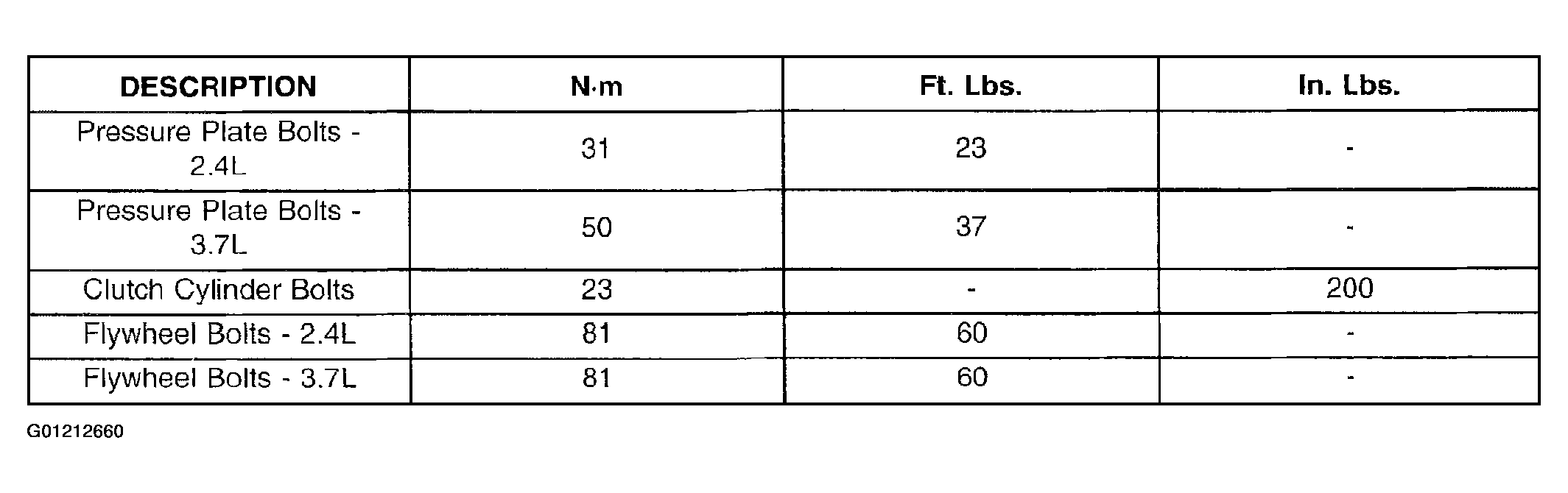

Fig 1: Clutch Torque Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
