Fuel Injector Locations (4.0L)

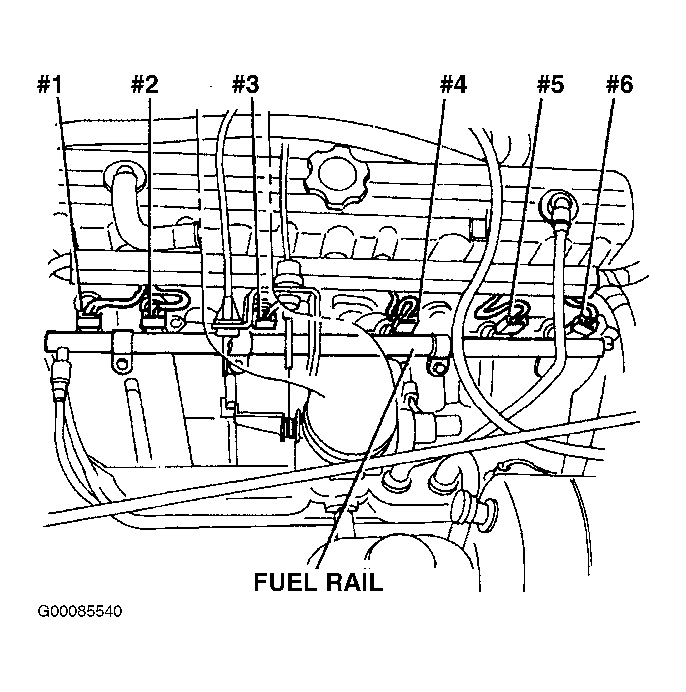

Fig 1: Locating Fuel Injectors (4.0L)
G00085540Courtesy of DAIMLERCHRYSLER CORPORATION
