Connector Identification
›
Fuse/Relay Box Fuses & Circuit Identification
Fuse/Relay Box Fuses & Circuit Identification

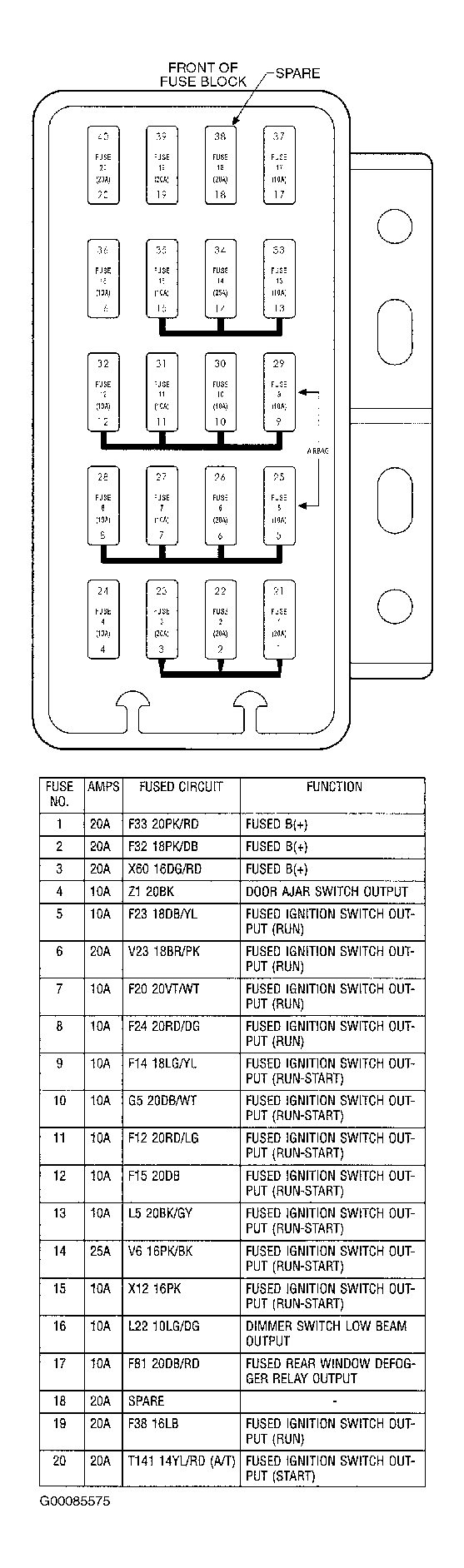

Fig 1: Identifying Fuse/Relay Box Fuses & Circuits
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
