Torque Chart

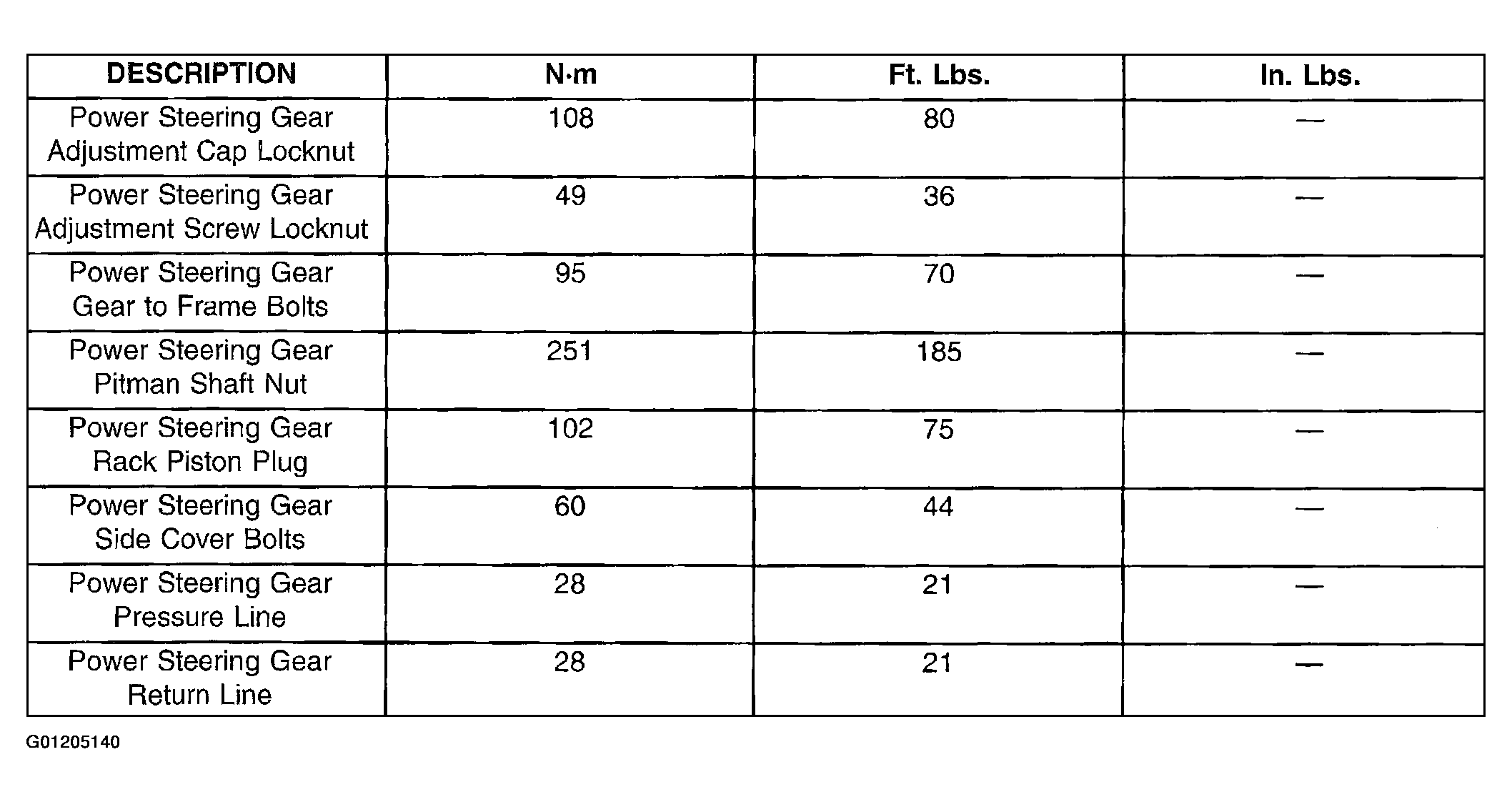

Fig 1: Power Steering Gear Torque Specifications
G01205140Courtesy of DAIMLERCHRYSLER CORP.
