Power Steering Pressure Switch: Description

A pressure sensing switch is included in the power steering system (mounted on the high-pressure line). This switch will be used only on vehicles equipped with a 2.5L engine and power steering.

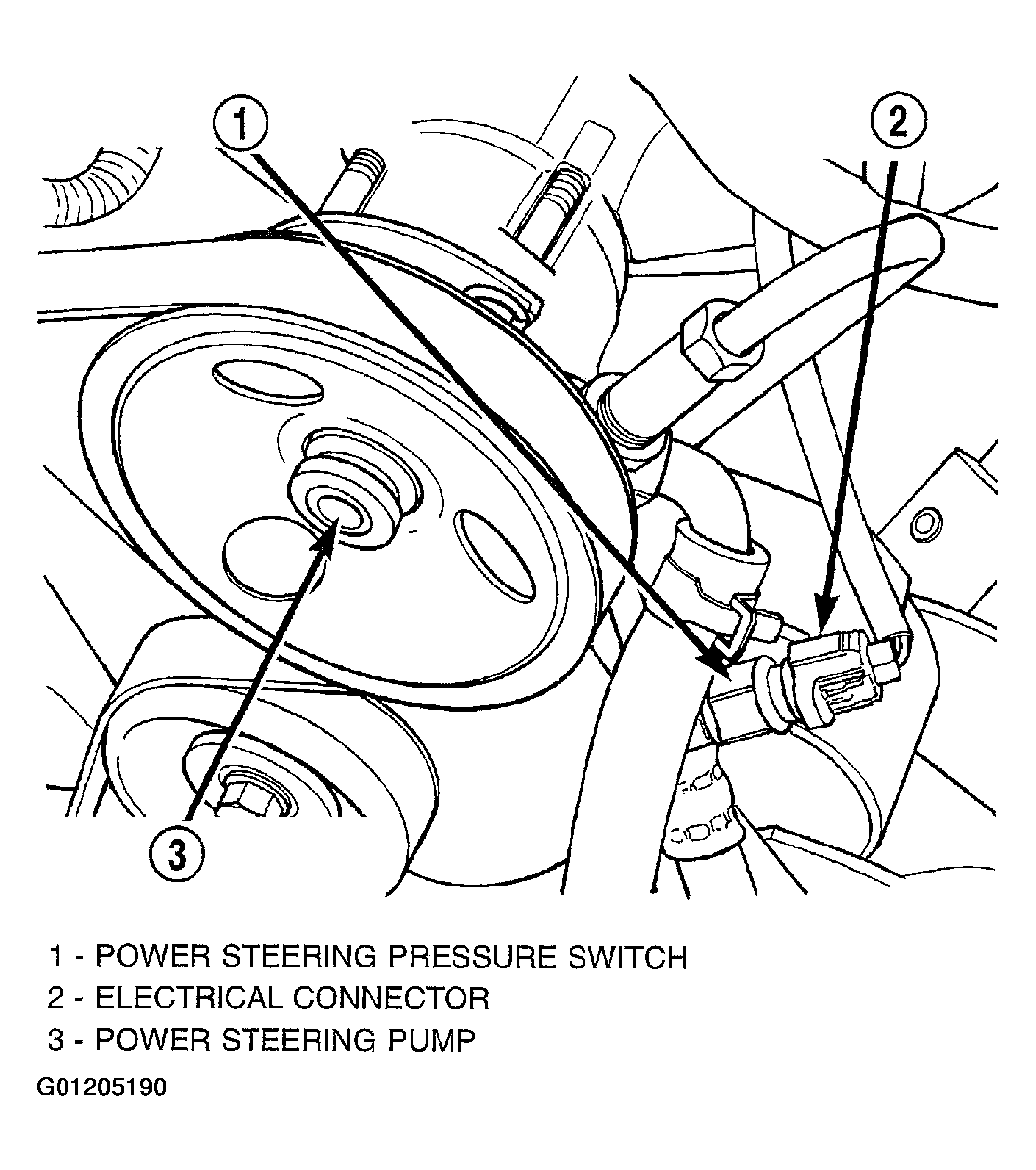

Fig 1: Identifying Power Pump Pressure Switch-2.5L
G01205190Courtesy of DAIMLERCHRYSLER CORP.
