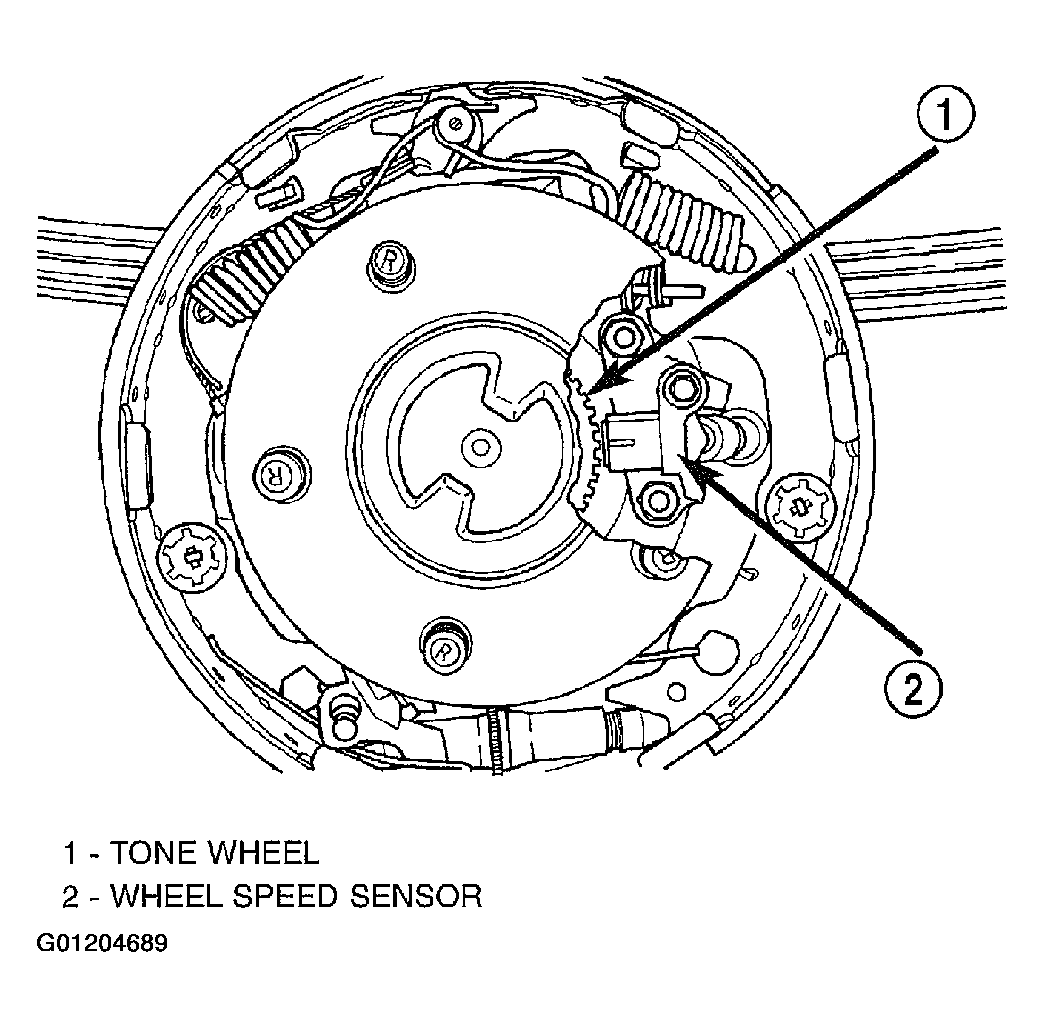

Rear Wheel Speed Sensor: Removal
- Disconnect sensors at rear harness connectors.
- Remove wheel and tire assembly.
- Remove brake drum.
- Remove clips securing sensor wires to brake lines, rear axle and, brake hose.
- Unseat sensor wire support plate grommet.
- Remove bolt attaching sensor to bracket and remove sensor.
