Fuel Injector Locations (2.5L)

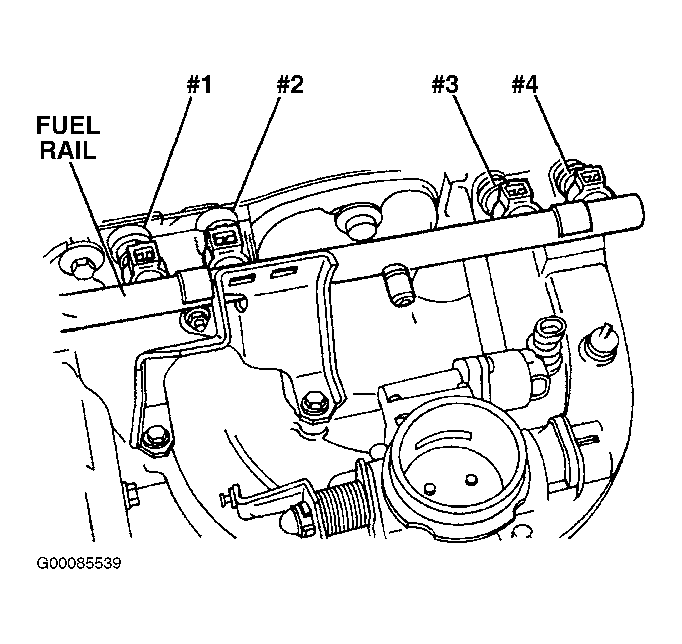

Fig 1: Locating Fuel Injectors (2.5L)
G00085539Courtesy of DAIMLERCHRYSLER CORPORATION
