O2 Sensor Locations (2.5L)

Fig 1: Locating 1/1 O2 Sensor (2.5L)
G00085531Courtesy of DAIMLERCHRYSLER CORPORATION

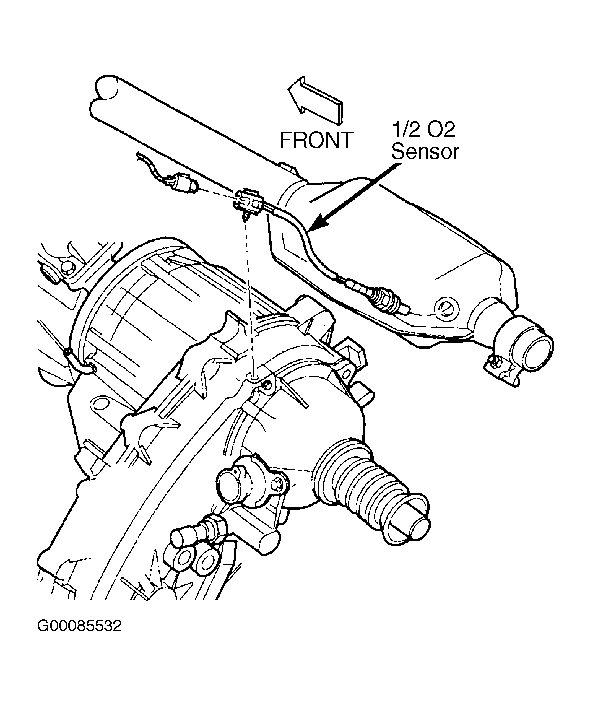

Fig 2: Locating 1/2 O2 Sensor (2.5L)
G00085532Courtesy of DAIMLERCHRYSLER CORPORATION
