Powertrain Control Module C1 Connector End View (Black 32 Way)

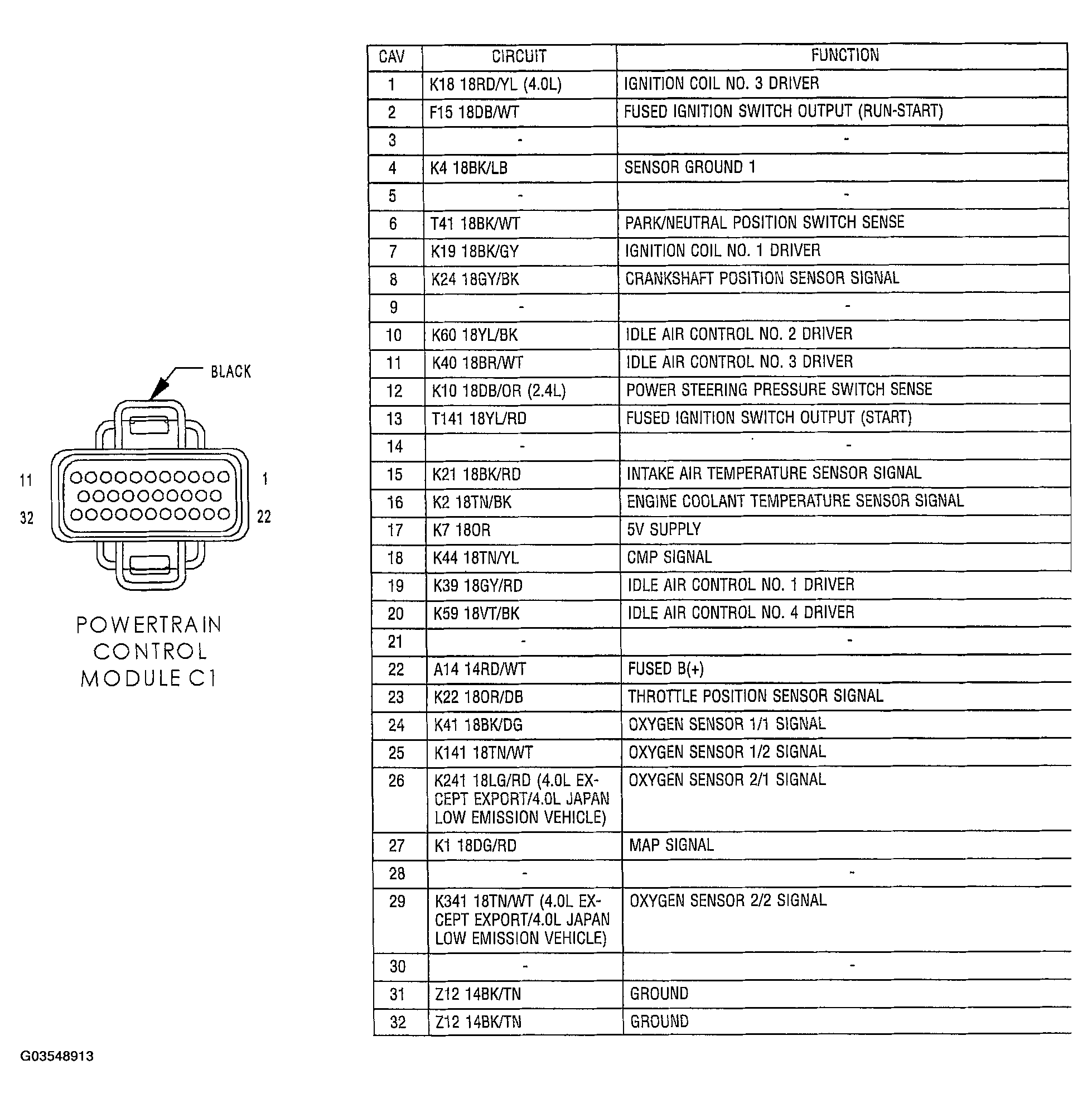

Fig 1: Powertrain Control Module C1 Connector End View (Black 32 Way)
G03548913Courtesy of CHRYSLER GROUP, LLC
