Body Control Module C2 - White 22 Way Connector End View

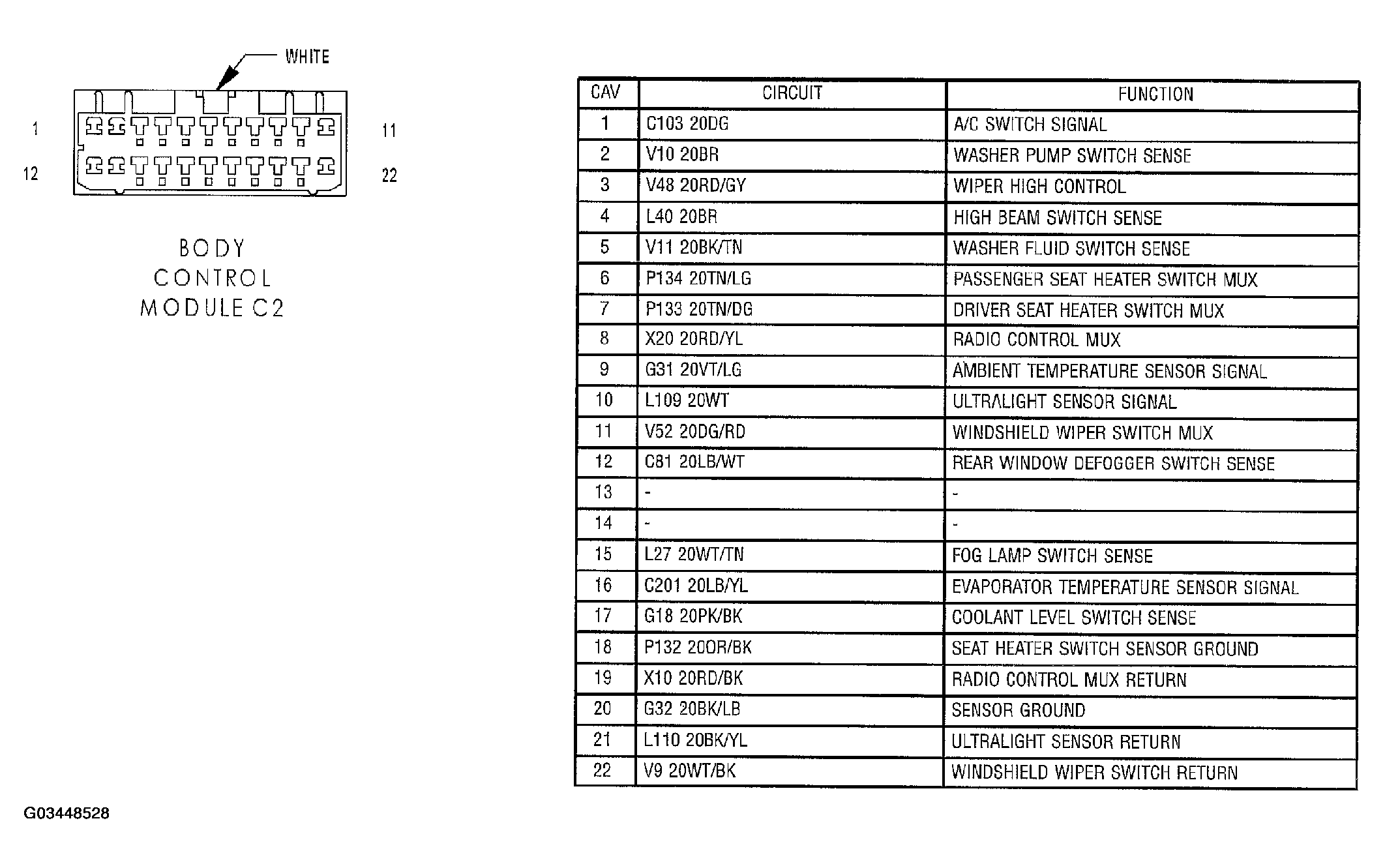

Fig 1: Body Control Module Connector End View (C2)
G03448528Courtesy of DAIMLERCHRYSLER CORP.
