Leak Detection Pump Location

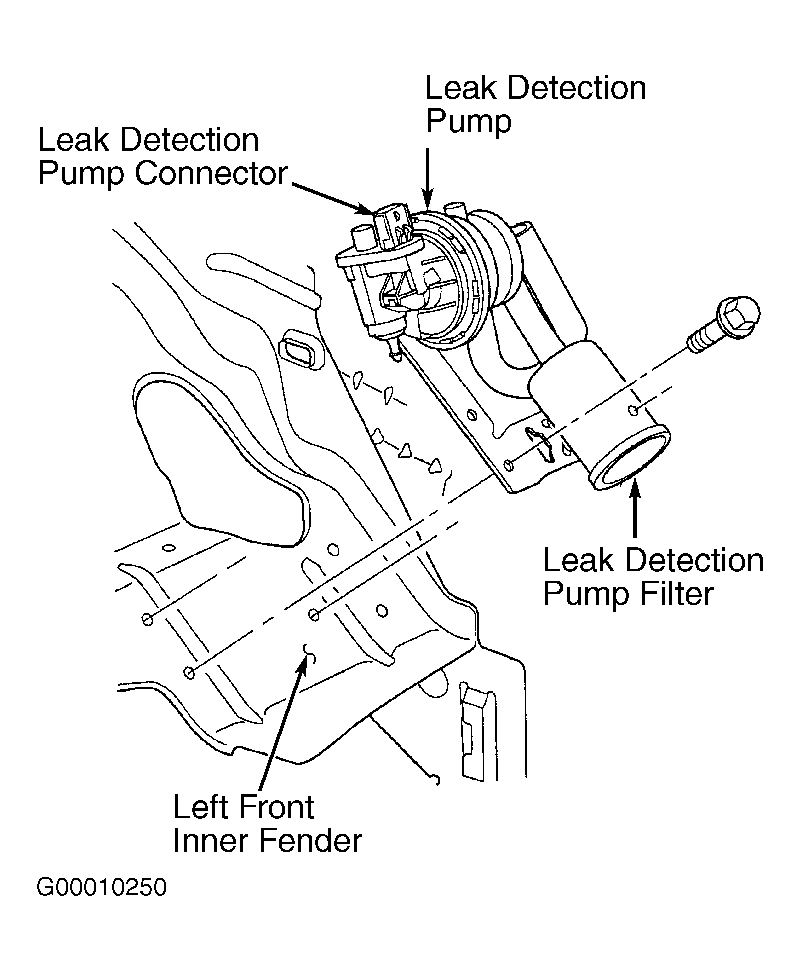

Fig 1: Locating Leak Detection Pump
G00010250Courtesy of DAIMLERCHRYSLER CORPORATION
