Engine Controls - Self-Diagnostics
›
Connector Identification
›
Power Distribution Center Fuses & Fuse Circuits Identification & Commentary End View
Power Distribution Center Fuses & Fuse Circuits Identification & Commentary End View

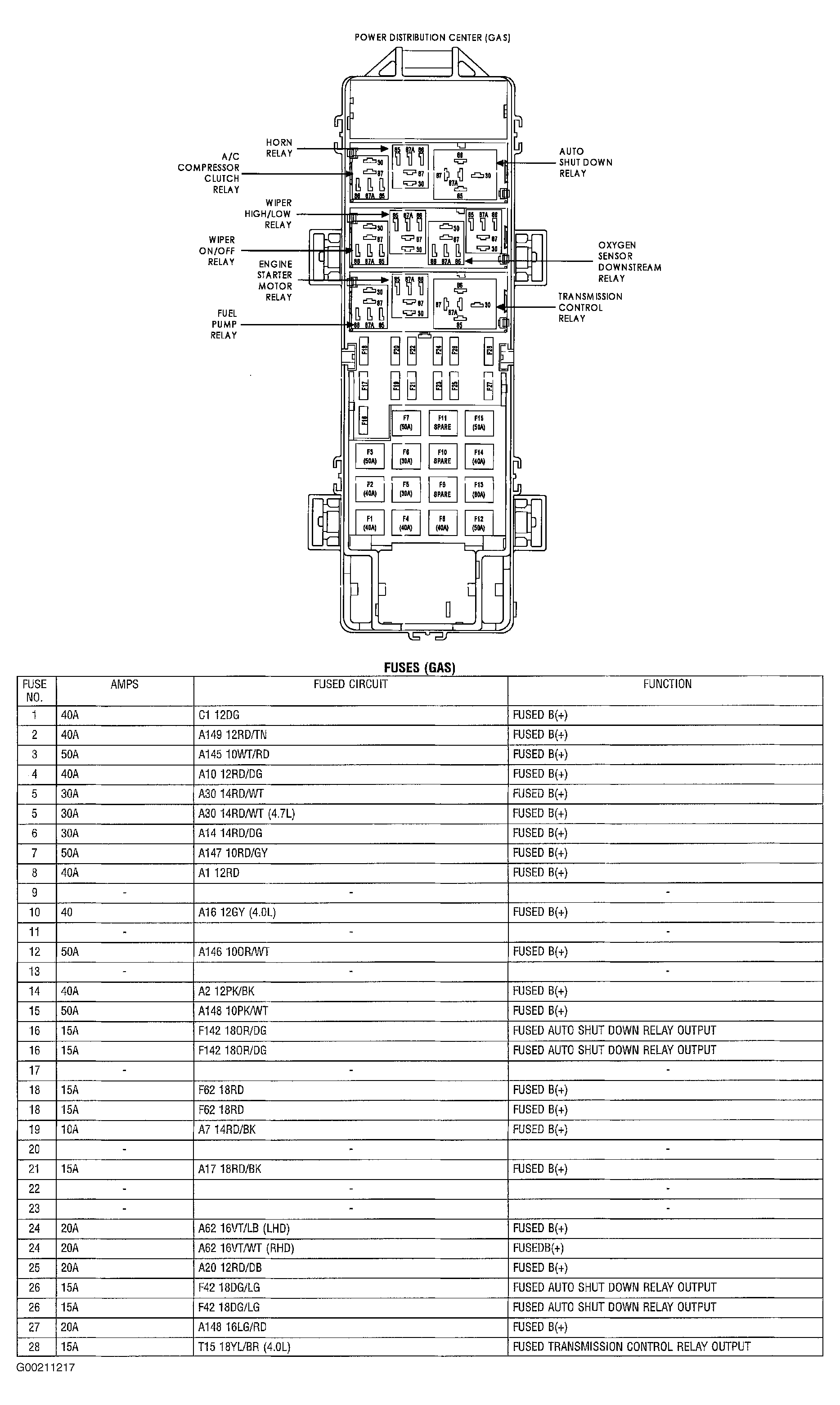

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
