Connector Identification
›
Trailer Tow Harness Commentary End View
Trailer Tow Harness Commentary End View

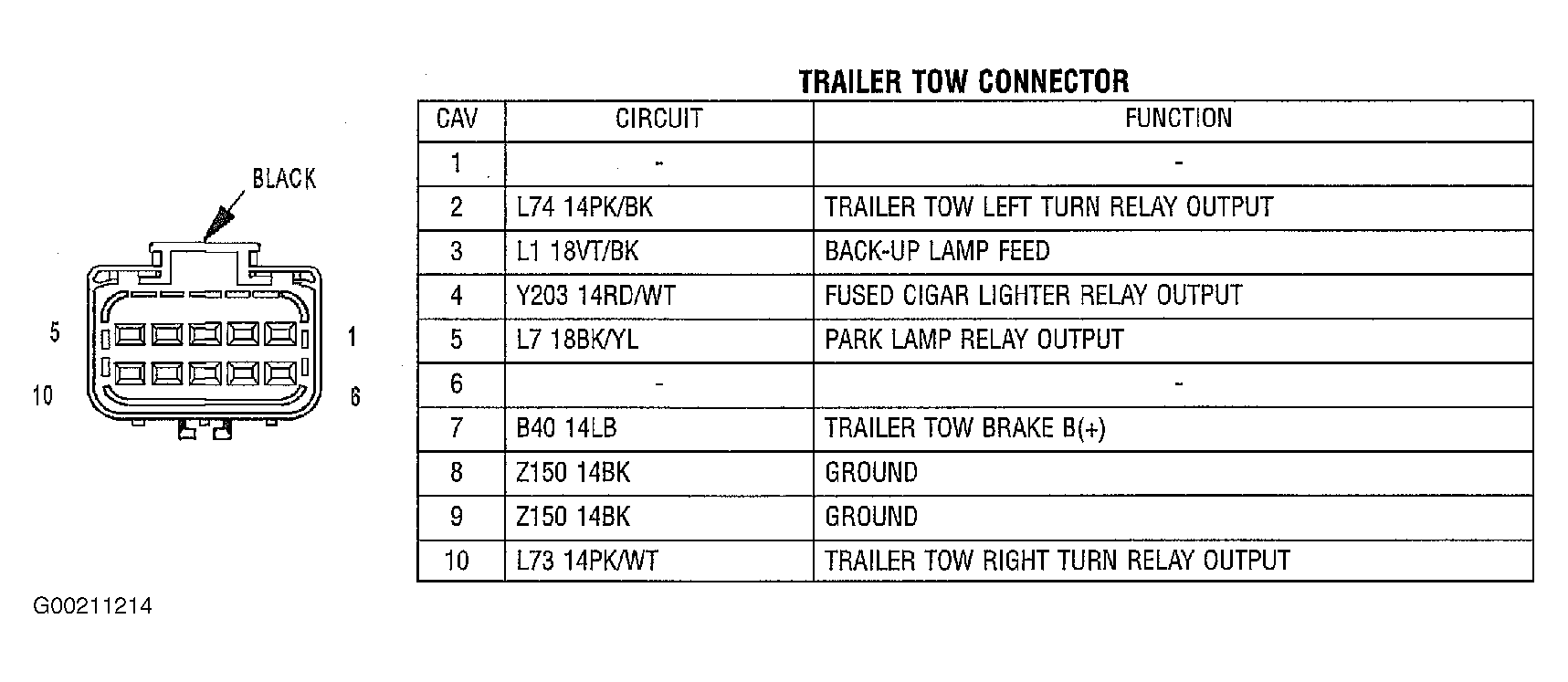

Fig 1: Identifying Trailer Tow Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
