Body Diagnostic Procedures
›
Schematic Diagrams
›
Power Windows
›
Driver Side
Driver Side

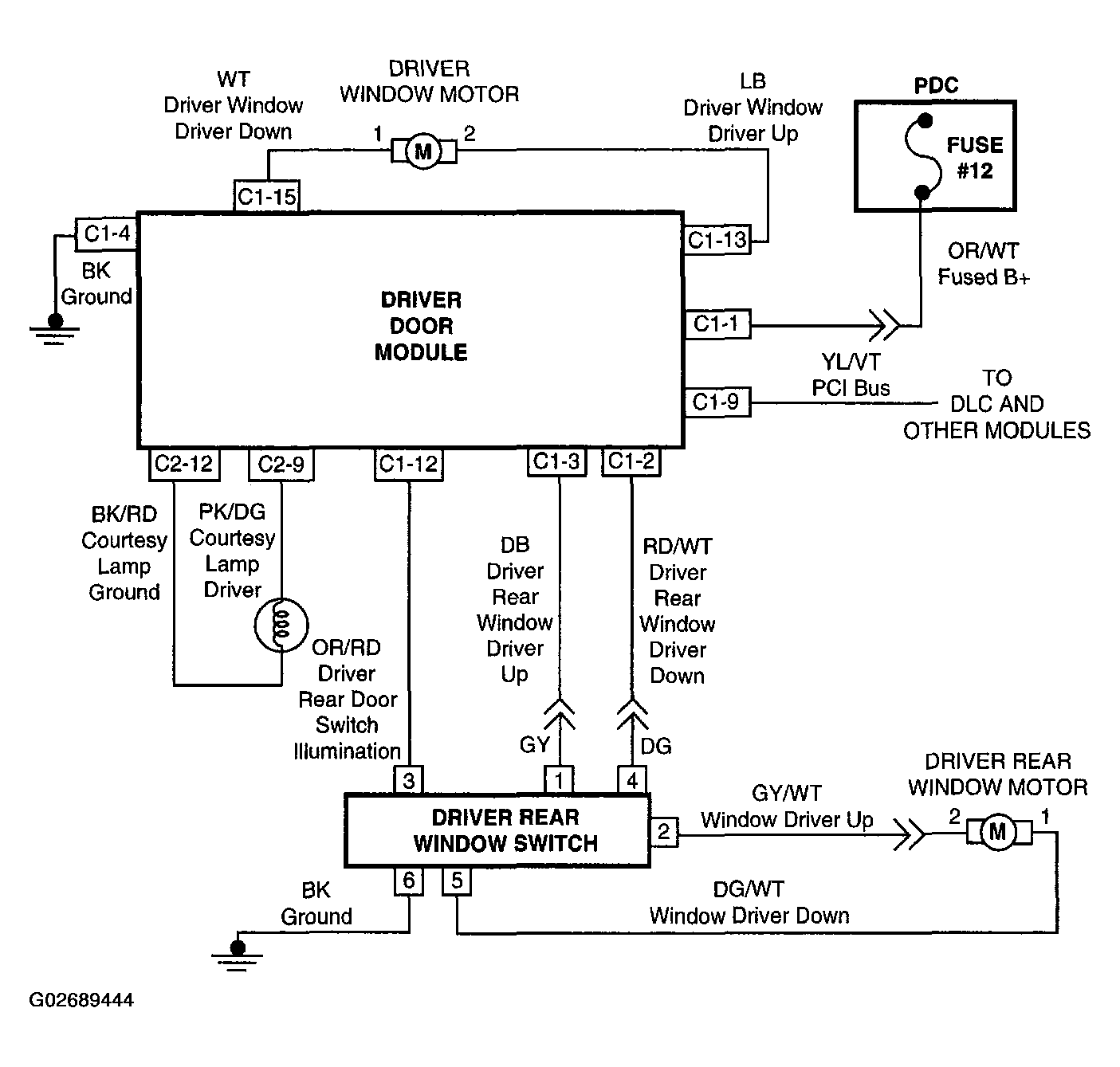

Fig 1: Identifying Power Windows Driver Side Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
