Fuse Cover: Removal
- Disconnect and isolate the battery negative cable.

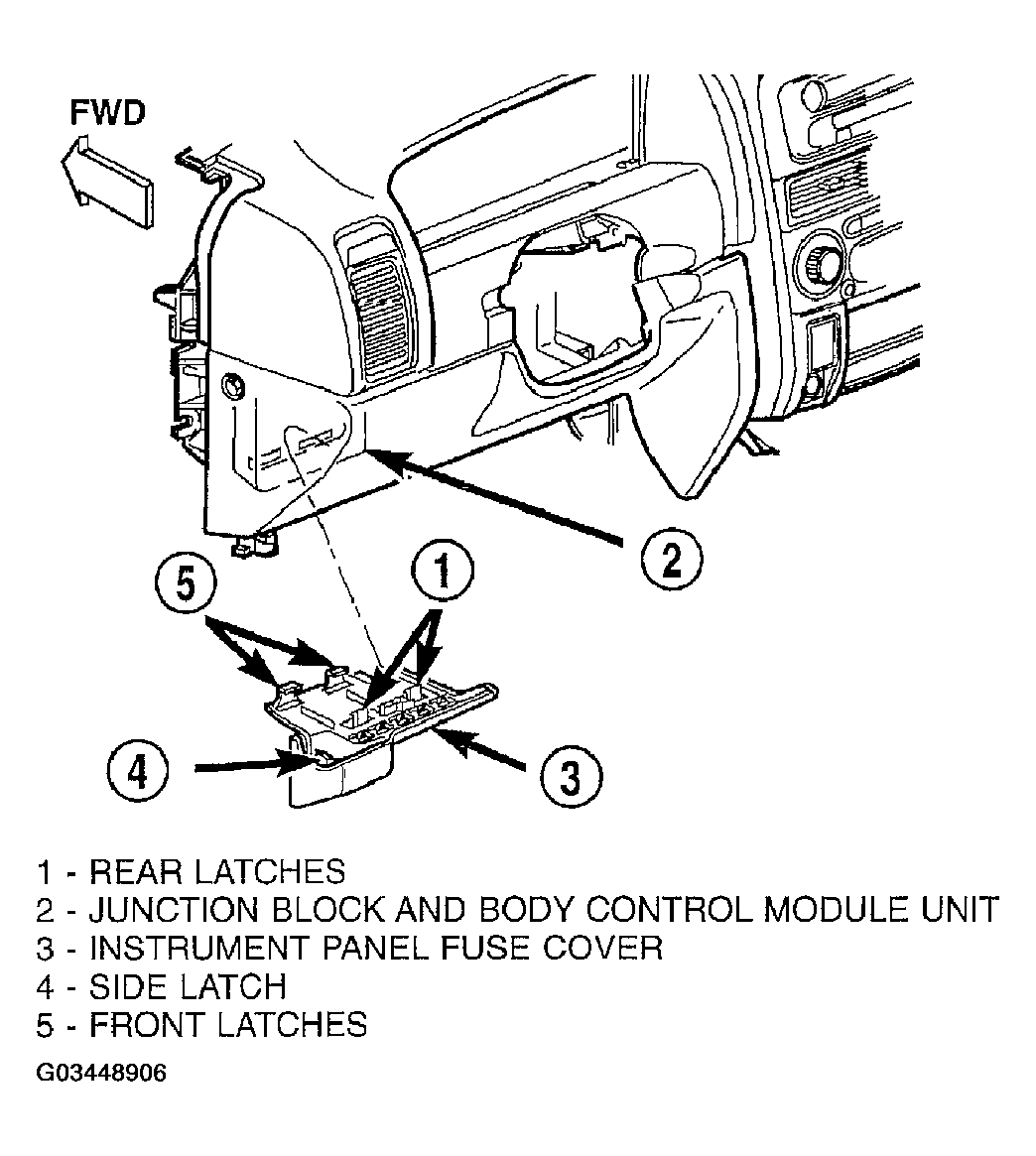

- Pull down on the rear edge (nearest the rear of the vehicle) of the instrument panel fuse cover until the rear latches unsnap from the tabs on the lower junction block housing and the side latch unsnaps from the tab on the instrument panel steering column support bracket outboard of the 16-way data link connector (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Move the instrument panel fuse cover towards the front of the vehicle to disengage the front latches from the mounting slots in the lower housing of the body control module.
- Remove the fuse cover from under the instrument panel.
