Instrument Panel Plenum Bracket: Installation

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

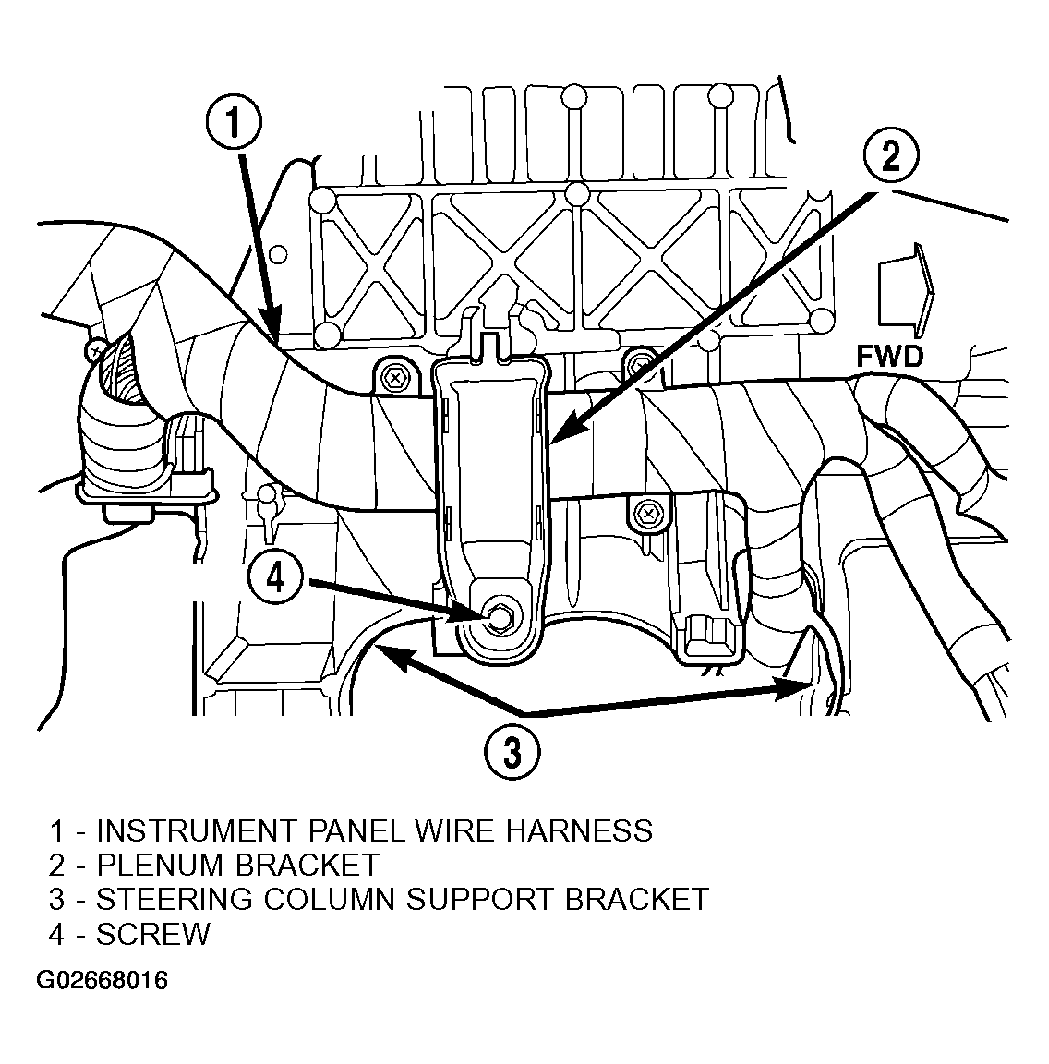

  1. Position the plenum bracket to the instrument panel steering column support bracket (Figure ).
  2. Install the one screw that secures the plenum bracket to the instrument panel steering column support bracket and tighten the screw to 11 N.m (8 ft. lbs.).
  3. Install the instrument panel into the vehicle. Refer to INSTALLATION  .
  4. Connect the battery negative cable.
