Remote Keyless Module (Japan) - Blue 6 Way Connector End View
Remote Keyless Module (Japan) - Blue 6 Way Connector End View

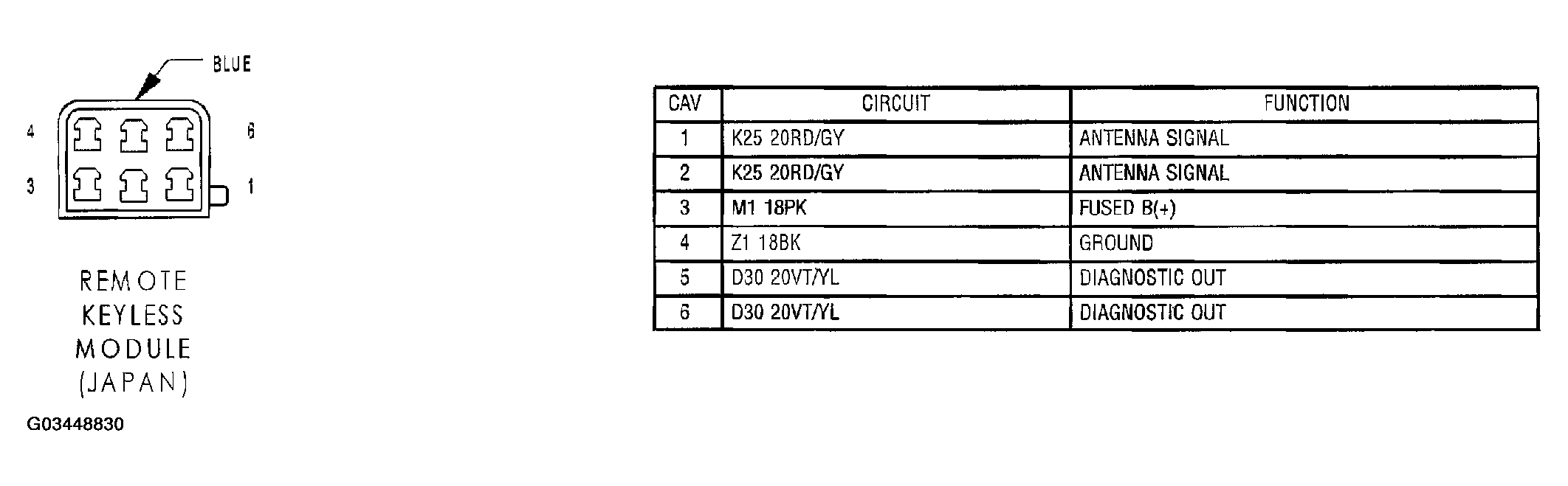

Fig 1: Remote Keyless Module (Japan) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
