Right Multi-Function Switch - White 10 Way Connector End View
Right Multi-Function Switch - White 10 Way Connector End View

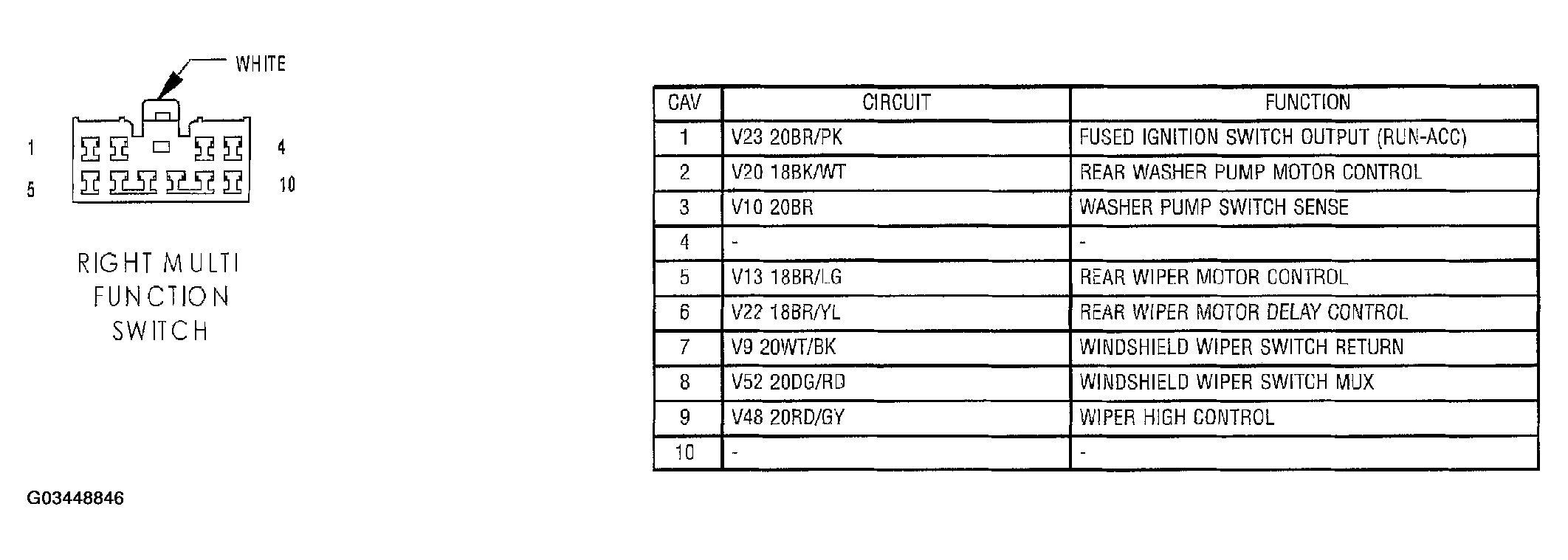

Fig 1: Right Multifunction Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
