CLOCKSPRING Connector End View

Fig 1: Identifying Clockspring C1 Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

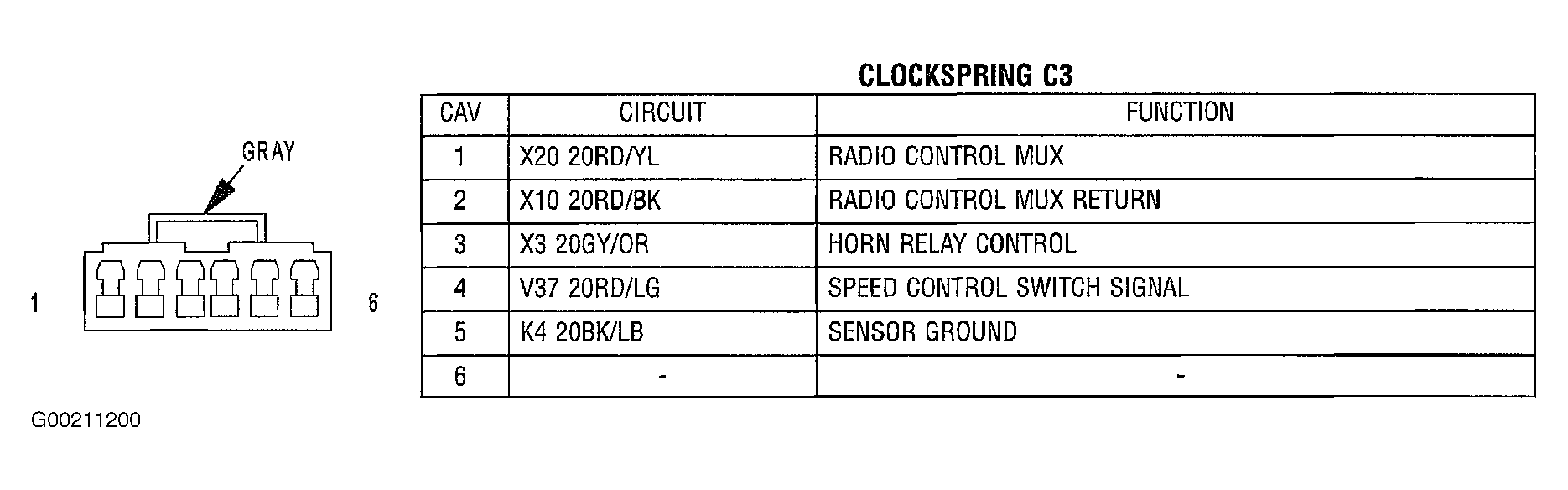

Fig 2: Identifying Clockspring C3 Harness Connector

Courtesy of CHRYSLER CORP.
