Engine Controls - Self-Diagnostics
›
Connector Identification
›
Hydraulic Cooling Module Harness Connector End View
Hydraulic Cooling Module Harness Connector End View

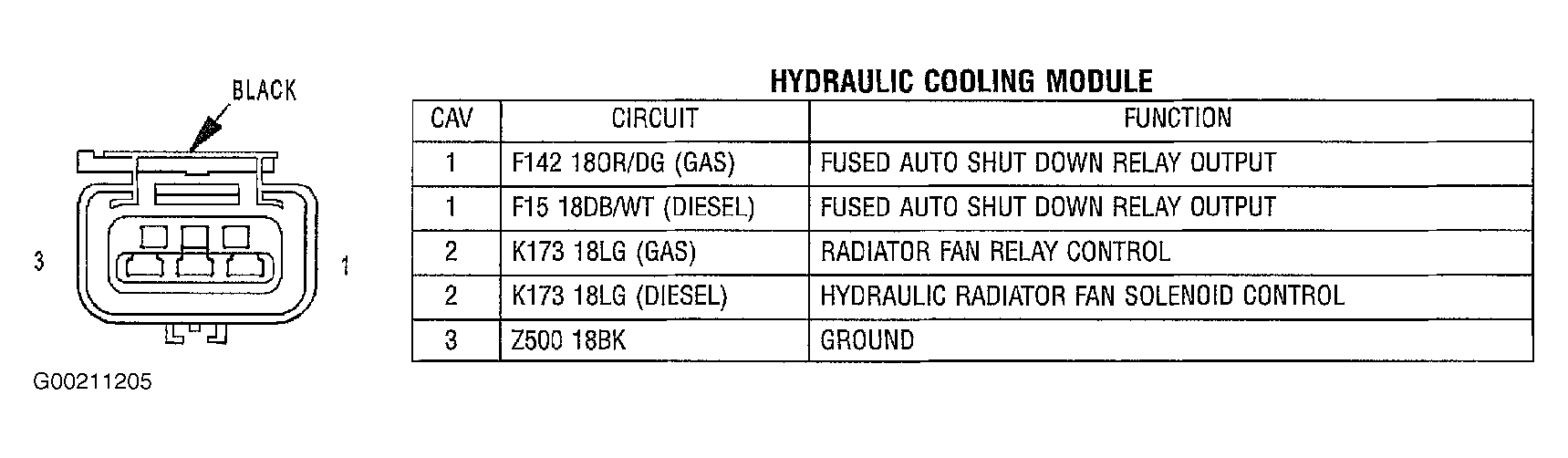

Fig 1: Identifying Hydraulic Cooling Module Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
