Connector Identification
›
Junction Block Fuses & Fuse Circuits Identification
Junction Block Fuses & Fuse Circuits Identification

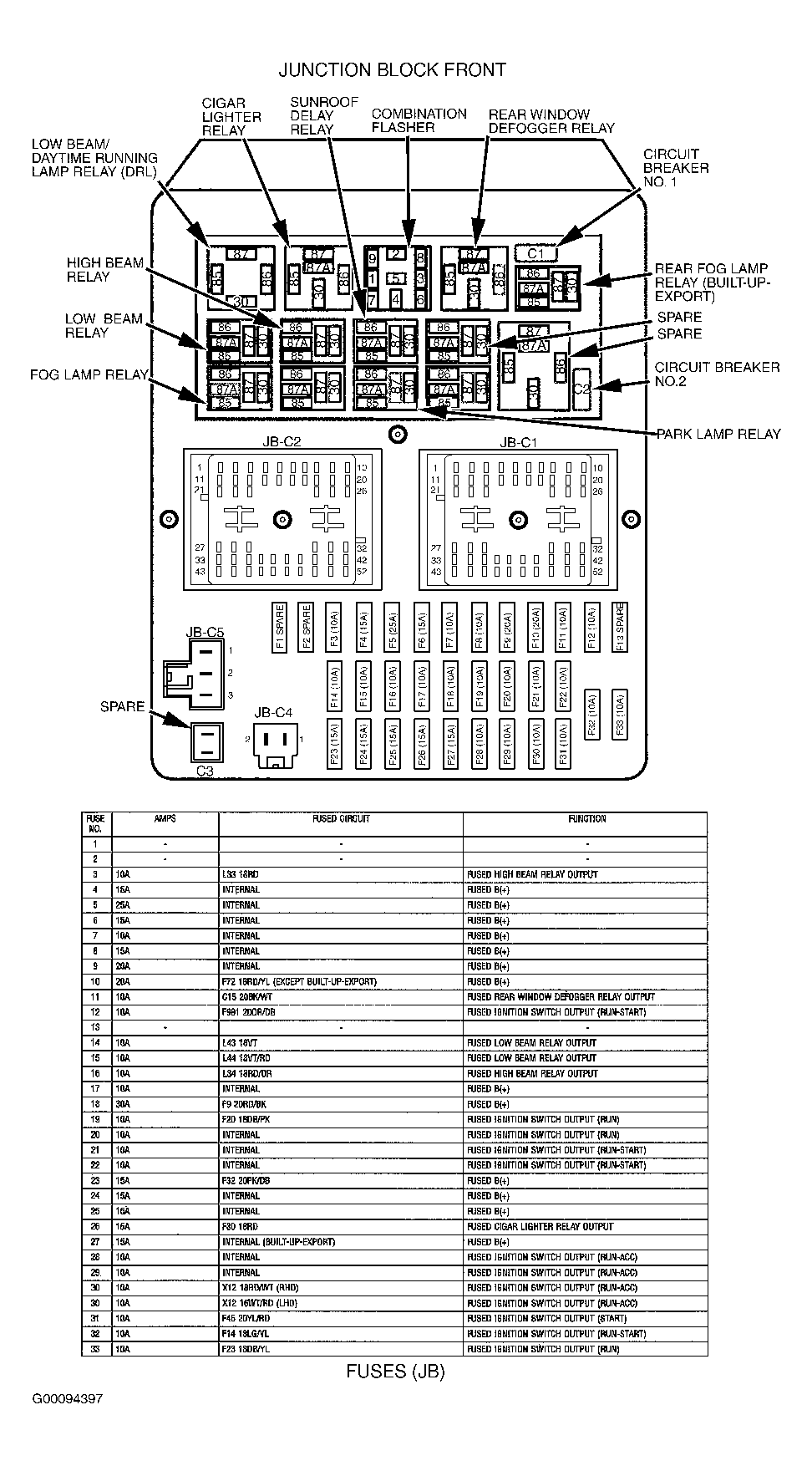

Fig 1: Identifying Junction Block Fuses & Fuse Circuits
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
