Pcm Commentary End View

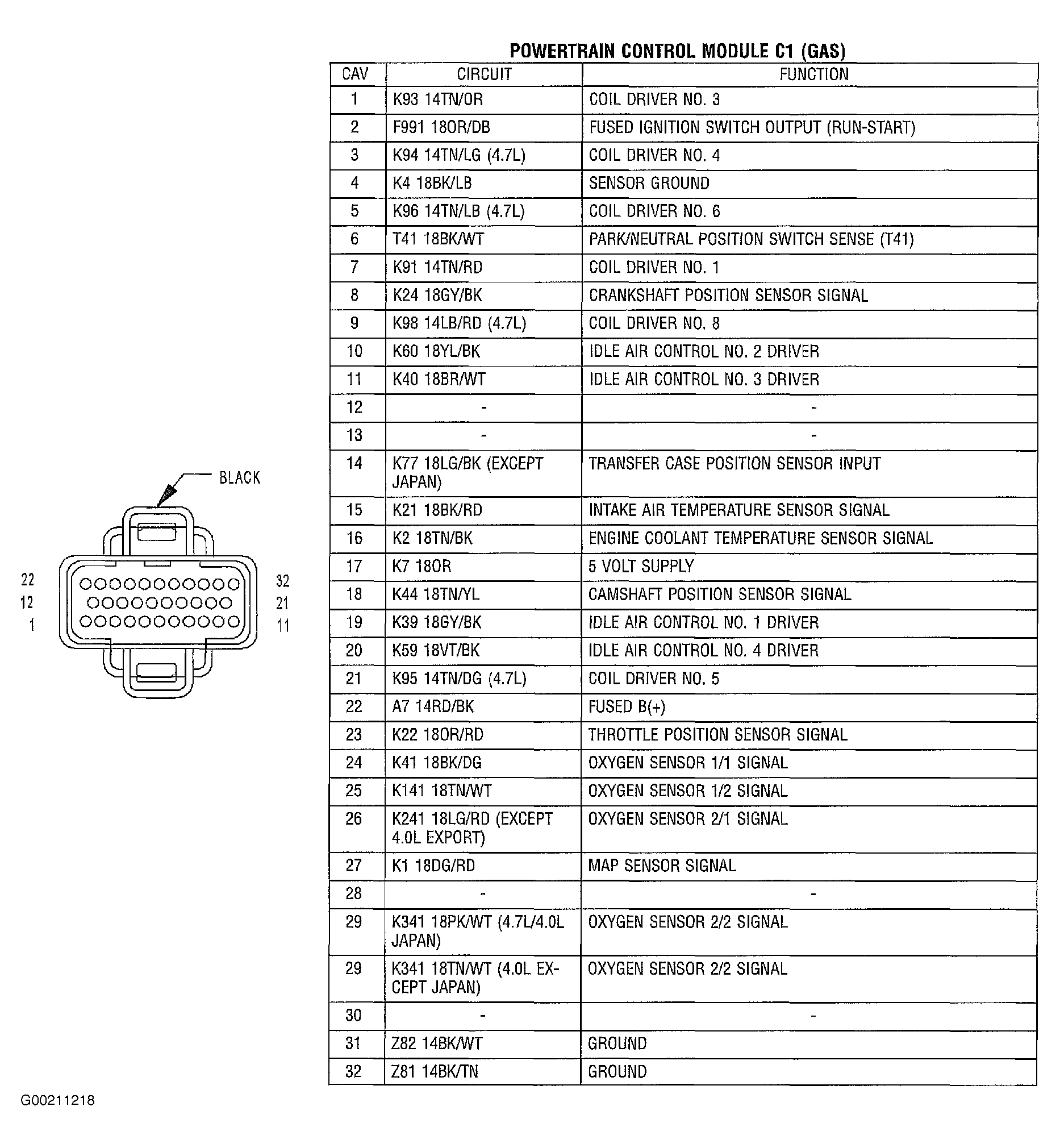

Fig 1: Identifying PCM C1 Harness Connector
G00211218Courtesy of CHRYSLER CORP.

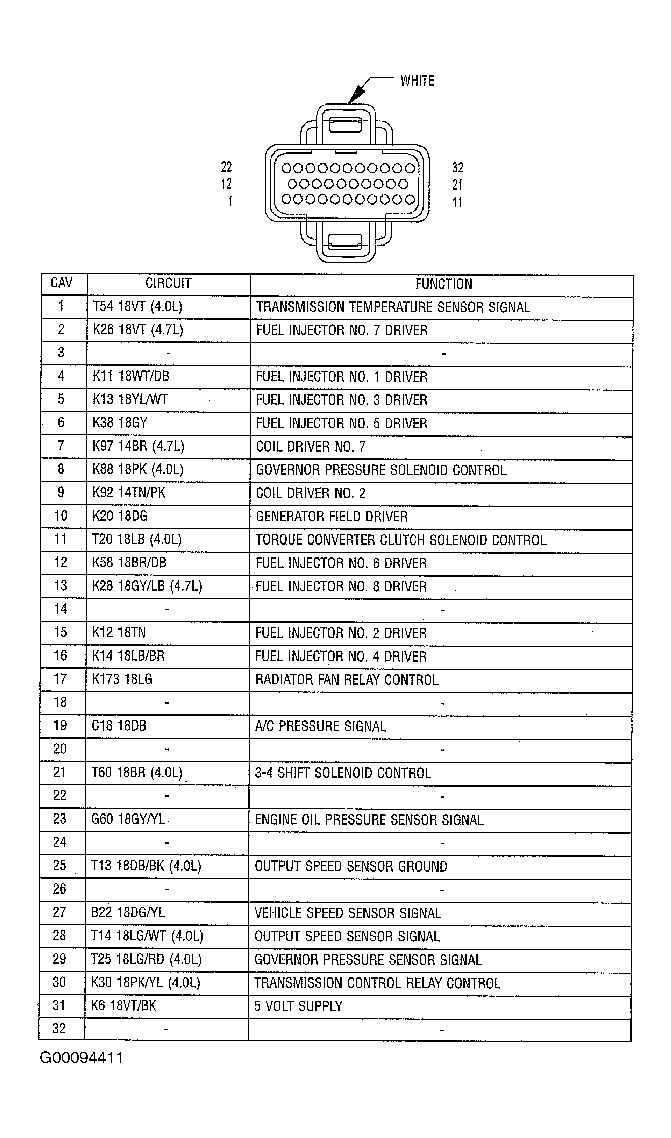

Fig 2: Identifying PCM C2 Harness Connector
G00094411Courtesy of DAIMLERCHRYSLER CORPORATION

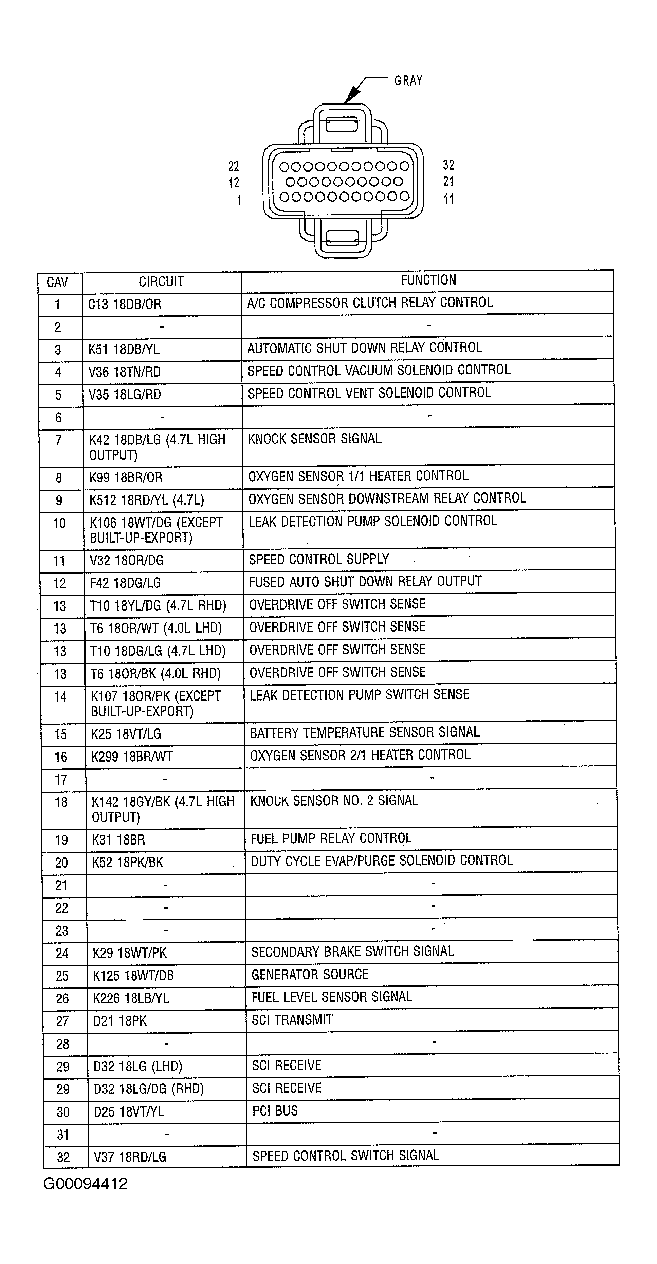

Fig 3: Identifying PCM C3 Harness Connector
G00094412Courtesy of DAIMLERCHRYSLER CORPORATION
