Steering System Linkage: Damper: Removal

  1. Remove the nut from the ball stud at the tie rod.
  2. Remove the steering damper from the tie rod.
  3. Remove the steering damper nut and bolt from the axle bracket (Fig 1).

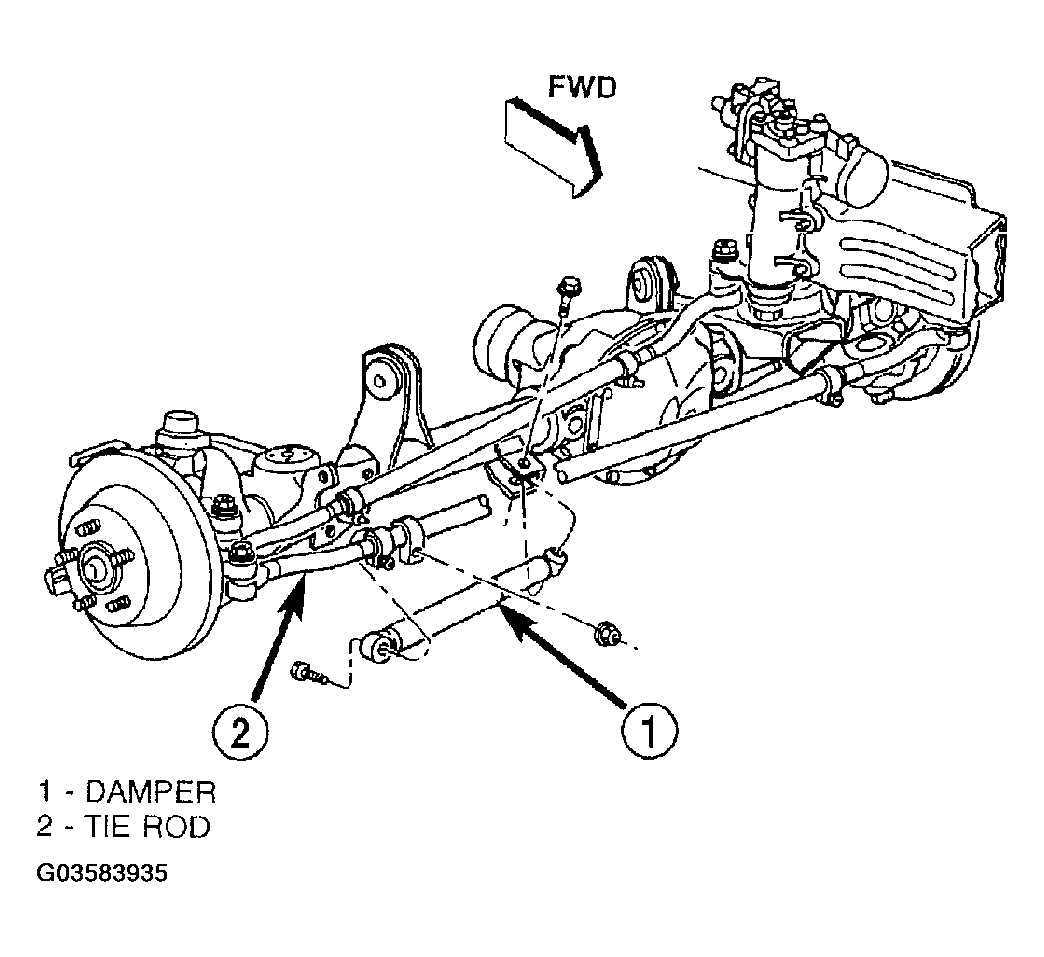

    Fig 1: Steering Damper
    G03583935Courtesy of DAIMLERCHRYSLER CORP.
