Ignition Switch Installation

  1. Before installing ignition switch, rotate the slot in the switch to the ON position (Fig 1 ).

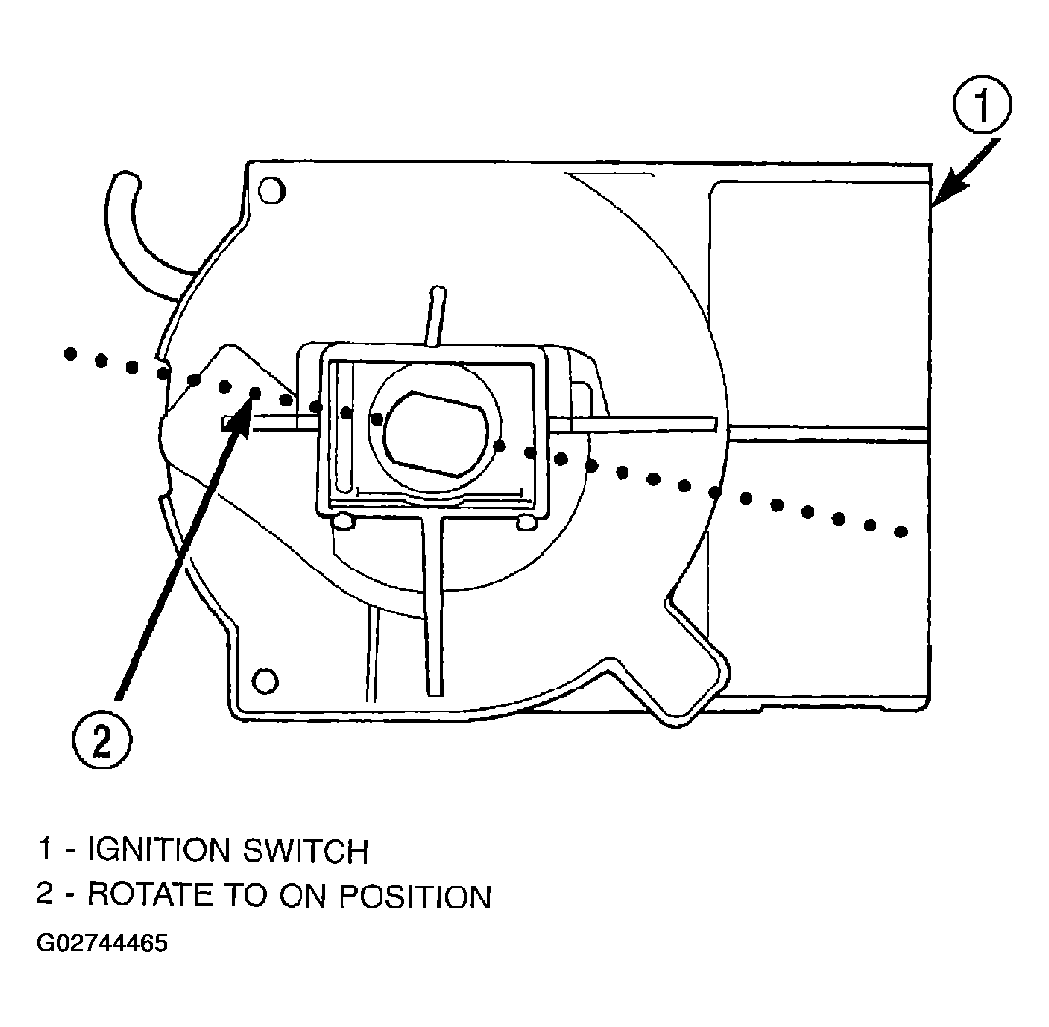

    Fig 1: Placing Switch In ON Position
    G02744465Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect two electrical connectors to rear of ignition switch. Make sure that locking tabs are fully seated into wiring connectors.
  3. Position switch to column and install tamper proof screw. Tighten screw to 3 N.m (26 in. lbs.).
  4. Install steering column lower cover.
