Removal & Installation: Spring: Installation

1. Install the upper isolator.
2. Install the lower isolator with the isolator locator nub in the axle pad hole. See Fig 1.
3. Position the coil spring on the axle spring pad.
   CAUTION: Ensure the spring is positioned on the lower isolator with the end of the spring coil against the isolator spring locator. See Fig 2.
4. Raise the axle and guide the springs onto the spring upper mounts and lower shock studs into the axle brackets.
5. Install the shock absorber lower mounting nuts.
6. Install the track bar to the axle bracket and install the mounting bolt.
   NOTE: It may be necessary to pry the axle assembly over to install the track bar bolt.
7. Remove the hydraulic jack from under the vehicle.
8. Tighten all suspension components to proper torque. See TORQUE SPECIFICATIONS .
9. Install the wheel and tire assemblies.
10. Remove support and lower vehicle.

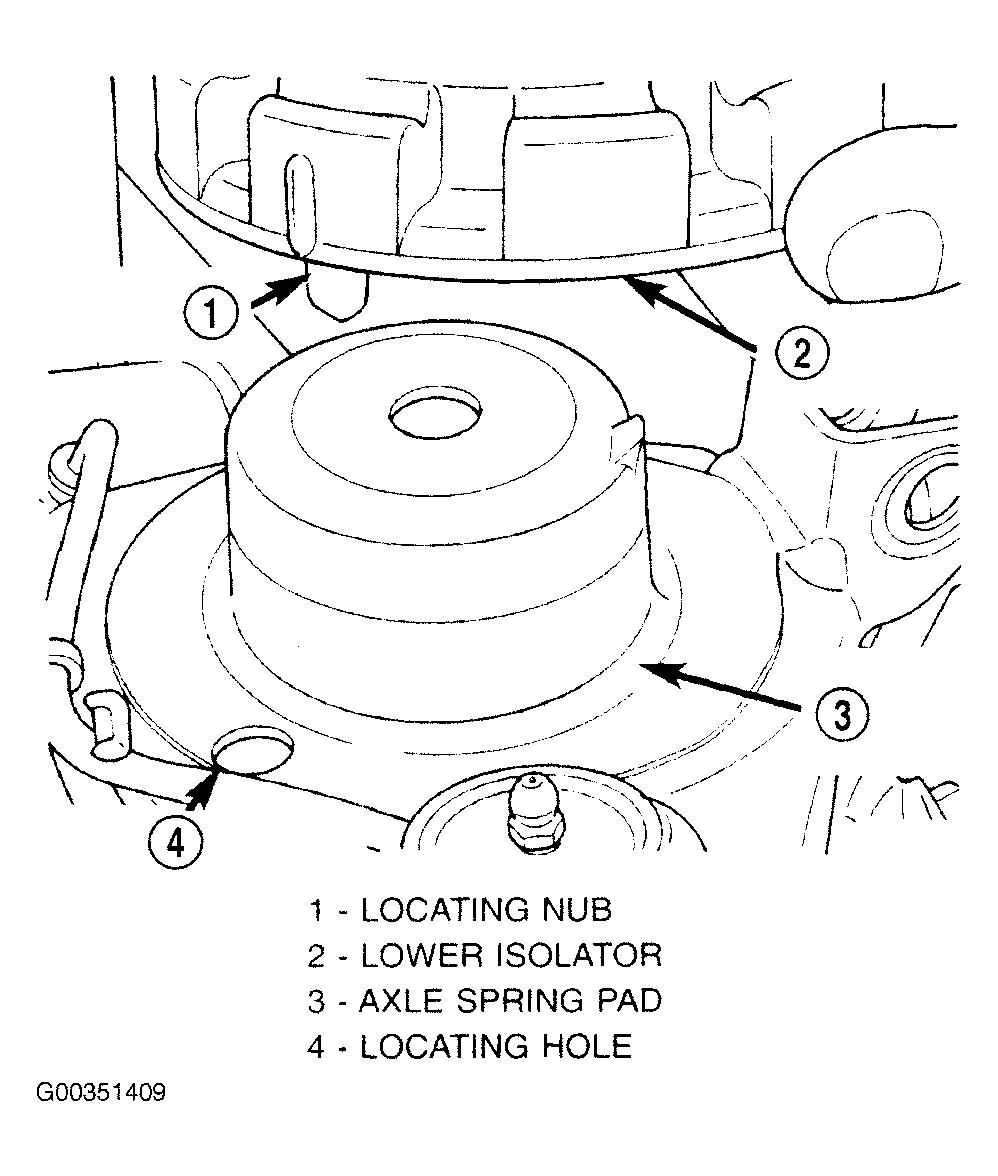

Fig 1: Installing Lower Isolator

Courtesy of CHRYSLER CORP.

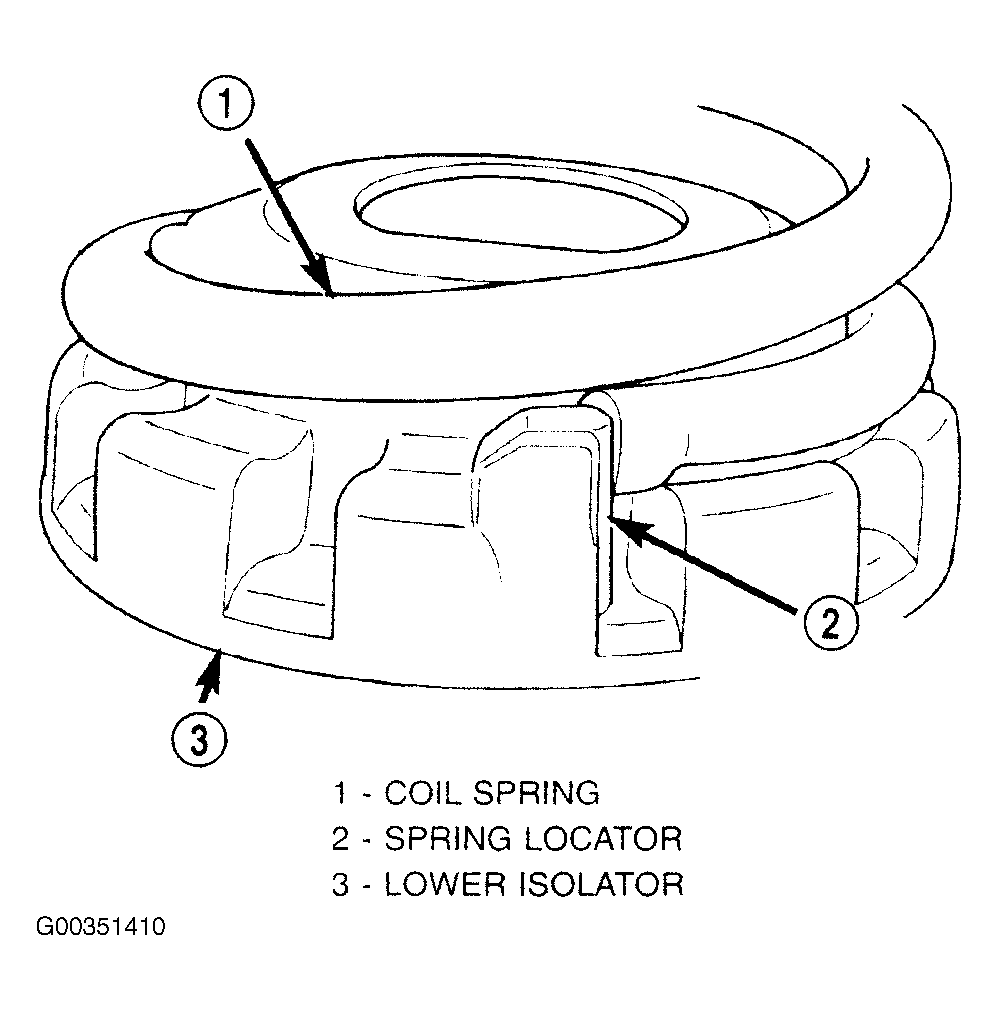

Fig 2: Locating Isolator Spring

Courtesy of CHRYSLER CORP.
