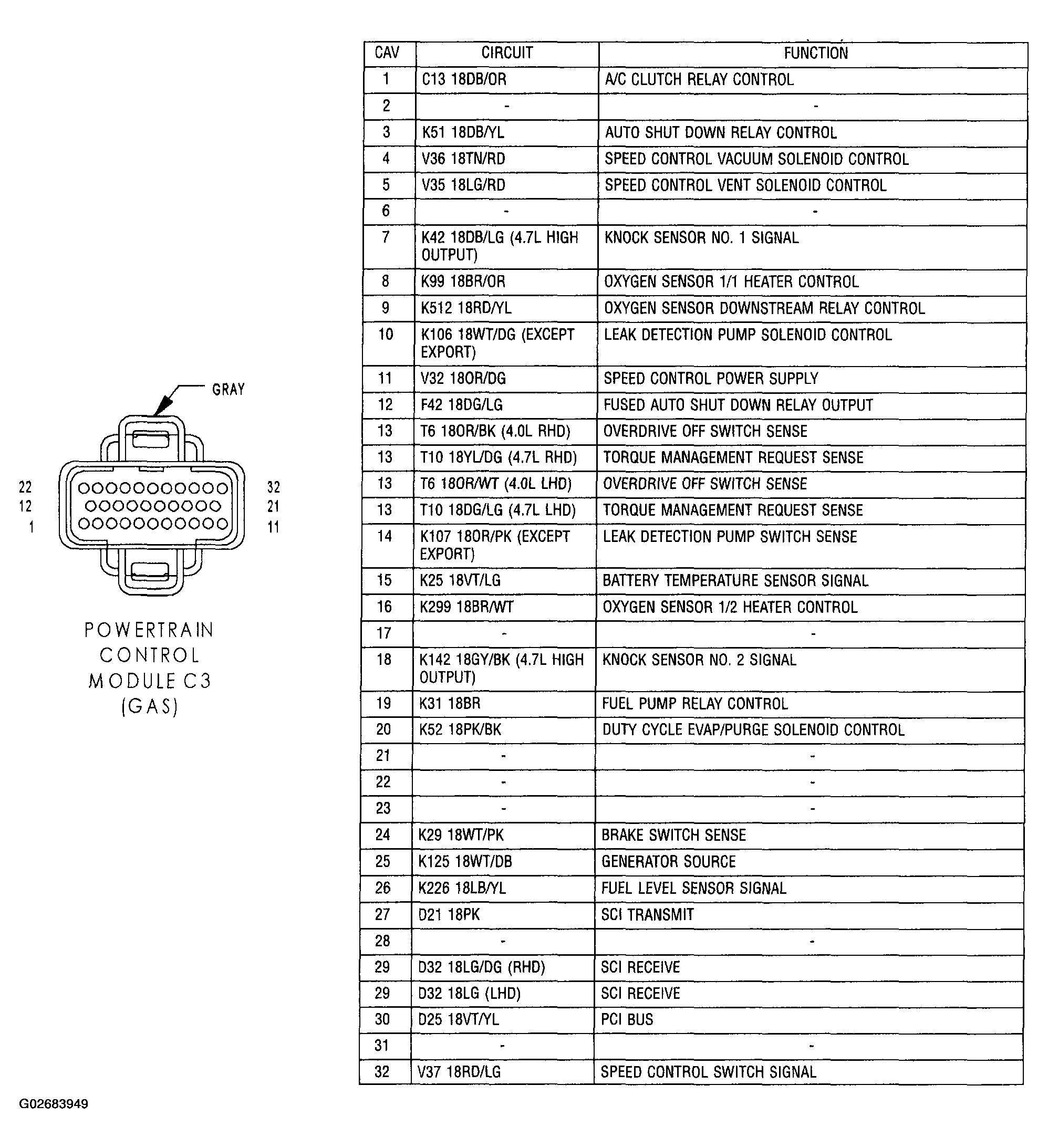

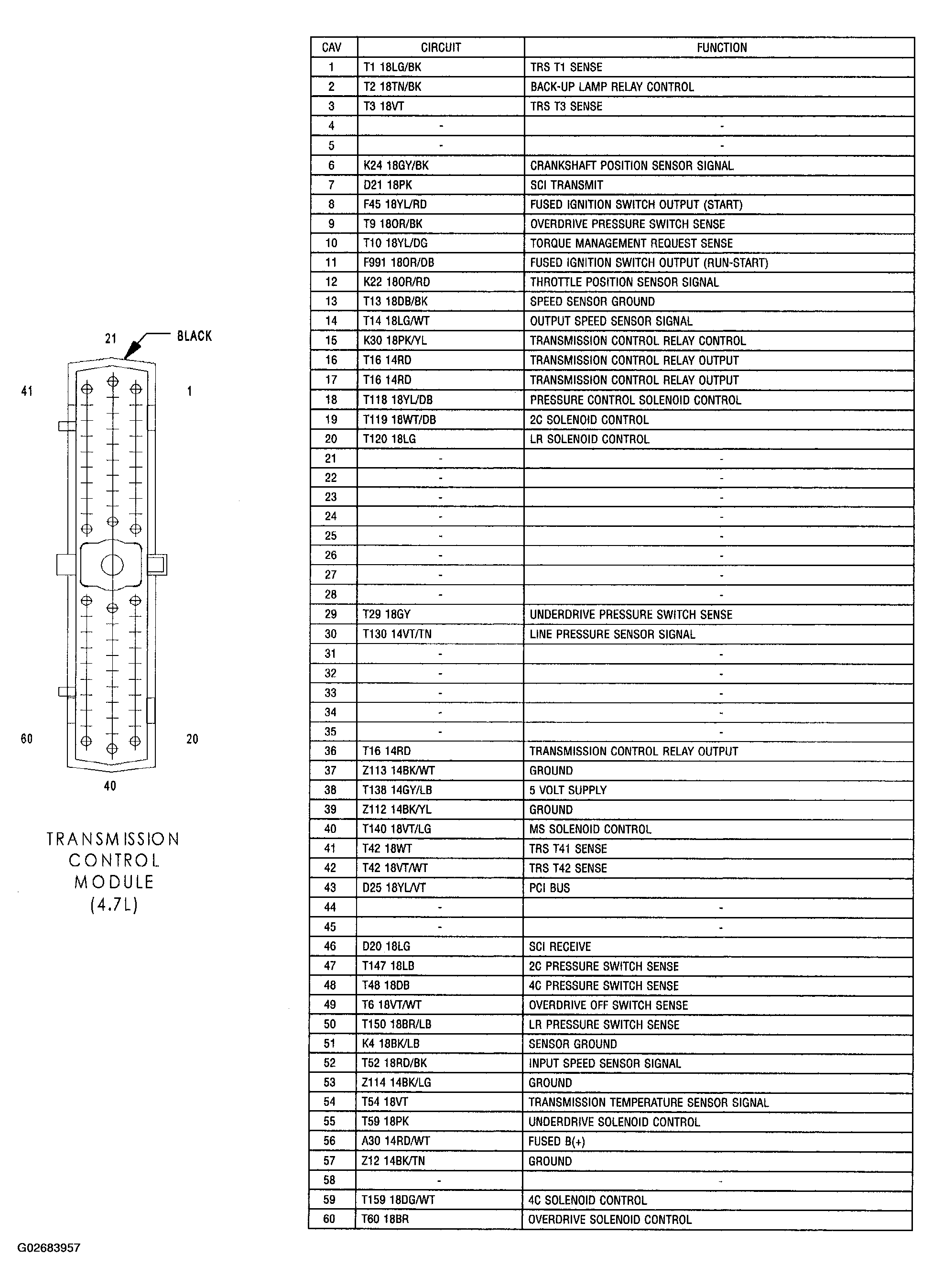

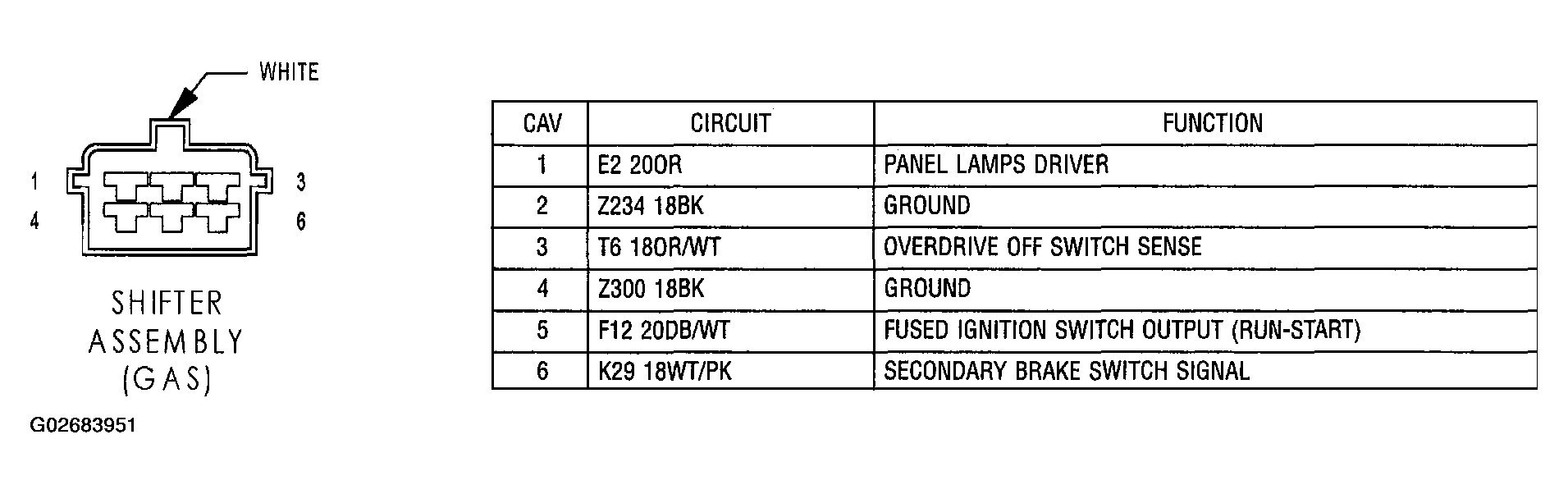

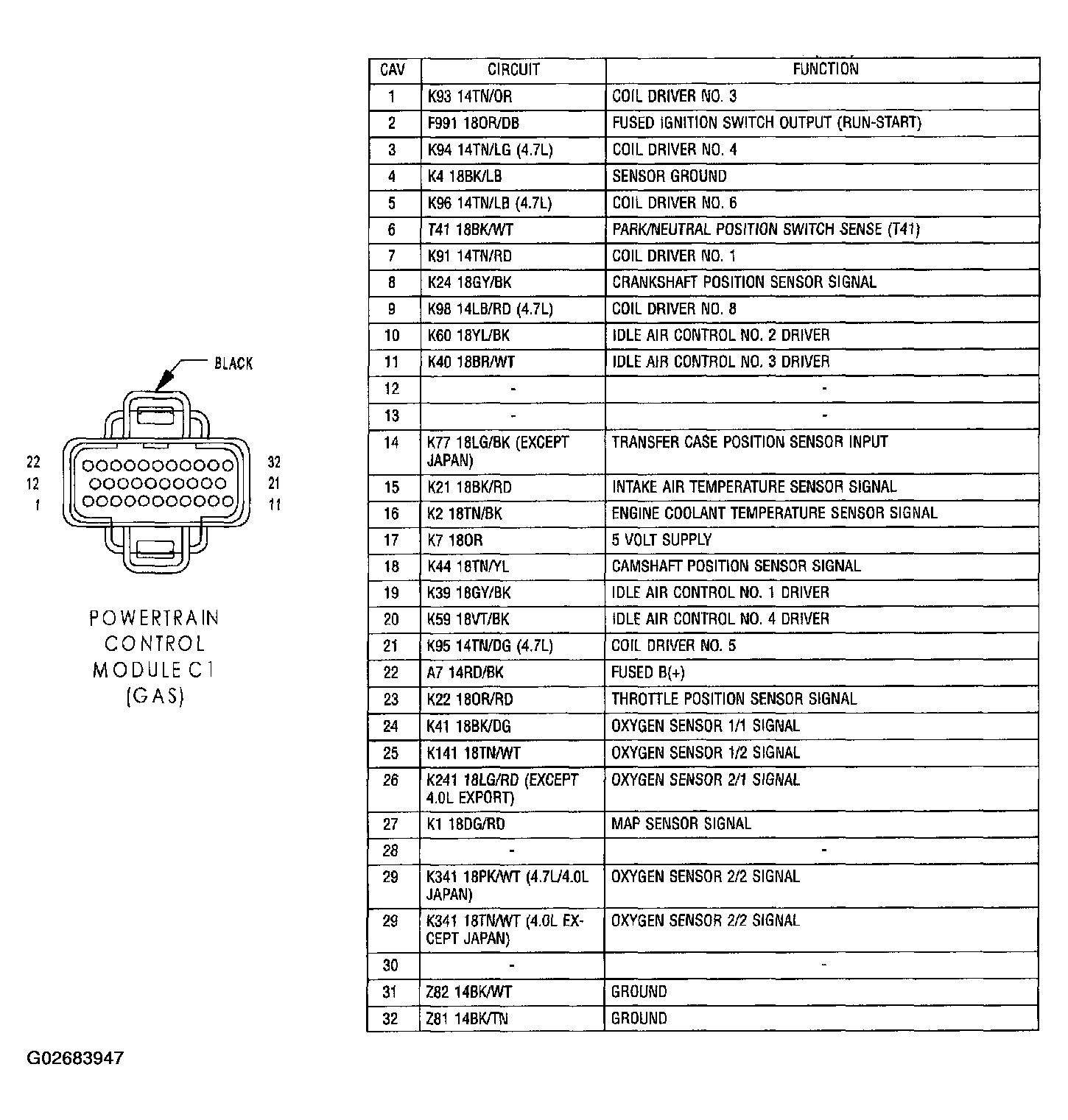

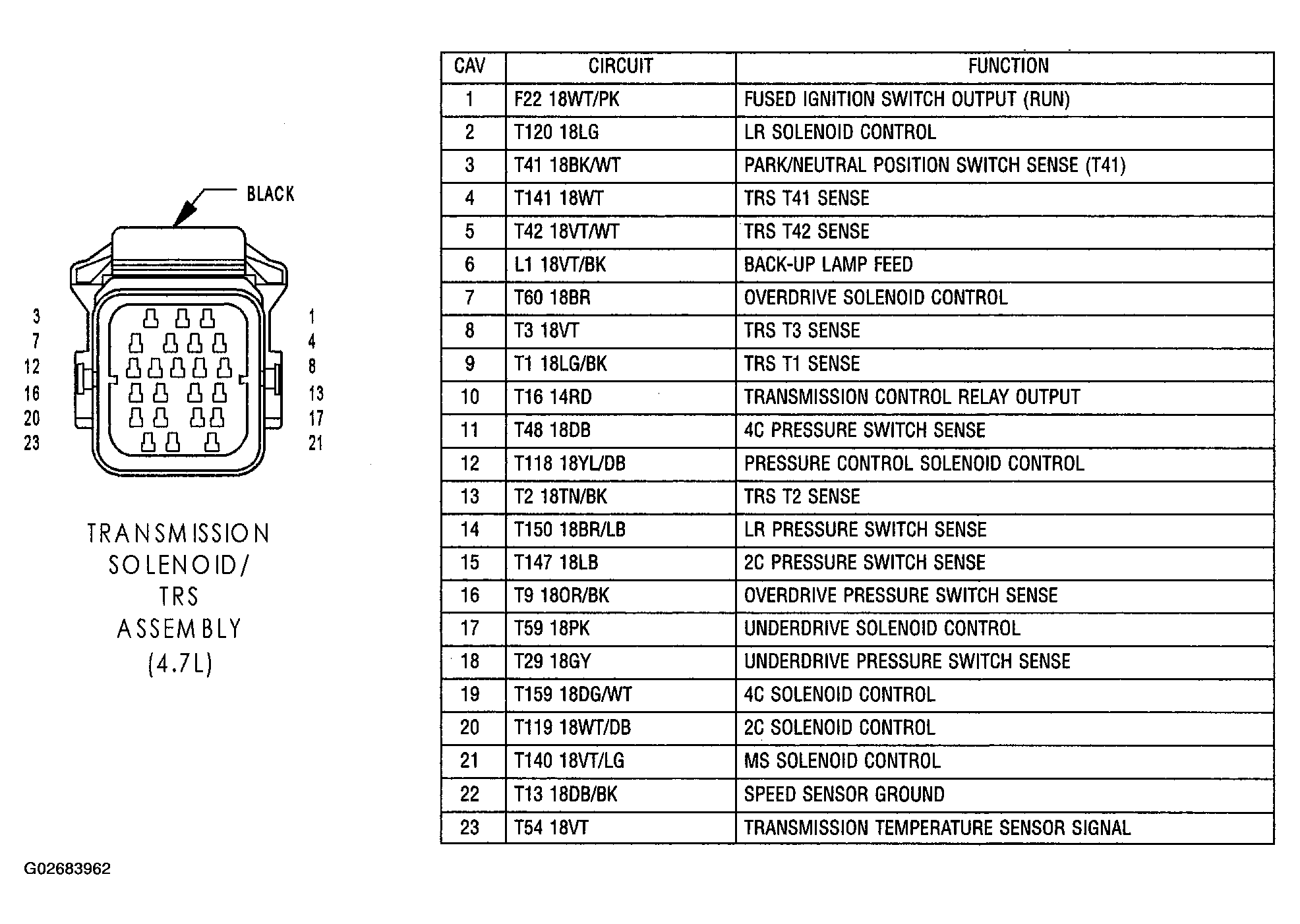

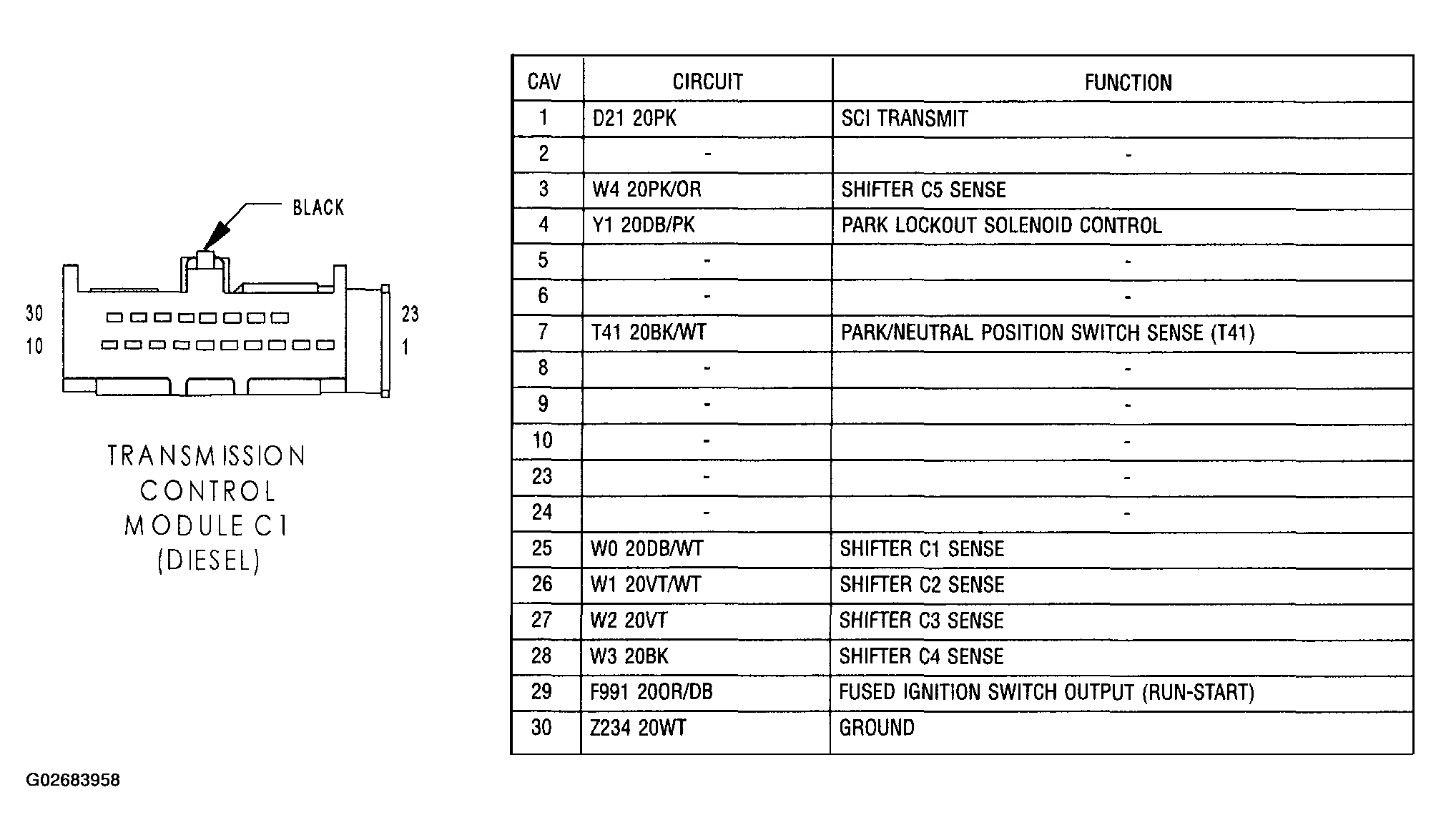

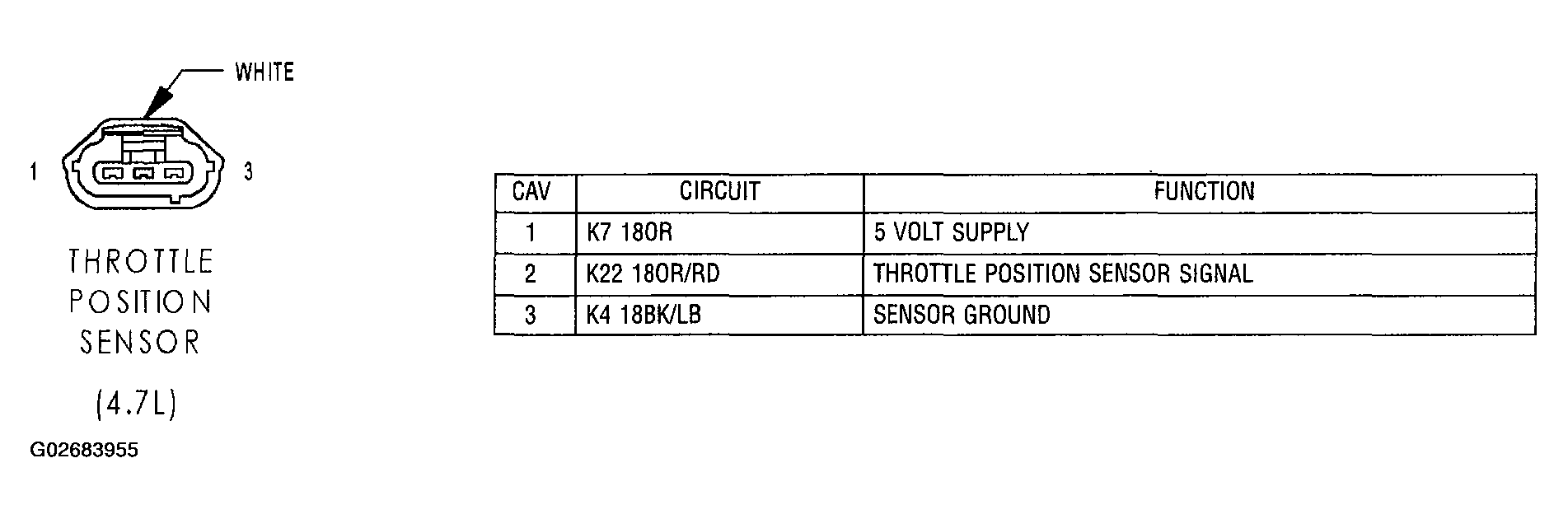

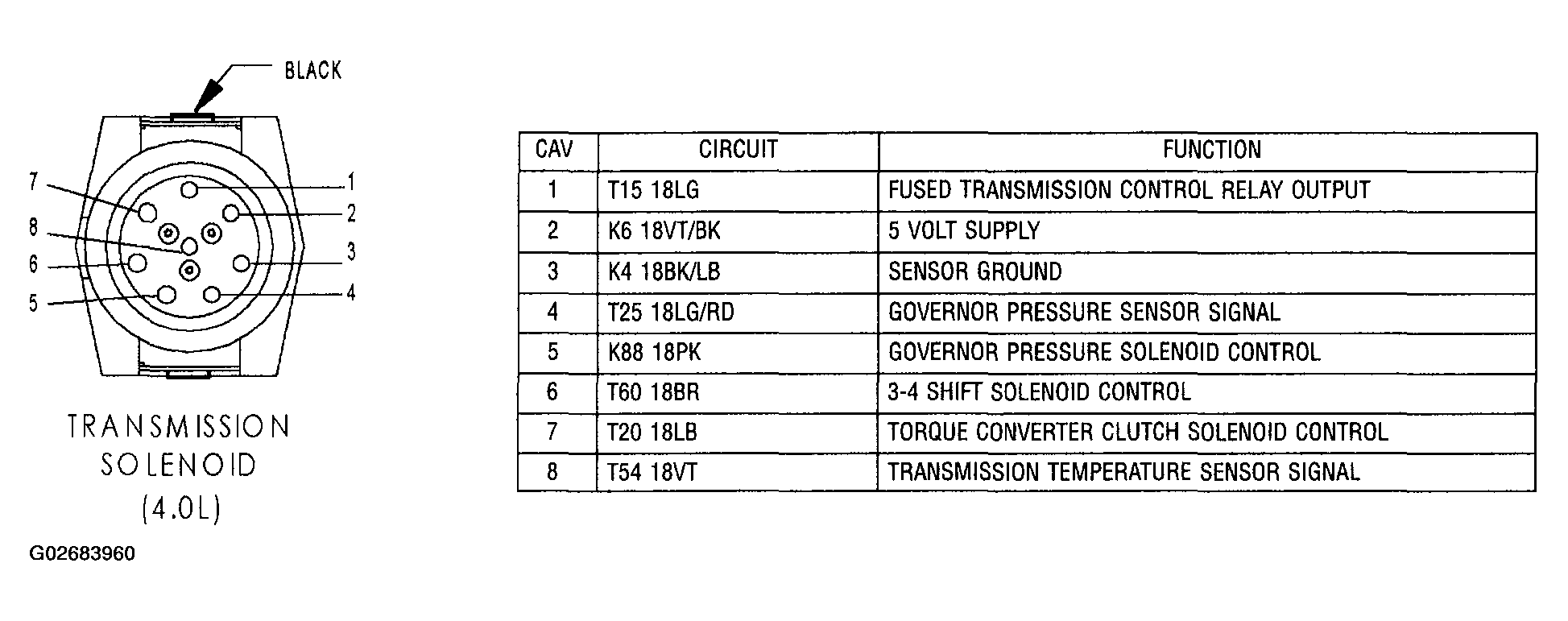

Connector Pin Outs

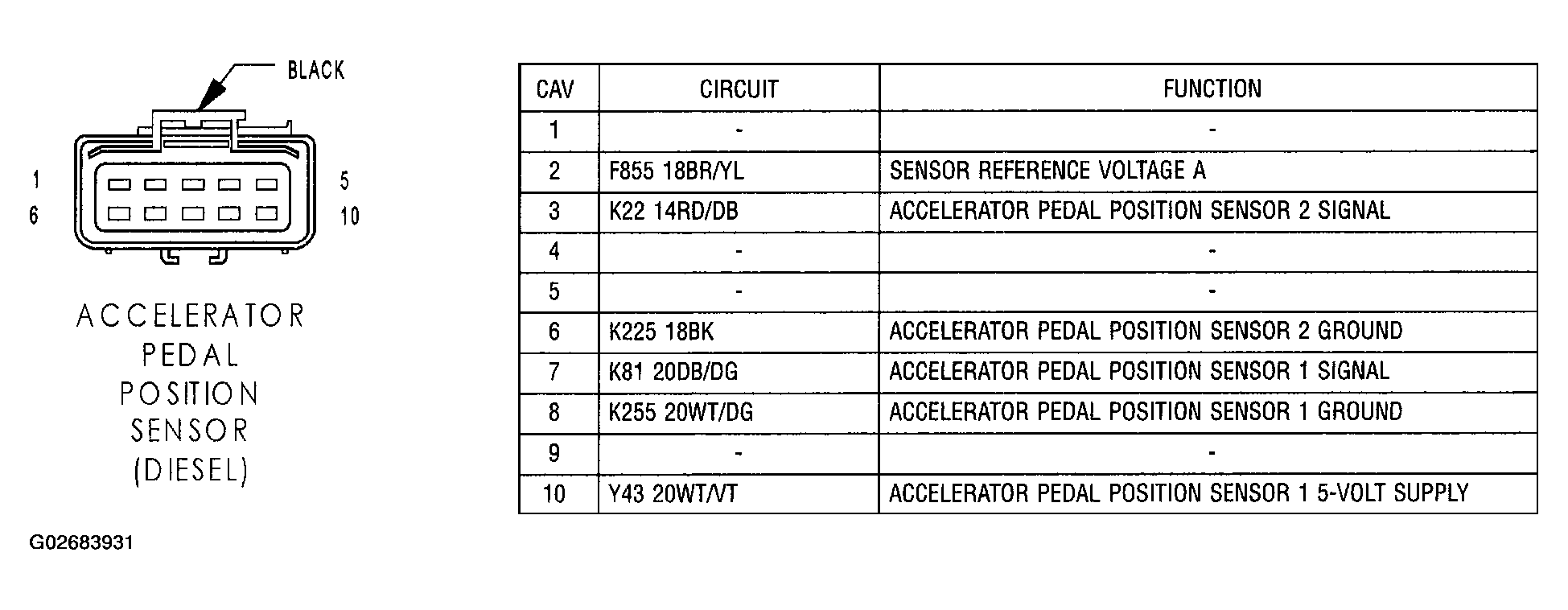

Fig 1: Identifying Accelerator Pedal Position Sensor (Diesel) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

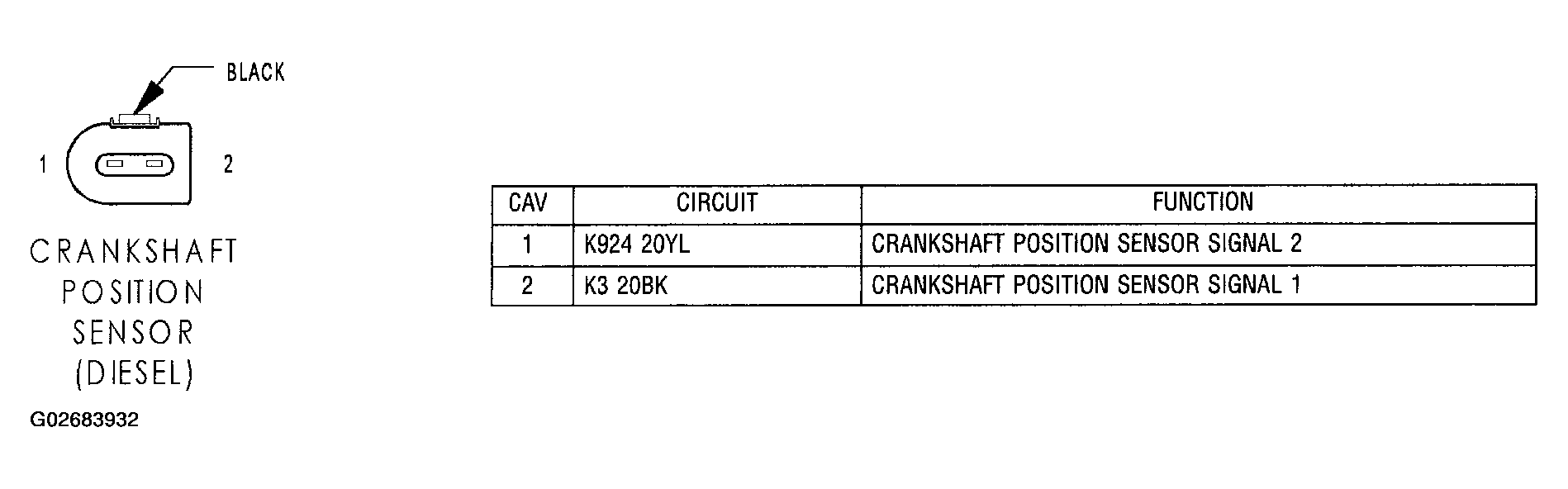

Fig 2: Identifying Crankshaft Position Sensor (Diesel) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

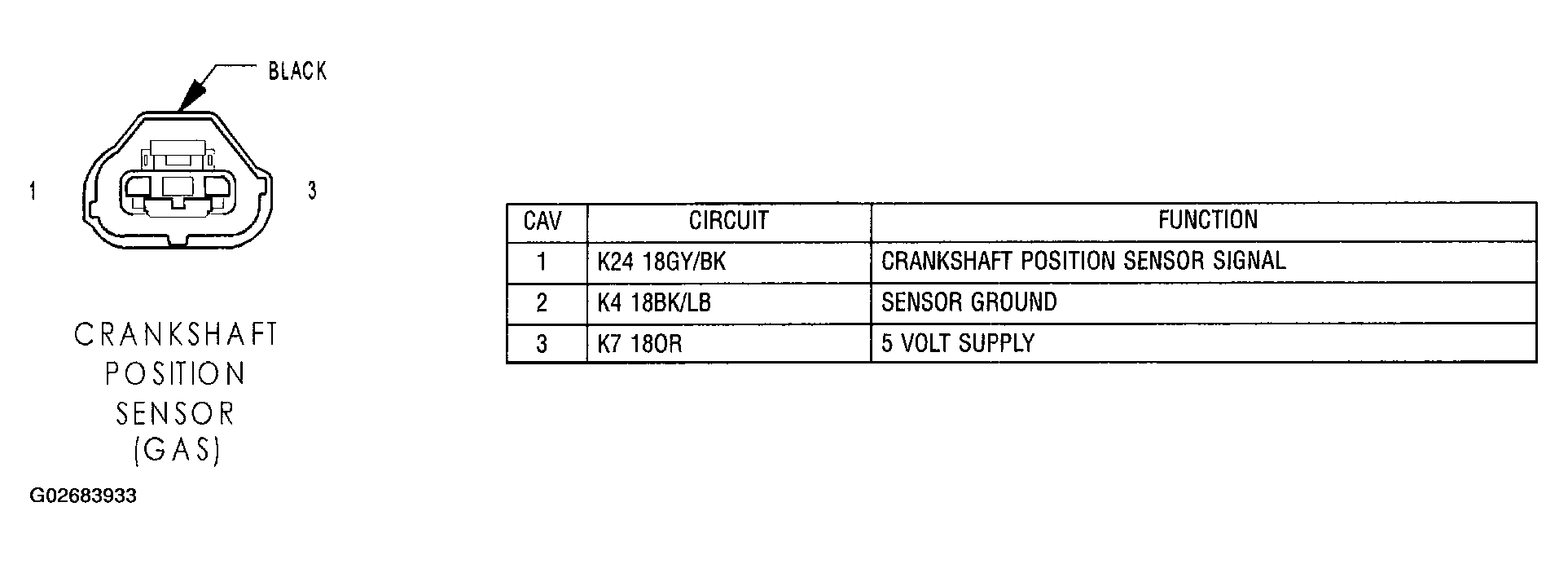

Fig 3: Identifying Crankshaft Position Sensor (Gas) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

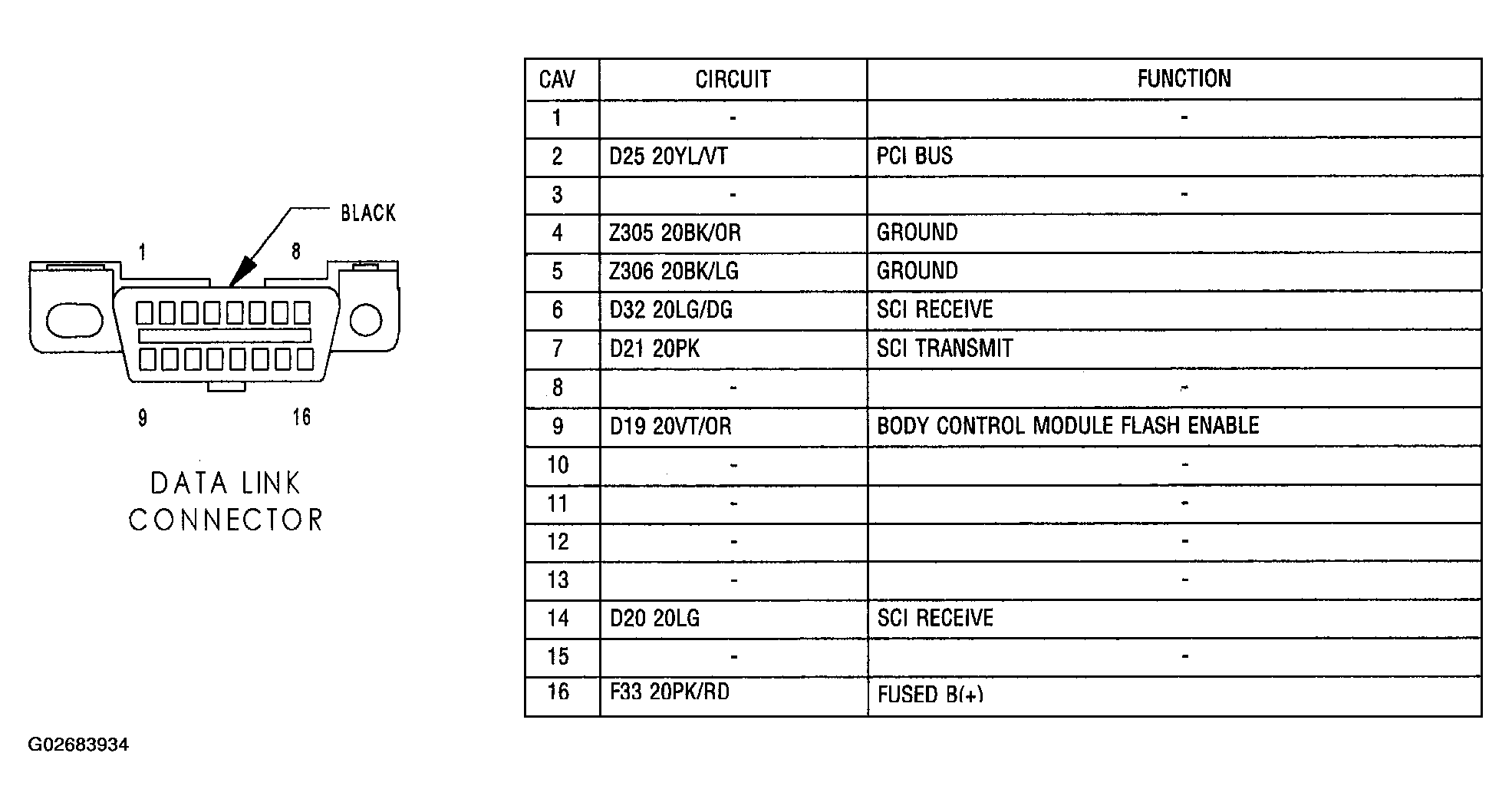

Fig 4: Identifying Data Link Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

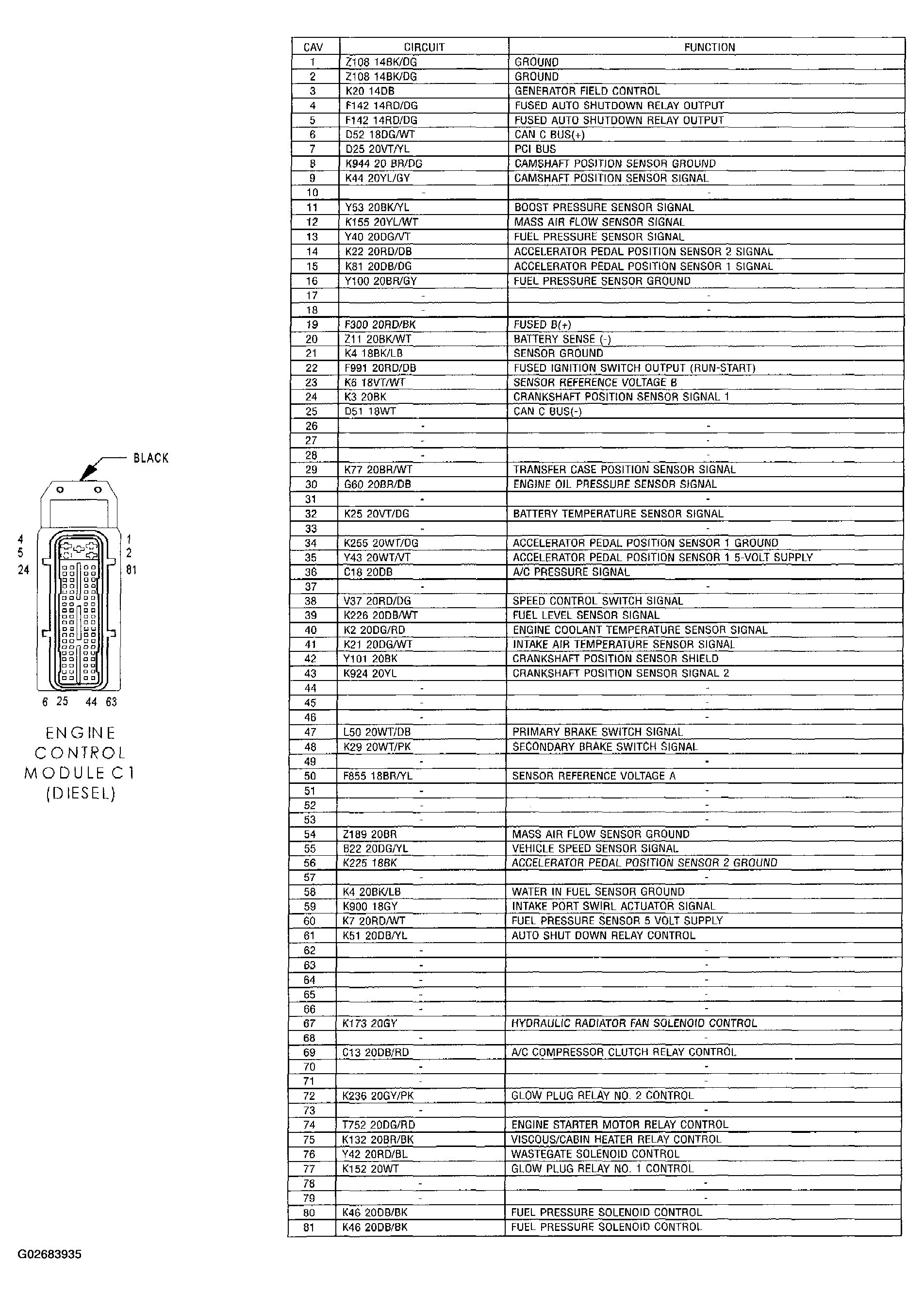

Fig 5: Identifying Engine Control Module C1 (Diesel) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

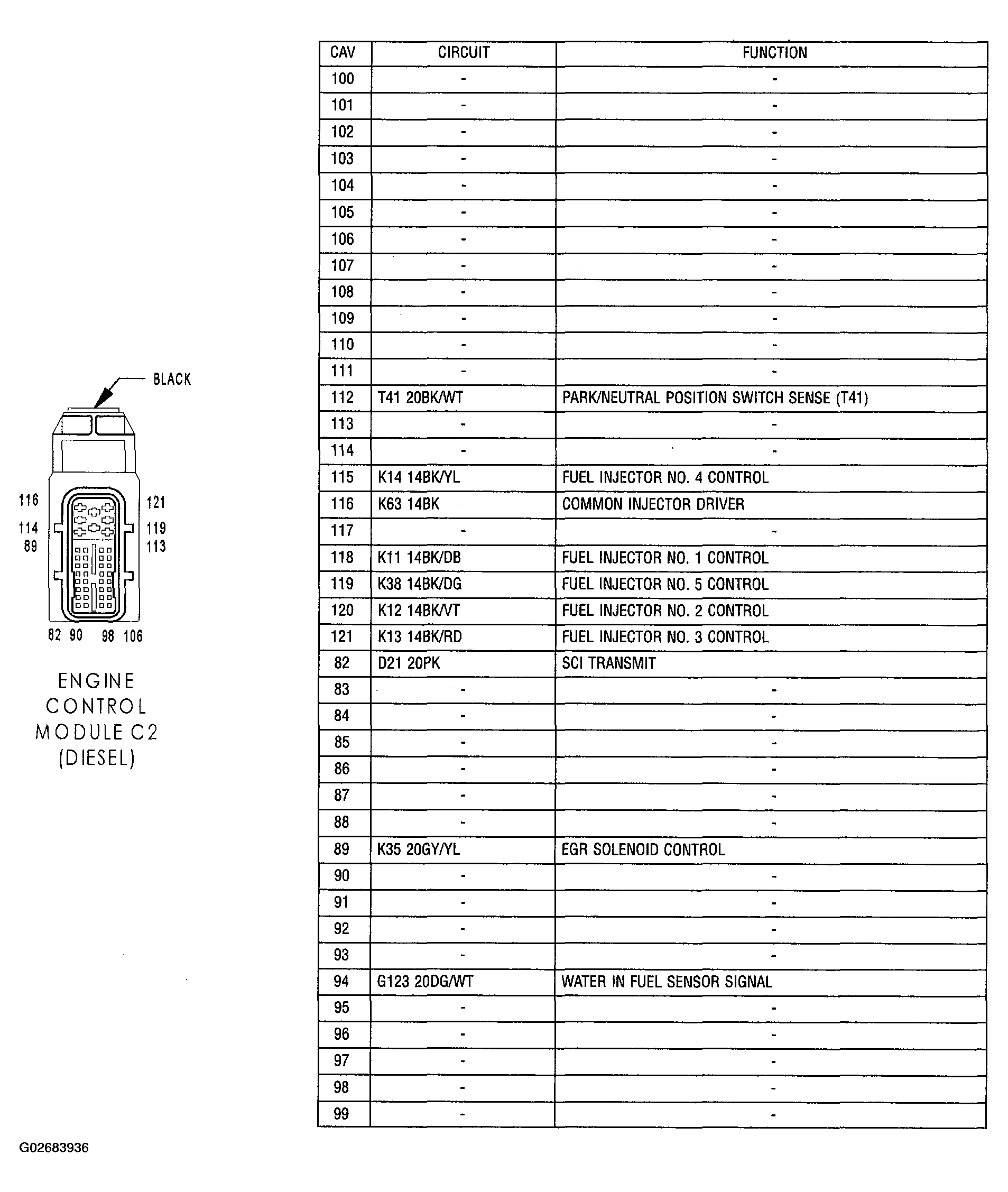

Fig 6: Identifying Engine Control Module C2 (Diesel) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

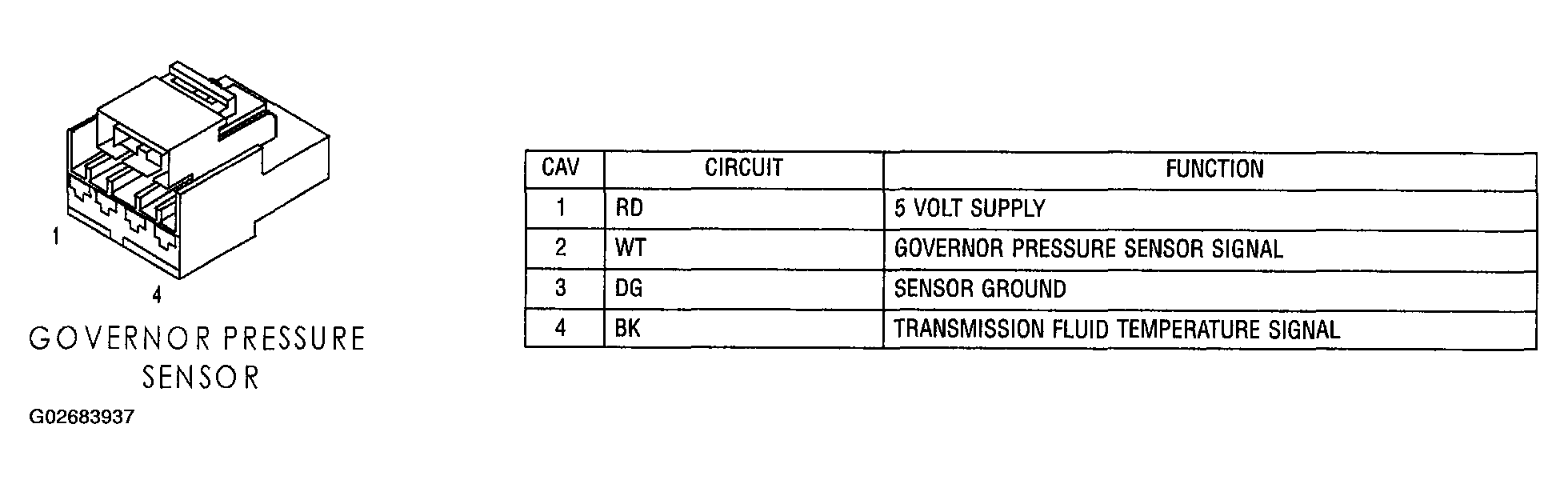

Fig 7: Identifying Governor Pressure Sensor Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

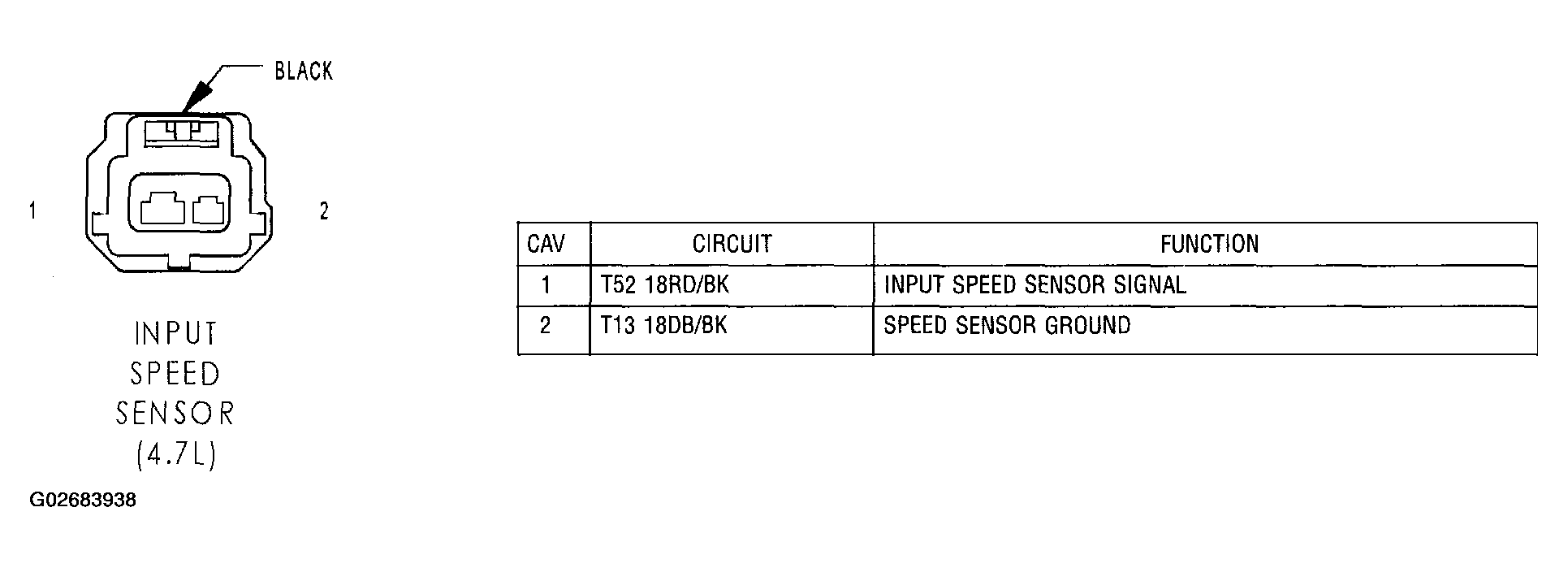

Fig 8: Identifying Input Speed Sensor (4.7L) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

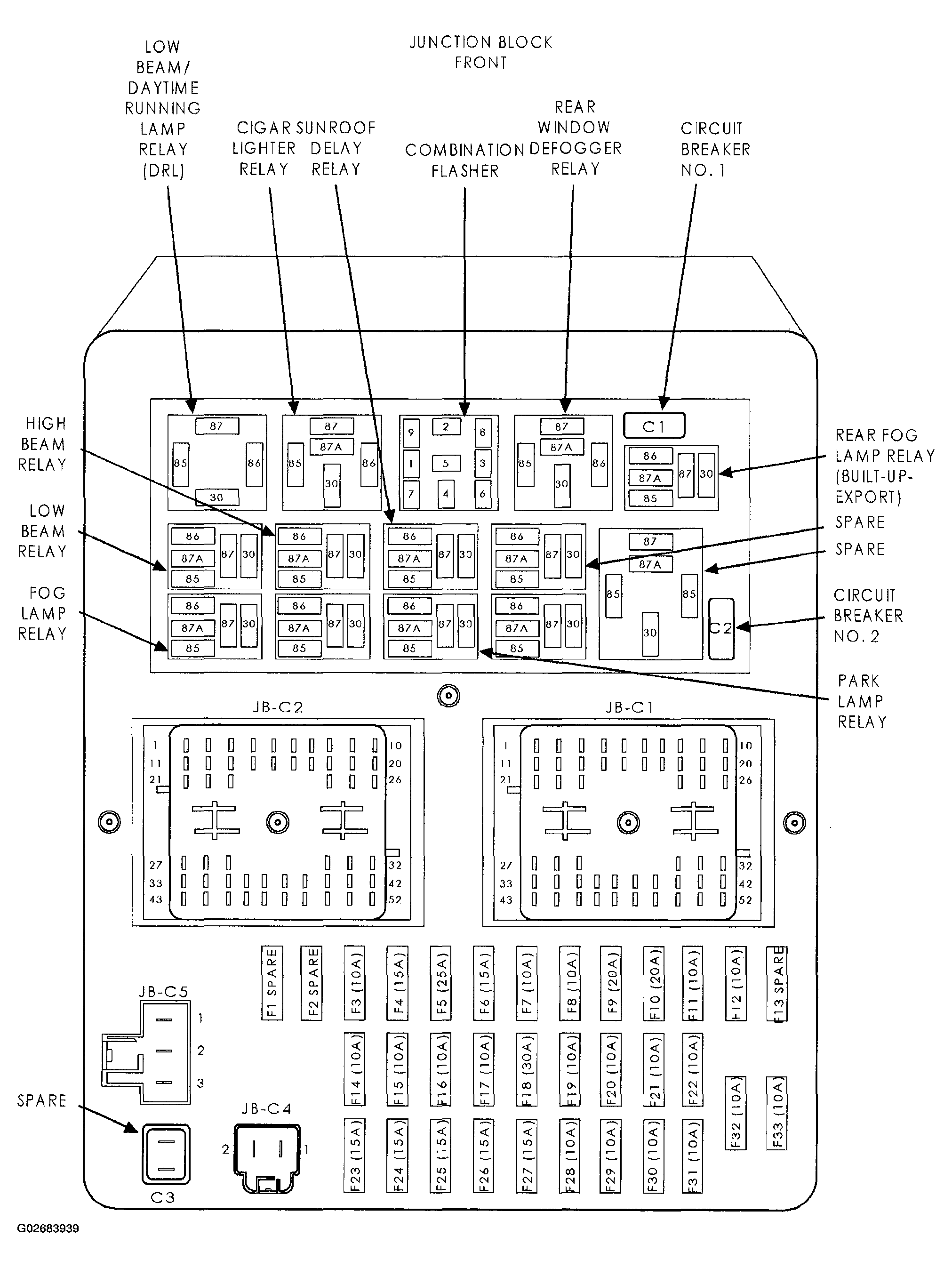

Fig 9: Identifying Junction Block Front Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (JB) CONNECTOR PIN OUTS FUNCTION REFERENCE

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	-	-	-
2	-	-	-
3	10A	L33 18RD	FUSED HIGH BEAM RELAY OUTPUT
4	15A	INTERNAL	FUSED B(+)
5	25A	INTERNAL	FUSED B(+)
6	15A	INTERNAL	FUSED B(+)
7	10A	INTERNAL	FUSED B(+)
8	15A	INTERNAL	FUSED B(+)
9	20A	INTERNAL	FUSED B(+)
10	20A	F72 16RD/YL (EXCEPT EXPORT)	FUSED B(+)
11	10A	C15 20BK/WT	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
12	10A	F991 20OR/DB	FUSED IGNITION SWITCH OUTPUT (RUN-START)
13	-	-	-
14	10A	L43 18VT	FUSED LEFT LOW BEAM OUTPUT
15	10A	L44 18VT/RD	FUSED RIGHT LOW BEAM OUTPUT
16	10A	L34 18RD/OR	FUSED HIGH BEAM RELAY OUTPUT
17	10A	INTERNAL	FUSED B(+)
18	30A	F9 20RD/BK	FUSED B(+)
19	10A	F20 18DB/PK	FUSED IGNITION SWITCH OUTPUT (RUN)
20	10A	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN)
21	10A	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
22	10A	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
23	15A	F32 20PK/DB	FUSED B(+)
24	15A	INTERNAL	FUSED B(+)
25	15A	INTERNAL	FUSED B(+)
26	15A	F30 18RD	FUSED CIGAR LIGHTER RELAY OUTPUT
27	15A	INTERNAL (EXPORT)	FUSED B(+)
28	10A	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
29	10A	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
30	10A	X12 20WT/RD	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
31	10A	F45 20YL/RD	FUSED IGNITION SWITCH OUTPUT (START)
32	10A	F14 18LG/YL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
33	10A	F23 18DB/YL	FUSED IGNITION SWITCH OUTPUT (RUN)

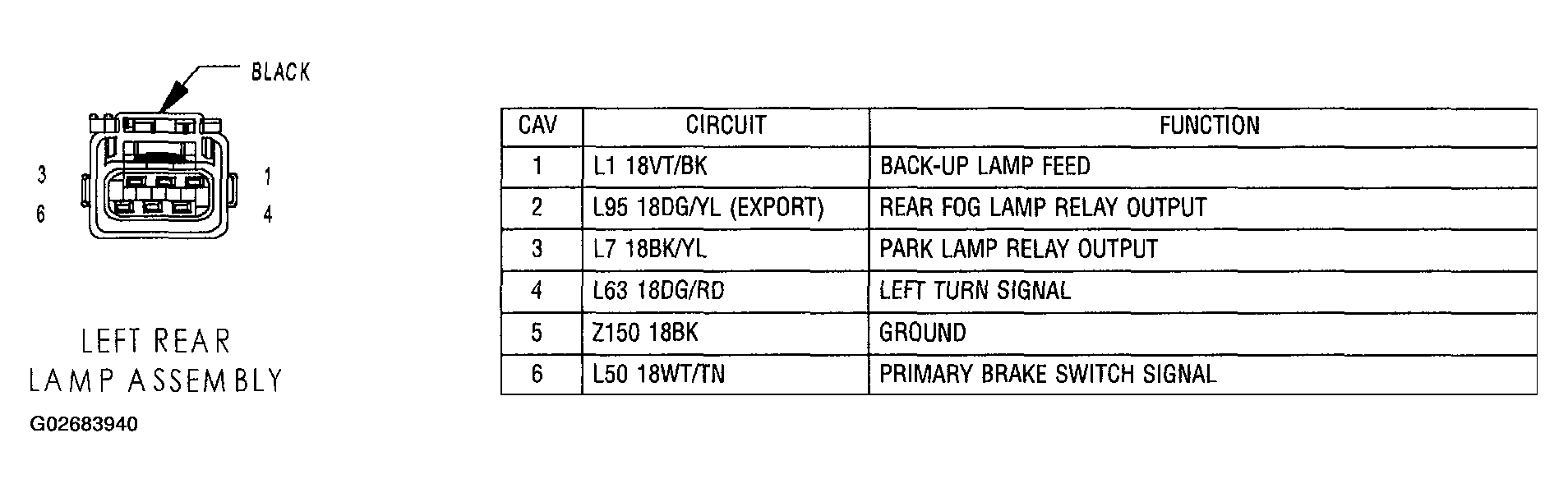

Fig 10: Identifying Left Rear Lamp Assembly Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

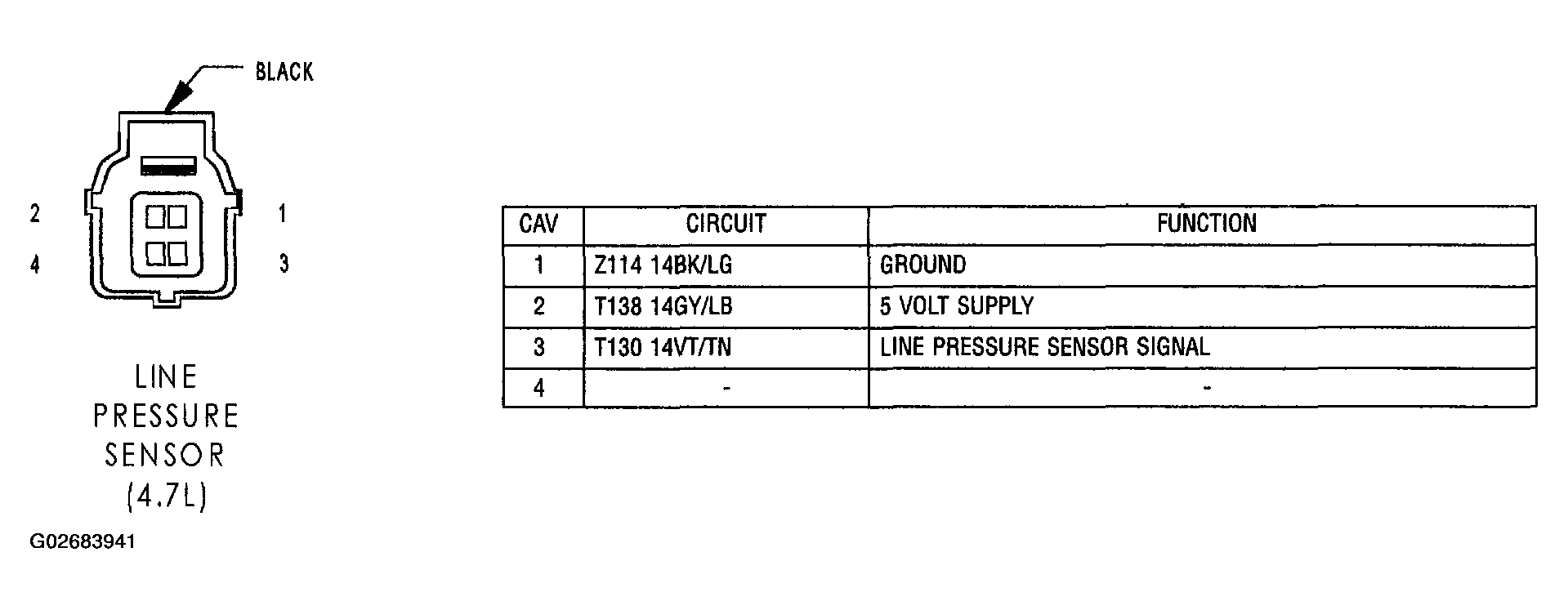

Fig 11: Identifying Line Pressure Sensor (4.7L) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

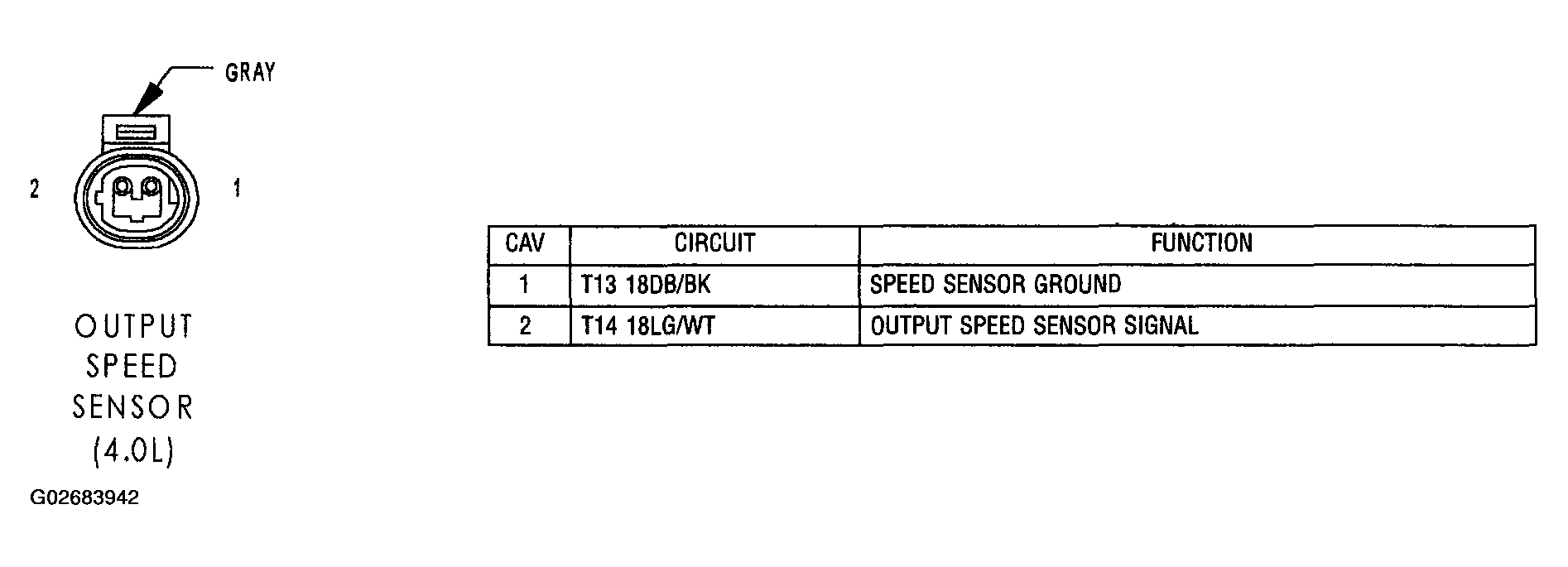

Fig 12: Identifying Output Speed Sensor (4.0L) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

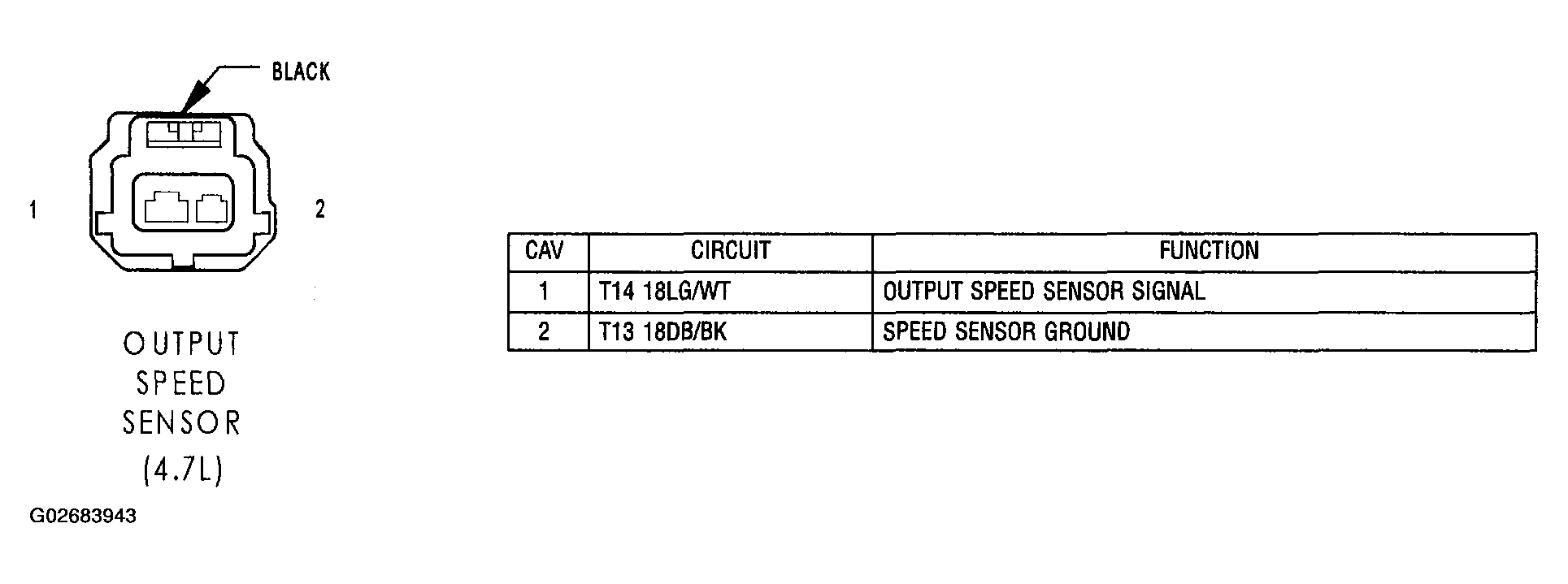

Fig 13: Identifying Output Speed Sensor (4.7L) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

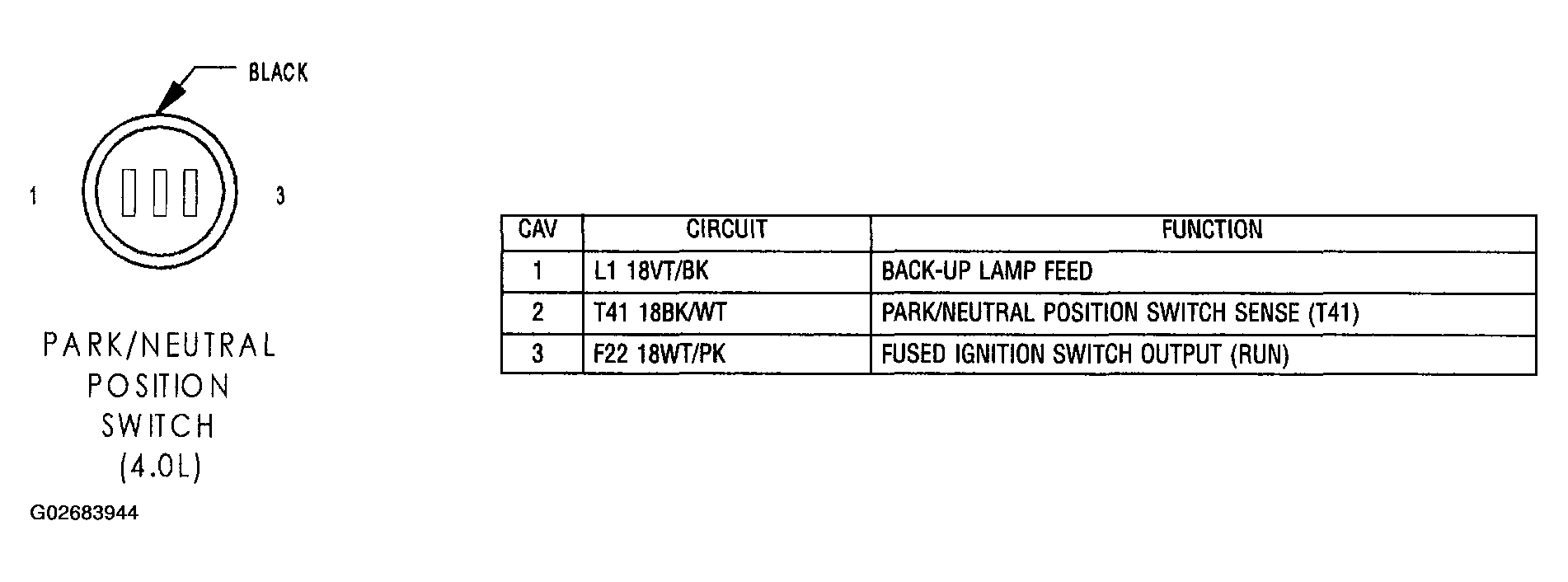

Fig 14: Identifying Park/Neutral Position Switch (4.0L) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

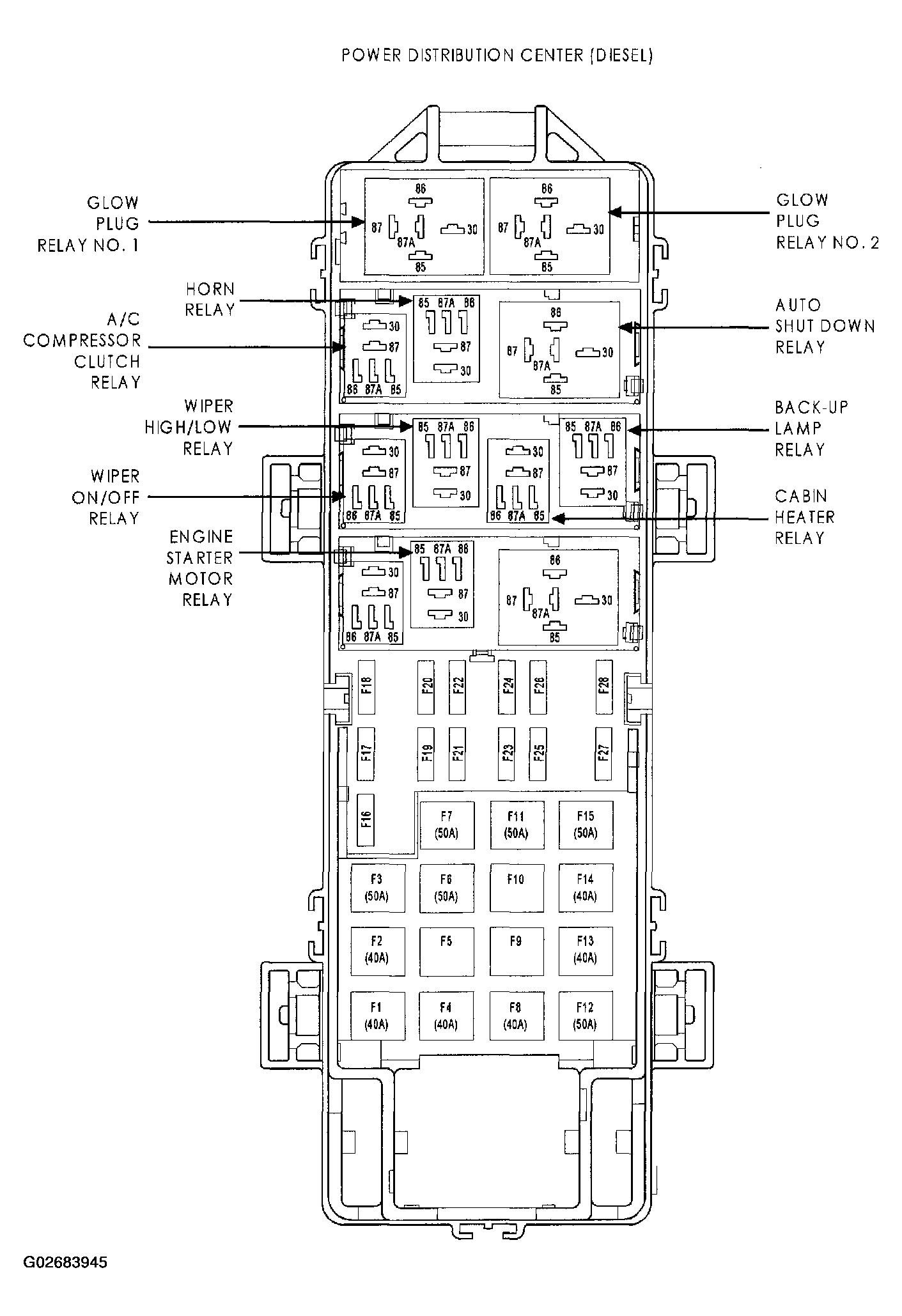

Fig 15: Identifying Power Distribution Center (Diesel) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (DIESEL) CONNECTOR PIN OUTS FUNCTION REFERENCE

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	40A	C1 12DG	FUSED B(+)
2	40A	A149 12RD/TN	FUSED B(+)
3	50A	A145 10WT/RD	FUSED B(+)
4	40A	A10 12RD/DG	FUSED B(+)
5	-	-	-
6	50A	A105 10DB/RD	FUSED B(+)
7	50A	A147 10RD/GY	FUSED B(+)
8	40A	A1 12RD	FUSED B(+)
9	-	-	-
10	-	-	-
11	50A	A110 10VT/RD	FUSED B(+)
12	50A	A146 100R/WT	FUSED B(+)
13	40A	A14 14RD/WT	FUSED B(+)
14	40A	A2 12PK/BK	FUSED B(+)
15	50A	A148 10PK/WT	FUSED B(+)
16	20A	F15 18 DB/WT	FUSED AUTO SHUT DOWN RELAY OUTPUT
16	20A	F15 18DB/WT	FUSED AUTO SHUT DOWN RELAY OUTPUT
17	-	-	-
18	15A	F62 18RD	FUSED B(+)
18	15A	F62 18RD	FUSED B(+)
19	-	-	-
20	-	-	-
21	15A	A17 14RD/BK	FUSED B(+)
22	10A	F300 18RD/BK	FUSED B(+)
23	15A	A80 18RD/LG	FUSED B(+)
24	-	-	-
25	20A	A20 12RD/DB	FUSED B(+)
26	20A	F142 14OR/DG	FUSED AUTO SHUT DOWN RELAY OUTPUT
27	20A	A148 16LG/RD	FUSED B(+)
28	-	-	-

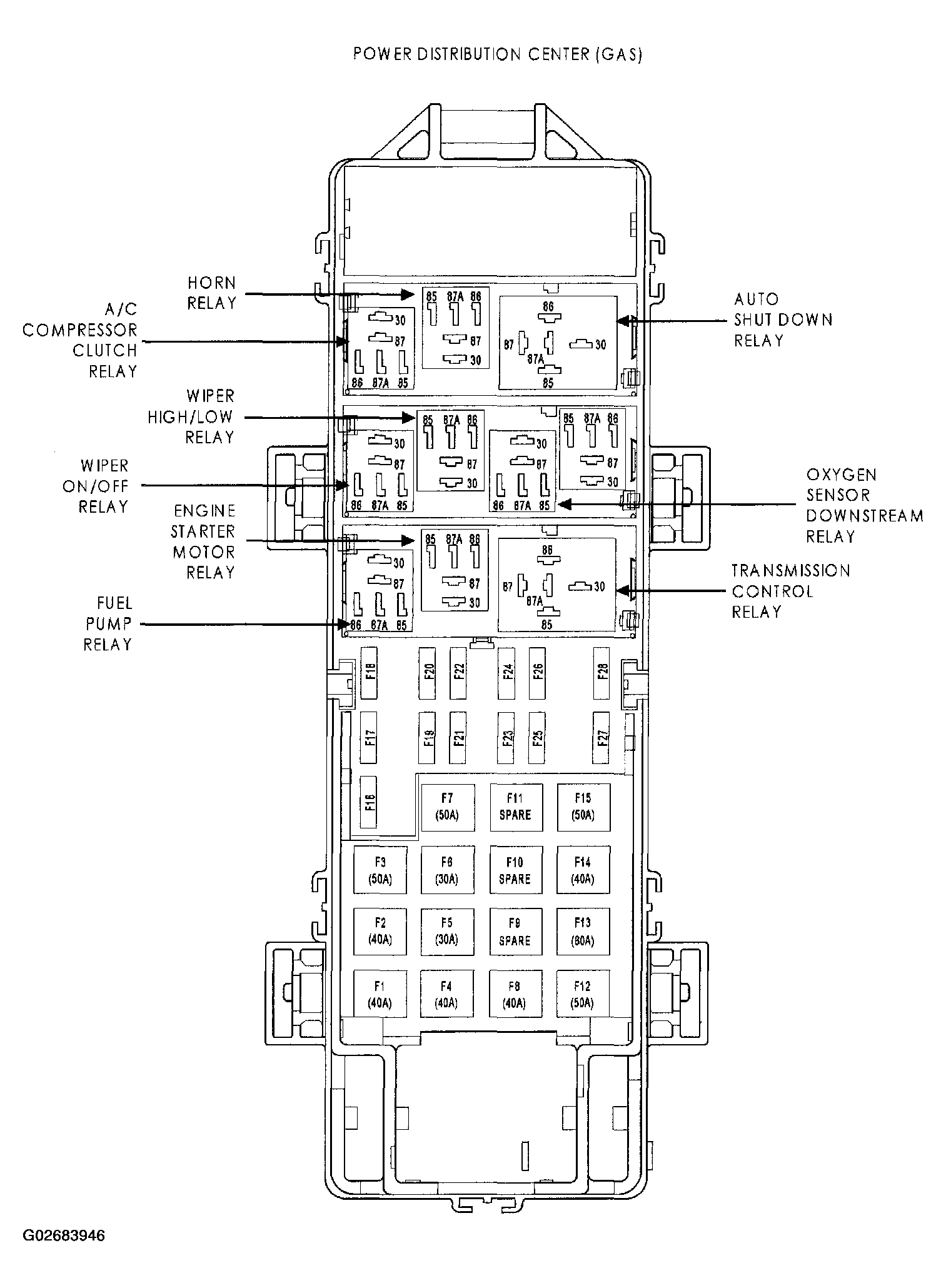

Fig 16: Identifying Power Distribution Center (Gas) Connector Pin Outs

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (GAS) CONNECTOR PIN OUTS FUNCTION REFERENCE

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	40A	C1 12DG	FUSED B(+)
2	40A	A149 12RD/TN	FUSED B(+)
3	50A	A145 10WT/RD	FUSED B(+)
4	40A	A10 12RD/DG	FUSED B(+)
5	30A	A30 14RD/WT	FUSED B(+)
5	30A	A30 14RD/WT (4.7L)	FUSED B(+)
6	30A	A14 14RD/DG	FUSED B(+)
7	50A	A147 10RD/GY	FUSED B(+)
8	40A	A1 12RD	FUSED B(+)
9	-	-	-
10	40	A16 12GY (4.0L)	FUSED B(+)
11	-	-	-
12	50A	A146 10OR/WT	FUSED B(+)
13	-	-	-
14	40A	A2 12PK/BK	FUSED B(+)
15	50A	A148 10PK/WT	FUSED B(+)
16	15A	F142 18OR/DG	FUSED AUTO SHUT DOWN RELAY OUTPUT
16	15A	F142 18OR/DG	FUSED AUTO SHUT DOWN RELAY OUTPUT
17	-	-	-
18	15A	F62 18RD	FUSED B(+)
18	15A	F62 18RD	FUSED B(+)
19	10A	A7 14RD/BK	FUSED B(+)
20	-	-	-
21	15A	A17 18RD/BK	FUSED B(+)
22	-	-	-
23	-	-	-
24	20A	A62 16VT/LB (LHD)	FUSED B(+)
24	20A	A62 16VT/WT (RHD)	FUSEDB(+)
25	20A	A20 12RD/DB	FUSED B(+)
26	15A	F42 18DG/LG	FUSED AUTO SHUT DOWN RELAY OUTPUT
26	15A	F42 18DG/LG	FUSED AUTO SHUT DOWN RELAY OUTPUT
27	20A	A148 16LG/RD	FUSED B(+)
28	15A	T15 18YL/BR (4.0L)	FUSED TRANSMISSION CONTROL RELAY OUTPUT

TRANSMISSION CONTROL RELAY (GAS) CONNECTOR PIN OUTS FUNCTION REFERENCE

CAV	CIRCUIT	FUNCTION
30	A30 14RD/WT	FUSED B(+)
85	Z307 18BK (4.7L)	GROUND
85	K125 18WT/DB (4.0L)	GENERATOR SOURCE
86	K30 20PK/YL (LHD)	TRANSMISSION CONTROL RELAY CONTROL
86	K30 20PK (RHD)	TRANSMISSION CONTROL RELAY CONTROL
87	T16 14RD	TRANSMISSION CONTROL RELAY OUTPUT
87A	-	-
