Shift Cable: Installation
- Route cable through hole in floor pan.

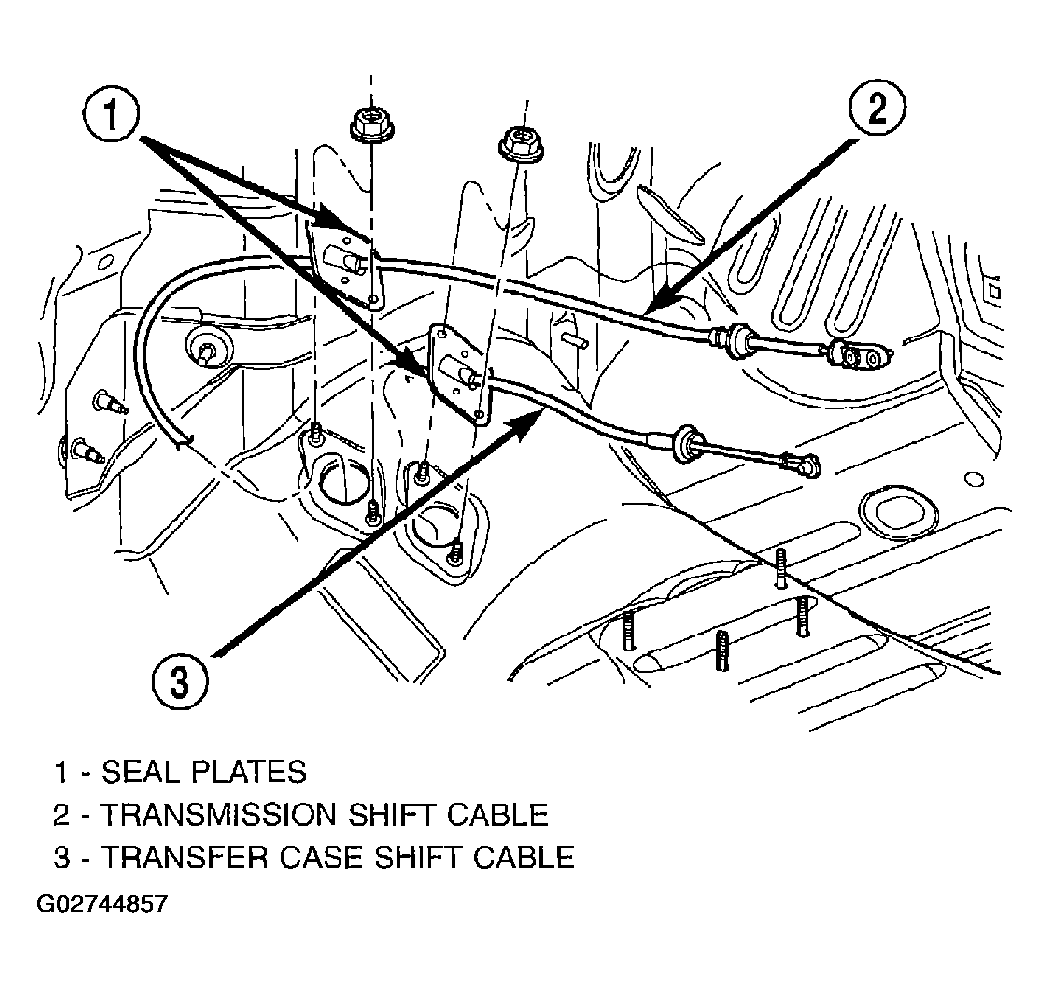

- Install seal plate to studs in floor pan.
- Install nuts to hold seal plate to floor pan (Figure ). Tighten nuts to 7 N.m (65 in. lbs.).

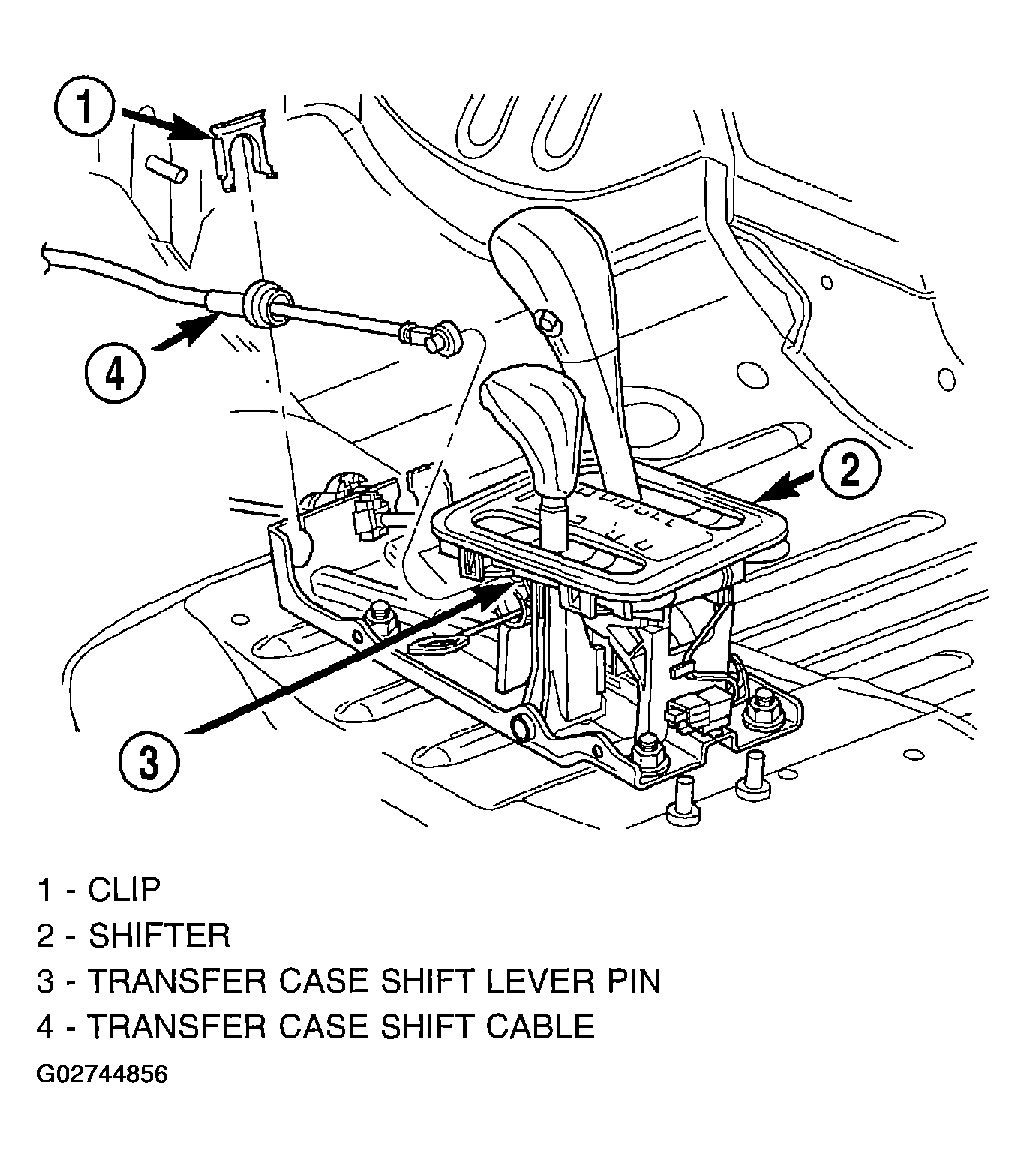

- Install the transfer case shift cable to the shifter assembly bracket. Seat cable in bracket and install clip (Figure ).
- Verify the transfer case shift lever (at console) is in the NEUTRAL position.
- Snap the cable onto the shift lever pin (Figure ).
- Raise the vehicle.
- Install the shift cable to the shift cable support bracket and install clip (Figure ).
- Verify that the transfer case is still in the NEUTRAL position.

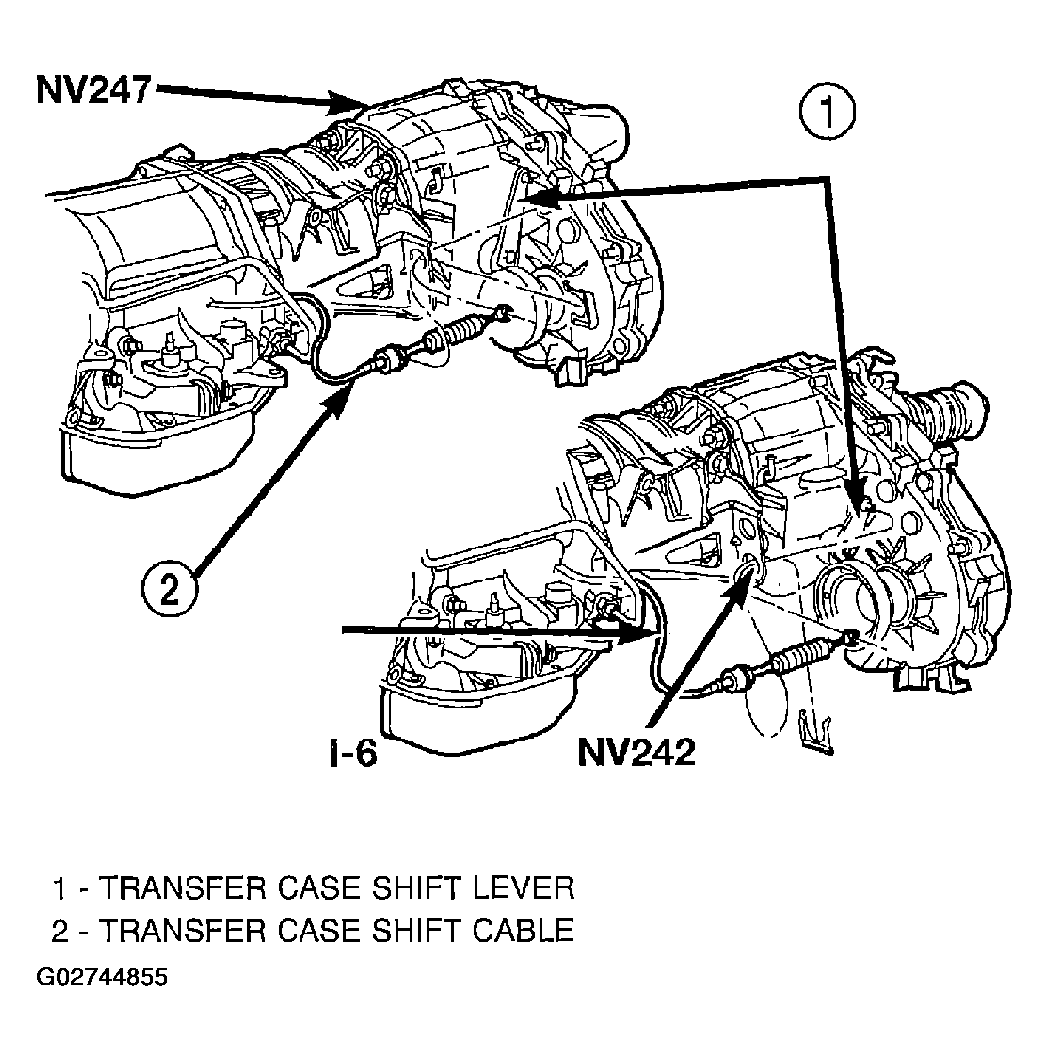

- Snap the shift cable onto the transfer case shift lever (Figure ).
- Lower vehicle.
- Verify correct transfer case operation in all ranges.
- Install any console parts removed for access to transfer case shift cable.
