Transmission Control Module Connector End View

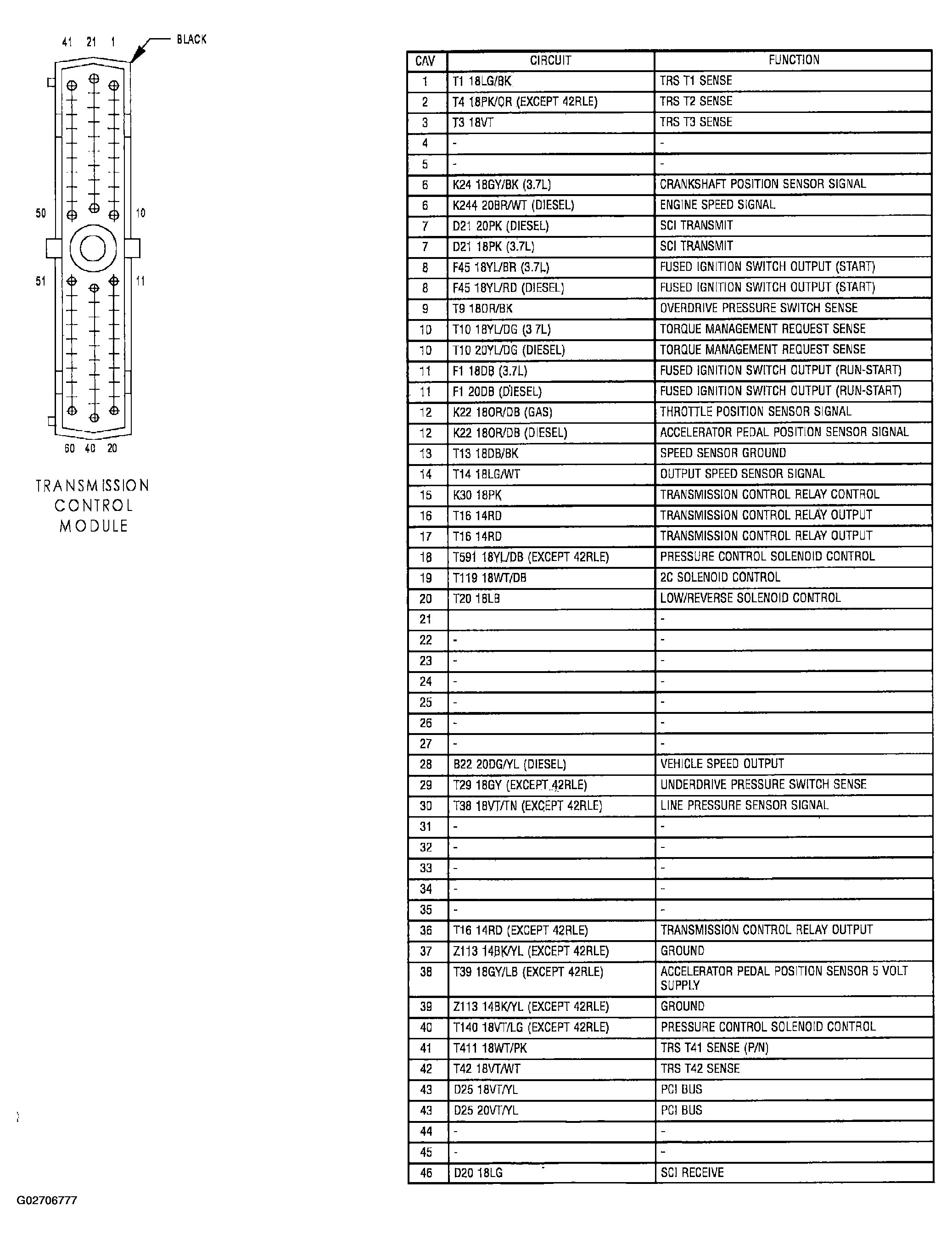

Fig 1: Transmission Control Module Connector End View
G02706777Courtesy of DAIMLERCHRYSLER CORP.

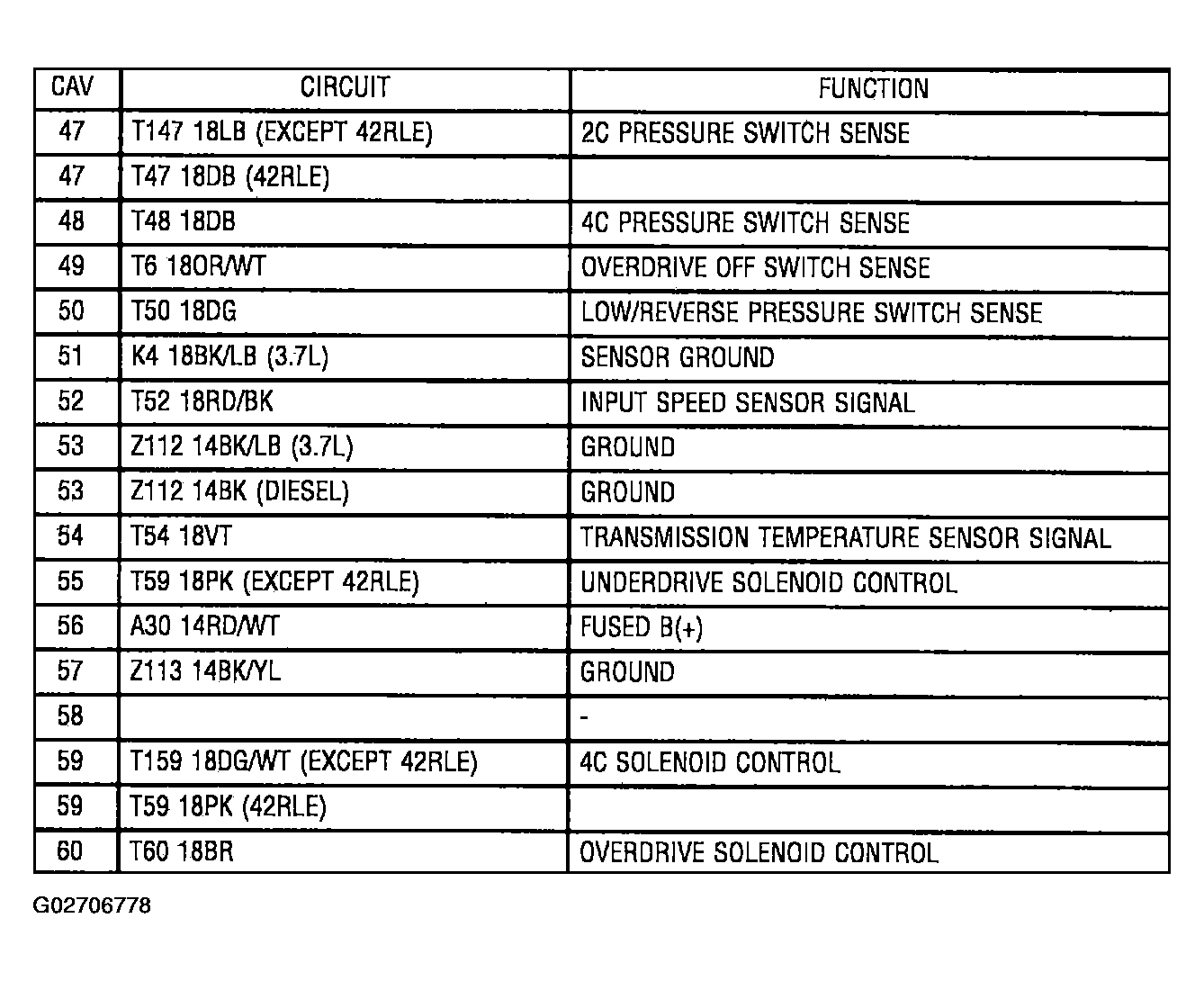

Fig 1: Transmission Control Module Connector End View
G02706778Courtesy of DAIMLERCHRYSLER CORP.
