Inter-Module And DRB Communication

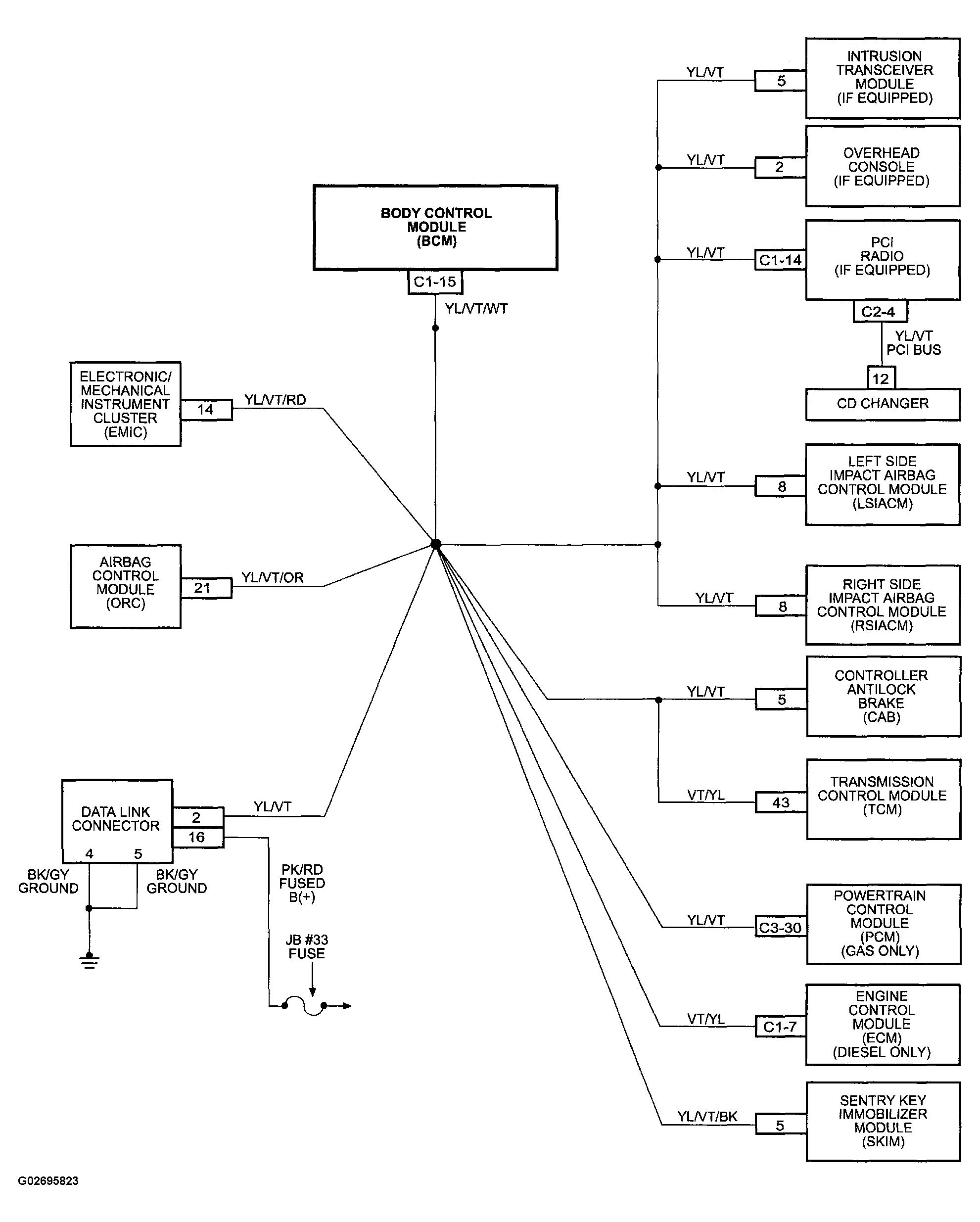

Fig 1: Inter-Module And DRB Communication Schematic Diagram
G02695823Courtesy of DAIMLERCHRYSLER CORP.
